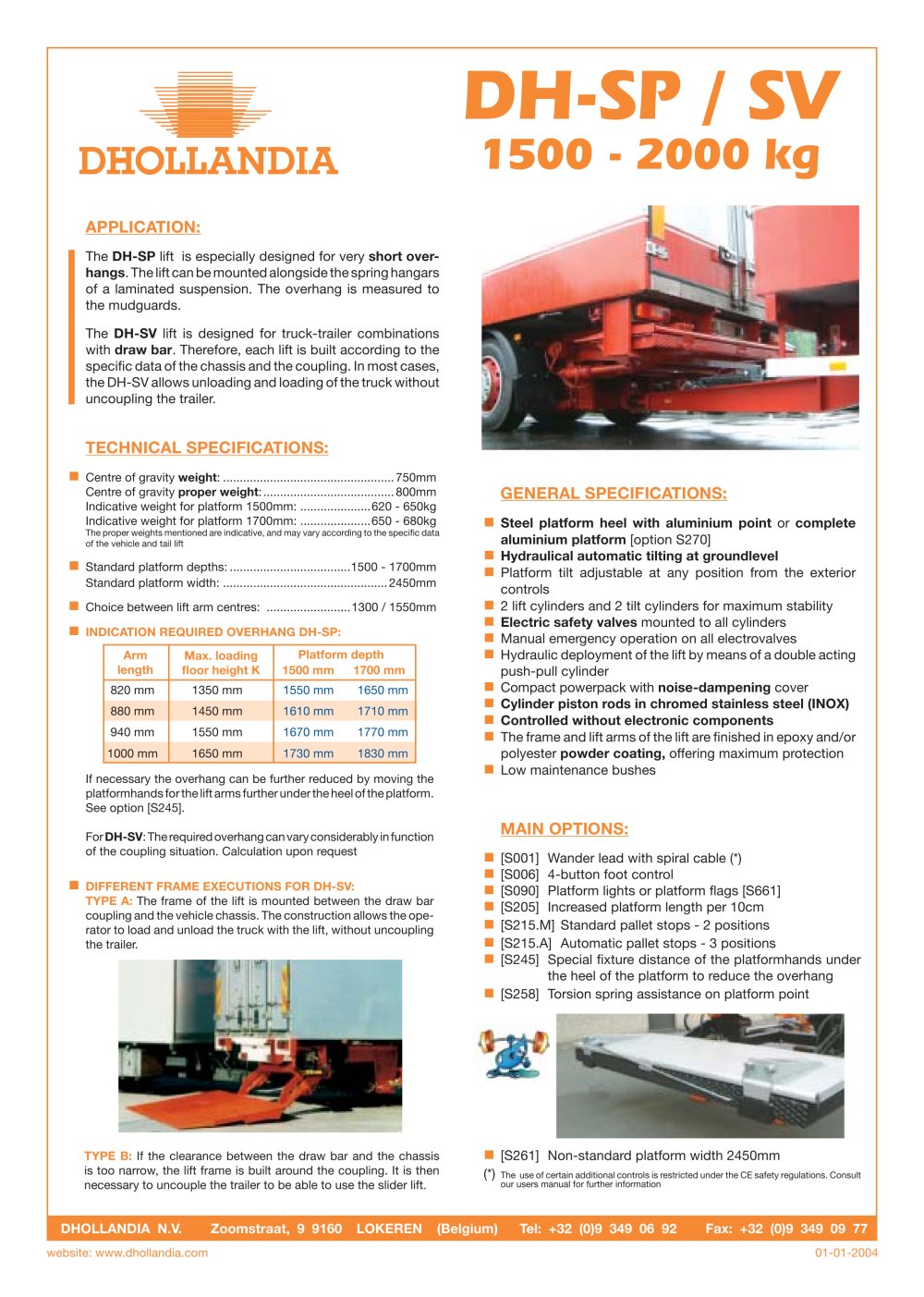

DH-SP / SV 1500 - 2000 kg website: www.dhollandia.com 01-01-2004 1500 mm 1700 mm 1350 mm 1450 mm 1550 mm 1650 mm 1550 mm 1610 mm 1670 mm 1730 mm 1650 mm 1710 mm 1770 mm 1830 mm 820 mm 880 mm 940 mm 1000 mm APPLICATION: The DH-SP lift is especially designed for very short overhangs. The lift can be mounted alongside the spring hangars of a laminated suspension. The overhang is measured to the mudguards. The DH-SV lift is designed for truck-trailer combinations with draw bar. Therefore, each lift is built according to the speciÞ c data of the chassis and the coupling. In most cases, the DH-SV allows unloading and loading of the truck without uncoupling the trailer. TECHNICAL SPECIFICATIONS: n Centre of gravity weight: ...................................................750mm Centre of gravity proper weight: .......................................800mm Indicative weight for platform 1500mm: .....................620 - 650kg Indicative weight for platform 1700mm: .....................650 - 680kg The proper weights mentioned are indicative, and may vary according to the speciÞ c data of the vehicle and tail lift n Standard platform depths: ....................................1500 - 1700mm Standard platform width: .................................................2450mm n Choice between lift arm centres: .........................1300 / 1550mm n INDICATION REQUIRED OVERHANG DH-SP: If necessary the overhang can be further reduced by moving the platformhands for the lift arms further under the heel of the platform. See option [S245]. For DH-SV: The required overhang can vary considerably in function of the coupling situation. Calculation upon request n DIFFERENT FRAME EXECUTIONS FOR DH-SV: TYPE A: The frame of the lift is mounted between the draw bar coupling and the vehicle chassis. The construction allows the operator to load and unload the truck with the lift, without uncoupling the trailer. Max. loading ß oor height K Arm length Platform depth GENERAL SPECIFICATIONS: n Steel platform heel with aluminium point or complete aluminium platform [option S270] n Hydraulical automatic tilting at groundlevel n Platform tilt adjustable at any position from the exterior controls n 2 lift cylinders and 2 tilt cylinders for maximum stability n Electric safety valves mounted to all cylinders n Manual emergency operation on all electrovalves n Hydraulic deployment of the lift by means of a double acting push-pull cylinder n Compact powerpack with noise-dampening cover n Cylinder piston rods in chromed stainless steel (INOX) n Controlled without electronic components n The frame and lift arms of the lift are Þ nished in epoxy and/or polyester powder coating, offering maximum protection n Low maintenance bushes MAIN OPTIONS: n [S001] Wander lead with spiral cable (*) n [S006] 4-button foot control n [S090] Platform lights or platform ß ags [S661] n [S205] Increased platform length per 10cm n [S215.M] Standard pallet stops - 2 positions n [S215.A] Automatic pallet stops - 3 positions n [S245] Special Þ xture distance of the platformhands under the heel of the platform to reduce the overhang n [S258] Torsion spring assistance on platform point n [S261] Non-standard platform width 2450mm (*) The use of certain additional controls is restricted under the CE safety regulations. Consult our users manual for further information TYPE B: If the clearance between the draw bar and the chassis is too narrow, the lift frame is built around the coupling. It is then necessary to uncouple the trailer to be able to use the slider lift. DHOLLANDIA N.V. Zoomstraat, 9 9160 LOKEREN (Belgium) Tel: +32 (0)9 349 06 92 Fax: +32 (0)9 349 09 77
