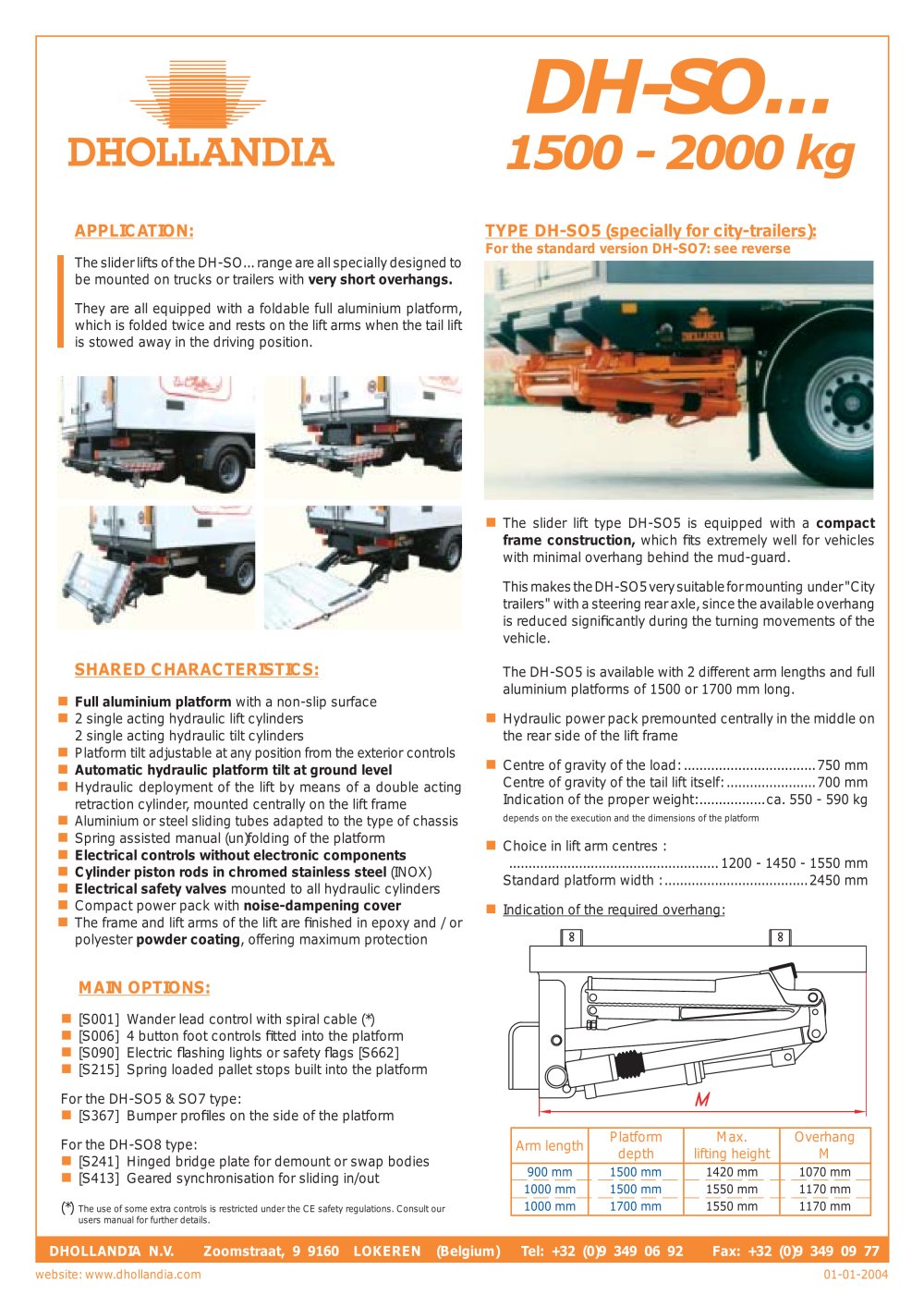

DH-SO... 1500 - 2000 kg website: www.dhollandia.com 01-01-2004 900 mm 1000 mm 1000 mm 1070 mm 1170 mm 1170 mm 1420 mm 1550 mm 1550 mm 1500 mm 1500 mm 1700 mm APPLICATION: The slider lifts of the DH-SO... range are all specially designed to be mounted on trucks or trailers with very short overhangs. They are all equipped with a foldable full aluminium platform, which is folded twice and rests on the lift arms when the tail lift is stowed away in the driving position. SHARED CHARACTERISTICS: n Full aluminium platform with a non-slip surface n 2 single acting hydraulic lift cylinders 2 single acting hydraulic tilt cylinders n Platform tilt adjustable at any position from the exterior controls n Automatic hydraulic platform tilt at ground level n Hydraulic deployment of the lift by means of a double acting retraction cylinder, mounted centrally on the lift frame n Aluminium or steel sliding tubes adapted to the type of chassis n Spring assisted manual (un)folding of the platform n Electrical controls without electronic components n Cylinder piston rods in chromed stainless steel (INOX) n Electrical safety valves mounted to all hydraulic cylinders n Compact power pack with noise-dampening cover n The frame and lift arms of the lift are fi nished in epoxy and / or polyester powder coating, offering maximum protection MAIN OPTIONS: n [S001] Wander lead control with spiral cable (*) n [S006] 4 button foot controls fi tted into the platform n [S090] Electric fl ashing lights or safety fl ags [S662] n [S215] Spring loaded pallet stops built into the platform For the DH-SO5 & SO7 type: n [S367] Bumper profi les on the side of the platform For the DH-SO8 type: n [S241] Hinged bridge plate for demount or swap bodies n [S413] Geared synchronisation for sliding in/out (*) The use of some extra controls is restricted under the CE safety regulations. Consult our users manual for further details. TYPE DH-SO5 (specially for city-trailers): For the standard version DH-SO7: see reverse n The slider lift type DH-SO5 is equipped with a compact frame construction, which fi ts extremely well for vehicles with minimal overhang behind the mud-guard. This makes the DH-SO5 very suitable for mounting under "City trailers" with a steering rear axle, since the available overhang is reduced signifi cantly during the turning movements of the vehicle. The DH-SO5 is available with 2 different arm lengths and full aluminium platforms of 1500 or 1700 mm long. n Hydraulic power pack premounted centrally in the middle on the rear side of the lift frame n Centre of gravity of the load: ..................................750 mm Centre of gravity of the tail lift itself: .......................700 mm Indication of the proper weight: .................ca. 550 - 590 kg depends on the execution and the dimensions of the platform n Choice in lift arm centres : ...................................................... 1200 - 1450 - 1550 mm Standard platform width : .....................................2450 mm n Indication of the required overhang: Arm length Max. lifting height Platform depth Overhang M DHOLLANDIA N.V. Zoomstraat, 9 9160 LOKEREN (Belgium) Tel: +32 (0)9 349 06 92 Fax: +32 (0)9 349 09 77
