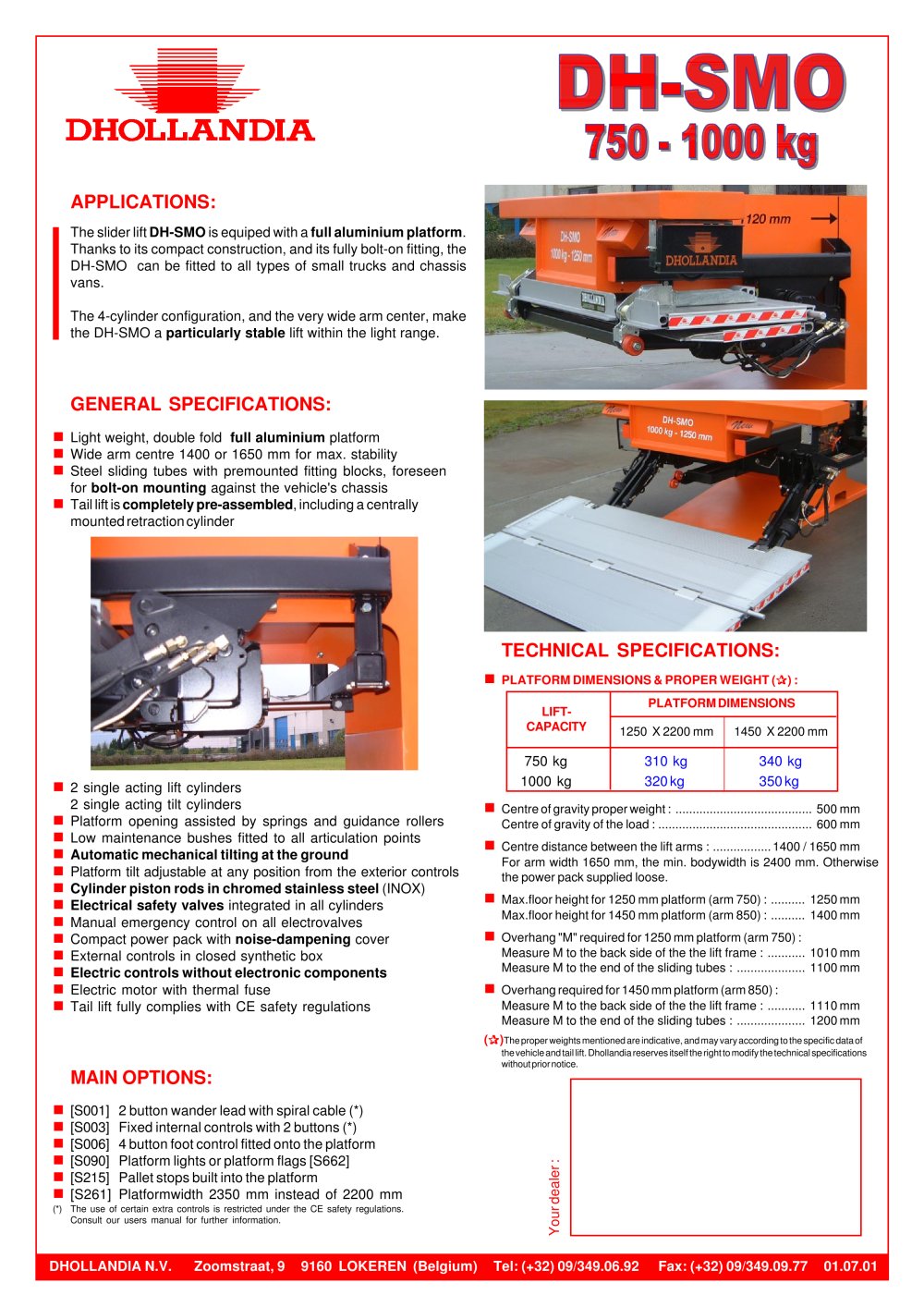

Text version of the page
310 kg
320 kg
340 kg
350 kg
750 kg
1000 kg
1250 X 2200 mm 1450 X 2200 mm
APPLICATIONS:
The slider lift DH-SMO is equiped with a full aluminium platform.
Thanks to its compact construction, and its fully bolt-on fitting, the
DH-SMO can be fitted to all types of small trucks and chassis
vans.
The 4-cylinder configuration, and the very wide arm center, make
the DH-SMO a particularly stable lift within the light range.
GENERAL SPECIFICATIONS:
MAIN OPTIONS:
.. [S001] 2 button wander lead with spiral cable (*)
.. [S003] Fixed internal controls with 2 buttons (*)
.. [S006] 4 button foot control fitted onto the platform
.. [S090] Platform lights or platform flags [S662]
.. [S215] Pallet stops built into the platform
.. [S261] Platformwidth 2350 mm instead of 2200 mm
(*) The use of certain extra controls is restricted under the CE safety regulations.
Consult our users manual for further information.
.. Light weight, double fold full aluminium platform
.. Wide arm centre 1400 or 1650 mm for max. stability
.. Steel sliding tubes with premounted fitting blocks, foreseen
for bolt-on mounting against the vehicle's chassis
.. Tail lift is completely pre-assembled, including a centrally
mounted retraction cylinder
.. 2 single acting lift cylinders
2 single acting tilt cylinders
.. Platform opening assisted by springs and guidance rollers
.. Low maintenance bushes fitted to all articulation points
.. Automatic mechanical tilting at the ground
.. Platform tilt adjustable at any position from the exterior controls
.. Cylinder piston rods in chromed stainless steel (INOX)
.. Electrical safety valves integrated in all cylinders
.. Manual emergency control on all electrovalves
.. Compact power pack with noise-dampening cover
.. External controls in closed synthetic box
.. Electric controls without electronic components
.. Electric motor with thermal fuse
.. Tail lift fully complies with CE safety regulations
TECHNICAL SPECIFICATIONS:
.. PLATFORM DIMENSIONS & PROPER WEIGHT (.) :
.. Centre of gravity proper weight : ........................................ 500 mm
Centre of gravity of the load : ............................................. 600 mm
.. Centre distance between the lift arms : ................. 1400 / 1650 mm
For arm width 1650 mm, the min. bodywidth is 2400 mm. Otherwise
the power pack supplied loose.
.. Max.floor height for 1250 mm platform (arm 750) : .......... 1250 mm
Max.floor height for 1450 mm platform (arm 850) : .......... 1400 mm
.. Overhang "M" required for 1250 mm platform (arm 750) :
Measure M to the back side of the the lift frame : ........... 1010 mm
Measure M to the end of the sliding tubes : .................... 1100 mm
.. Overhang required for 1450 mm platform (arm 850) :
Measure M to the back side of the the lift frame : ........... 1110 mm
Measure M to the end of the sliding tubes : .................... 1200 mm
