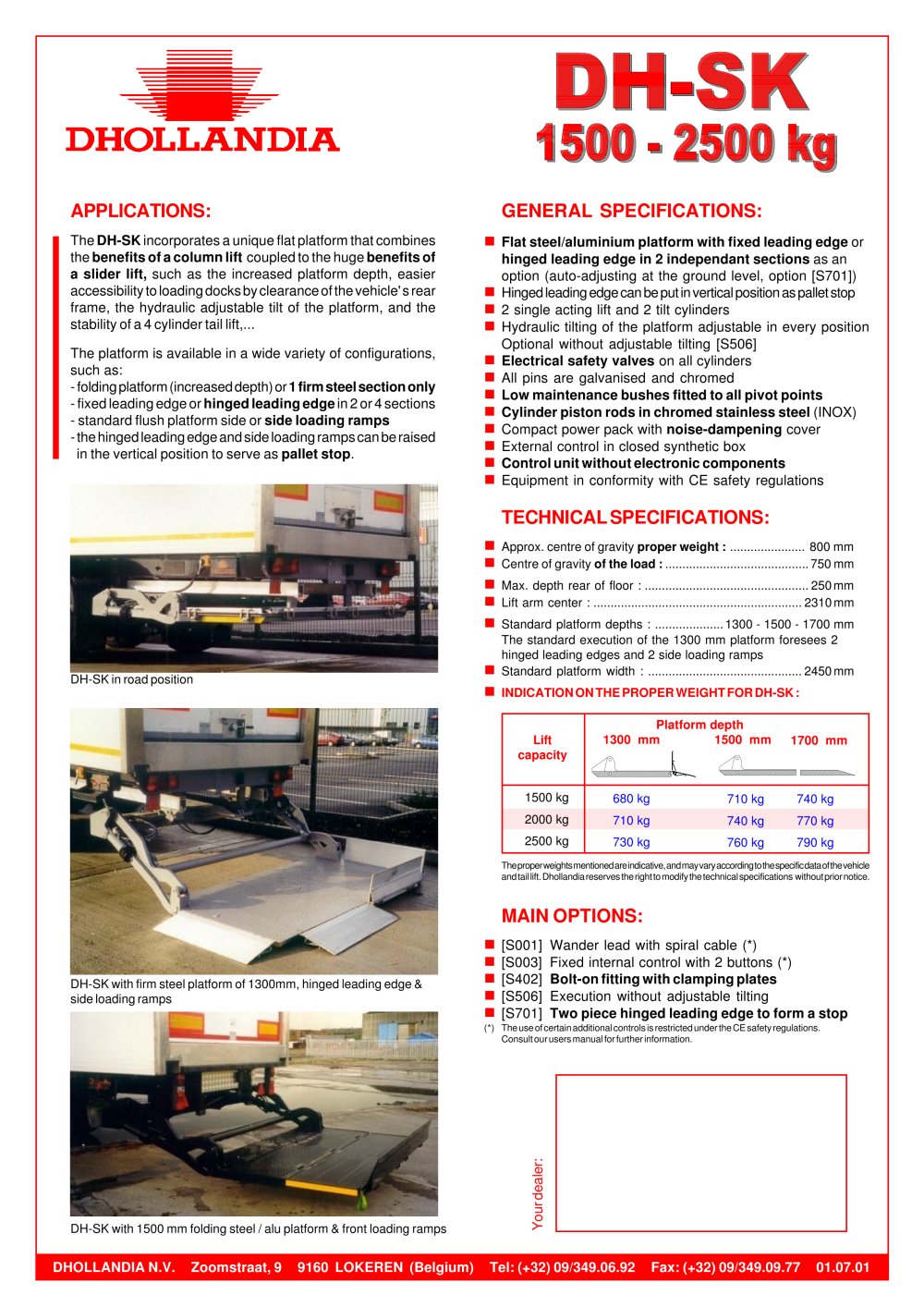

710 kg 740 kg 760 kg 1500 kg 2000 kg 2500 kg 680 kg 710 kg 730 kg 1300 mm 1500 mm 1700 mm 740 kg 770 kg 790 kg Your dealer: The DH-SK incorporates a unique flat platform that combines the benefits of a column lift coupled to the huge benefits of a slider lift, such as the increased platform depth, easier accessibility to loading docks by clearance of the vehicle' s rear frame, the hydraulic adjustable tilt of the platform, and the stability of a 4 cylinder tail lift,... The platform is available in a wide variety of configurations, such as: - folding platform (increased depth) or 1 firm steel section only - fixed leading edge or hinged leading edge in 2 or 4 sections - standard flush platform side or side loading ramps - the hinged leading edge and side loading ramps can be raised in the vertical position to serve as pallet stop. .. [S001] Wander lead with spiral cable (*) .. [S003] Fixed internal control with 2 buttons (*) .. [S402] Bolt-on fitting with clamping plates .. [S506] Execution without adjustable tilting .. [S701] Two piece hinged leading edge to form a stop (*) The use of certain additional controls is restricted under the CE safety regulations. Consult our users manual for further information. MAIN OPTIONS: APPLICATIONS: GENERAL SPECIFICATIONS: .. Flat steel/aluminium platform with fixed leading edge or hinged leading edge in 2 independant sections as an option (auto-adjusting at the ground level, option [S701]) .. Hinged leading edge can be put in vertical position as pallet stop .. 2 single acting lift and 2 tilt cylinders .. Hydraulic tilting of the platform adjustable in every position Optional without adjustable tilting [S506] .. Electrical safety valves on all cylinders .. All pins are galvanised and chromed .. Low maintenance bushes fitted to all pivot points .. Cylinder piston rods in chromed stainless steel (INOX) .. Compact power pack with noise-dampening cover .. External control in closed synthetic box .. Control unit without electronic components .. Equipment in conformity with CE safety regulations .. Approx. centre of gravity proper weight : ...................... 800 mm .. Centre of gravity of the load : .......................................... 750 mm .. Max. depth rear of floor : ................................................ 250 mm .. Lift arm center : ............................................................. 2310 mm .. Standard platform depths : .................... 1300 - 1500 - 1700 mm The standard execution of the 1300 mm platform foresees 2 hinged leading edges and 2 side loading ramps .. Standard platform width : ............................................. 2450 mm .. INDICATION ON THE PROPER WEIGHT FOR DH-SK : TECHNICAL SPECIFICATIONS: DHOLLANDIA N.V. Zoomstraat, 9 9160 LOKEREN (Belgium) Tel: (+32) 09/349.06.92 Fax: (+32) 09/349.09.77 01.07.01 Platform depth Lift capacity DH-SK in road position DH-SK with firm steel platform of 1300mm, hinged leading edge & side loading ramps DH-SK with 1500 mm folding steel / alu platform & front loading ramps The proper weights mentioned are indicative, and may vary according to the specific data of the vehicle and tail lift. Dhollandia reserves the right to modify the technical specifications without prior notice.
