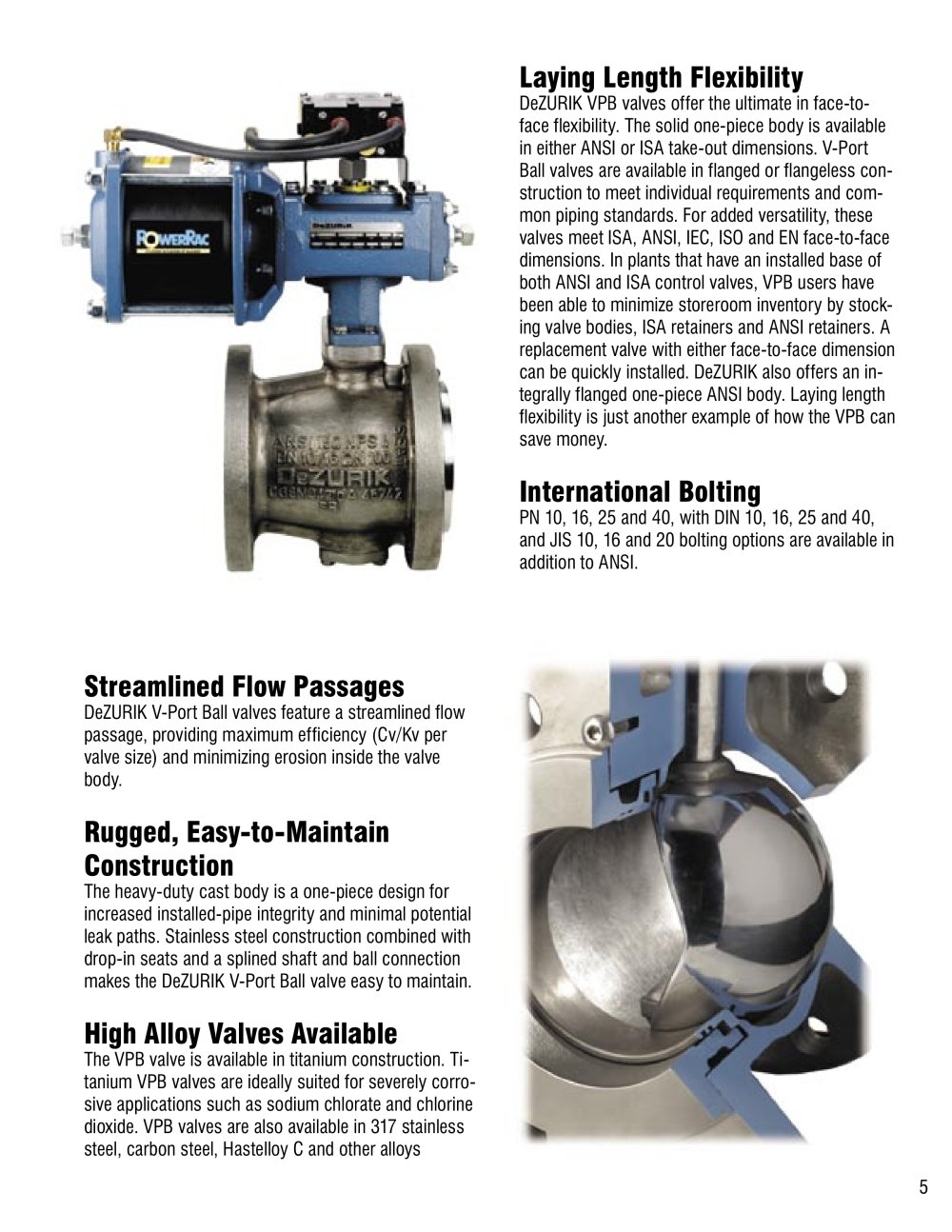

Laying Length Flexibility
DeZURIK VPB valves offer the ultimate in face-to-face flexibility. The solid one-piece body is available in either ANSI or ISA take-out dimensions. V-Port
Ball valves are available in flanged or flangeless con-
struction to meet individual requirements and com-
mon piping standards. For added versatility, these valves meet ISA, ANSI, IEC, ISO and EN face-to-face dimensions. In plants that have an installed base of both ANSI and ISA
control valves, VPB users have been able to minimize storeroom inventory by stock-
ing valve bodies, ISA retainers and ANSI retainers. A replacement valve with either face-to-face dimension can be quickly installed. DeZURIK also offers an in-
tegrally flanged one-piece ANSI body. Laying length flexibility is just another example of how the VPB can save money.
PN 10, 16, 25 and 40, with DIN 10, 16, 25 and 40, and JIS 10, 16 and 20 bolting options are available in addition to ANSI.
Streamlined Flow Passages
DeZURIK V-Port Ball valves feature a streamlined flow passage, providing maximum efficiency (Cv/Kv per valve size) and minimizing erosion inside the valve body.
Rugged, Easy-to-Maintain Construction
The heavy-duty cast body is a one-piece design for increased installed-pipe integrity and minimal potential leak paths. Stainless steel construction combined with drop-in seats and a splined shaft and ball connection makes the DeZURIK V-Port Ball valve easy to maintain.
High Alloy Valves Available
The VPB valve is available in titanium construction. Ti-
tanium VPB valves are ideally suited for severely corro-
sive applications such as sodium chlorate and chlorine dioxide. VPB valves are also available in 317 stainless steel, carbon steel, Hastelloy C and other alloys 5
