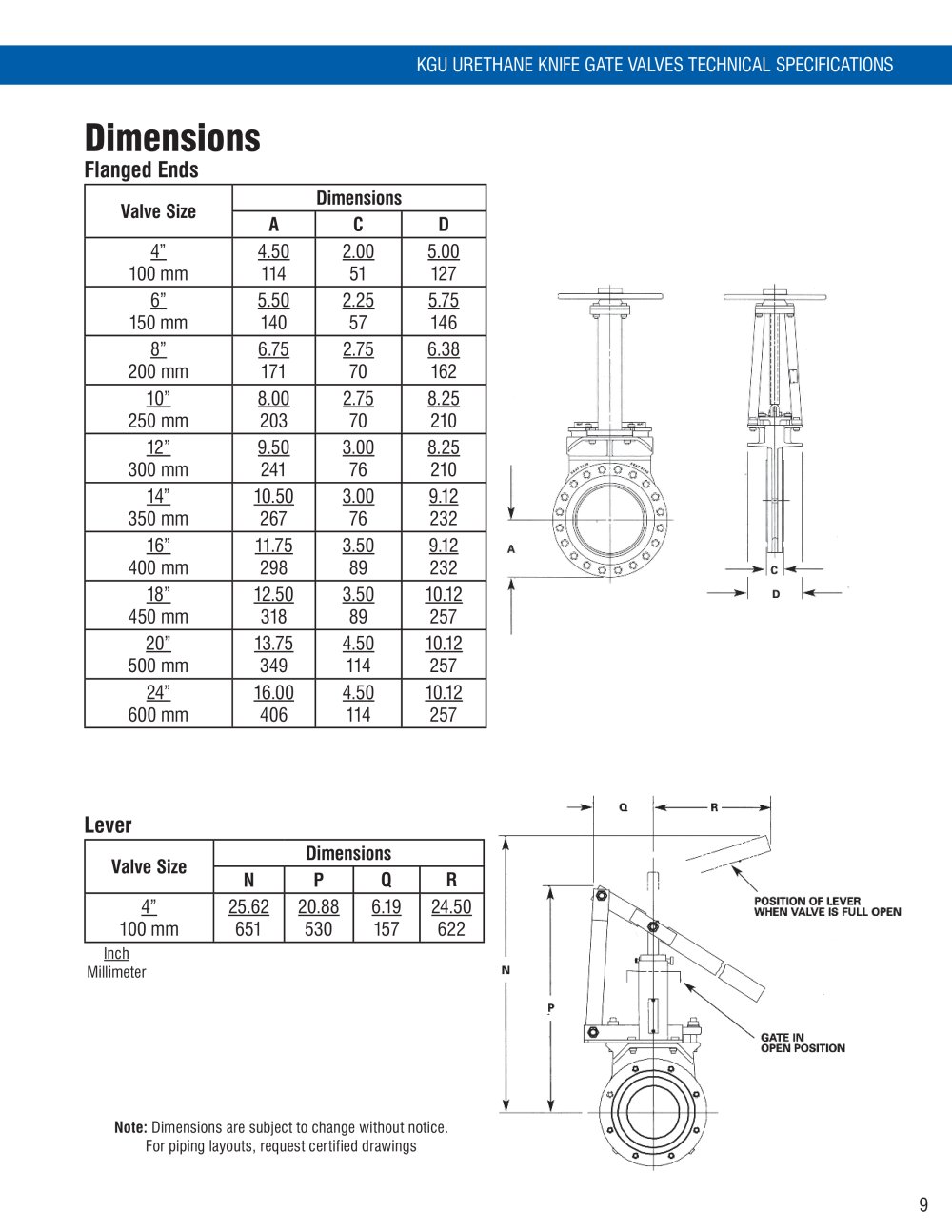

Dimensions

Flanged Ends

Valve SizeDimensionsACD 4”100 mm4.501142.00515.001276”150 mm5.501402.25575.751468”200 mm6.751712.75706.3816210”250 mm8.002032.75708.2521012”300 mm9.502413.00768.2521014”350 mm10.502673.00769.1223216”400 mm11.752983.50899.1223218”450 mm12.503183.508910.1225720”500 mm13.753494.5011410.1225724”600 mm16.004064.5011410.12257

Lever

Valve SizeDimensionsNPQR 4”100 mm25.6265120.885306.1915724.50622
InchMillimeter Note: Dimensions are subject to change without notice.For piping layouts, request certified drawings 9
