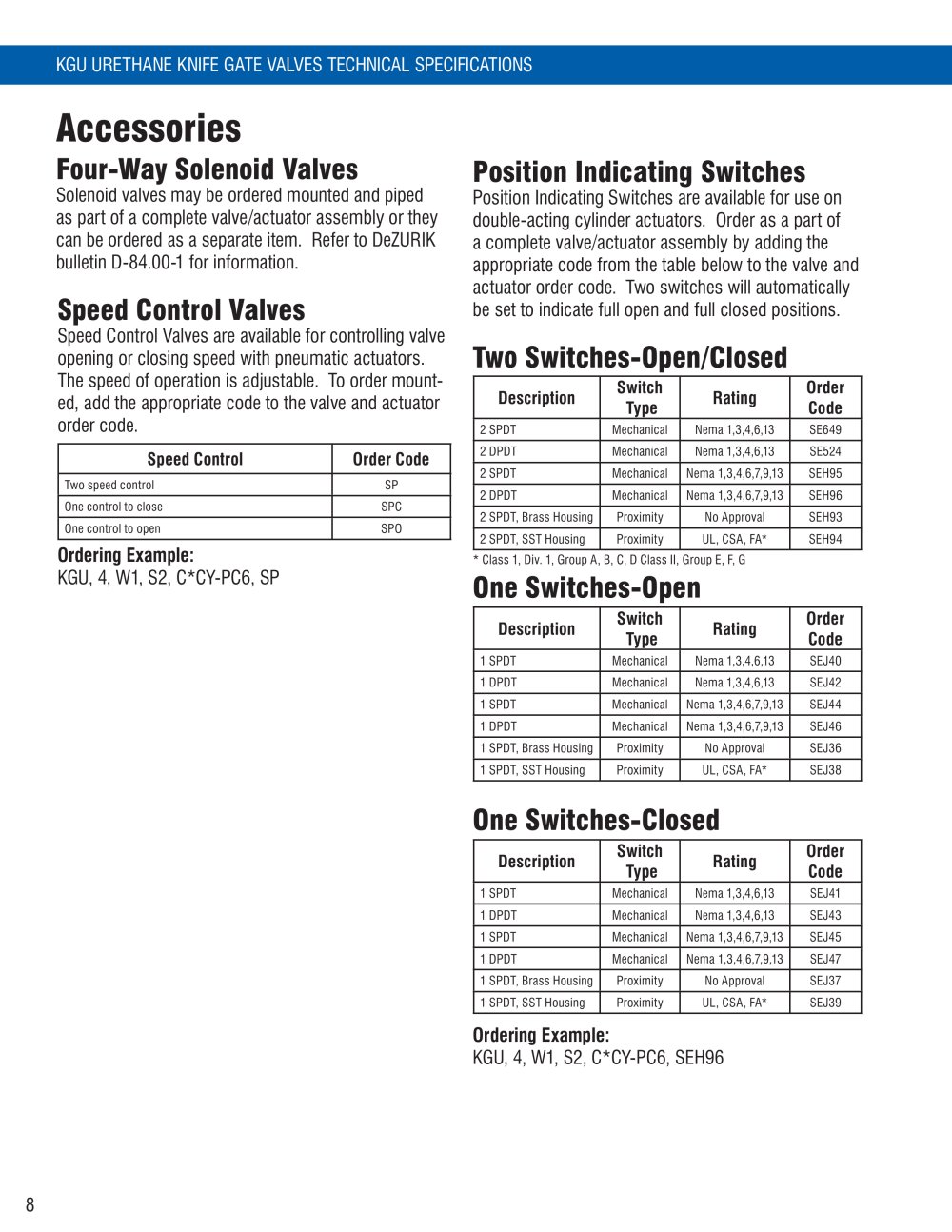

Accessories

Four-Way Solenoid valves manufacturer

Solenoid valves may be ordered mounted and piped as part of a complete valve/actuator assembly or they can be ordered as a separate item. Refer to DeZURIK bulletin D-84.00-1 for information.

Position Indicating Switches

Position Indicating Switches are available for use on double-acting cylinder industrial actuators. Order as a part of a complete valve/actuator assembly by adding the appropriate code from the table below to the valve and actuator order code. Two switches will automatically be set to indicate full open and full closed positions.

Speed Industrial control valves

Speed control Valves are available for controlling valve opening or closing speed with industrial pneumatic actuators. The speed of operation is adjustable. To order mount- ed, add the appropriate code to the valve and actuator order code.

Two Switches-Open/Closed

DescriptionSwitch TypeRatingOrder Code 2 SPDTMechanicalNema 1,3,4,6,13SE6492 DPDTMechanicalNema 1,3,4,6,13SE5242 SPDTMechanicalNema 1,3,4,6,7,9,13SEH952 DPDTMechanicalNema 1,3,4,6,7,9,13SEH962 SPDT, Brass HousingProximityNo ApprovalSEH932 SPDT, SST HousingProximityUL, CSA, FA*SEH94 Speed ControlOrder Code Two speed controlSPOne control to closeSPCOne control to openSPO Ordering Example:
* Class 1, Div. 1, Group A, B, C, D Class II, Group E, F, G KGU, 4, W1, S2, C*CY-PC6, SP

One Switches-Open

DescriptionSwitch TypeRatingOrder Code 1 SPDTMechanicalNema 1,3,4,6,13SEJ401 DPDTMechanicalNema 1,3,4,6,13SEJ421 SPDTMechanicalNema 1,3,4,6,7,9,13SEJ44 1 DPDTMechanicalNema 1,3,4,6,7,9,13SEJ461 SPDT, Brass HousingProximityNo ApprovalSEJ361 SPDT, SST HousingProximityUL, CSA, FA*SEJ38

One Switches-Closed

DescriptionSwitch TypeRatingOrder Code 1 SPDTMechanicalNema 1,3,4,6,13SEJ411 DPDTMechanicalNema 1,3,4,6,13SEJ431 SPDTMechanicalNema 1,3,4,6,7,9,13SEJ451 DPDTMechanicalNema 1,3,4,6,7,9,13SEJ471 SPDT, Brass HousingProximityNo ApprovalSEJ371 SPDT, SST HousingProximityUL, CSA, FA*SEJ39 Ordering Example: KGU, 4, W1, S2, C*CY-PC6, SEH96 8
