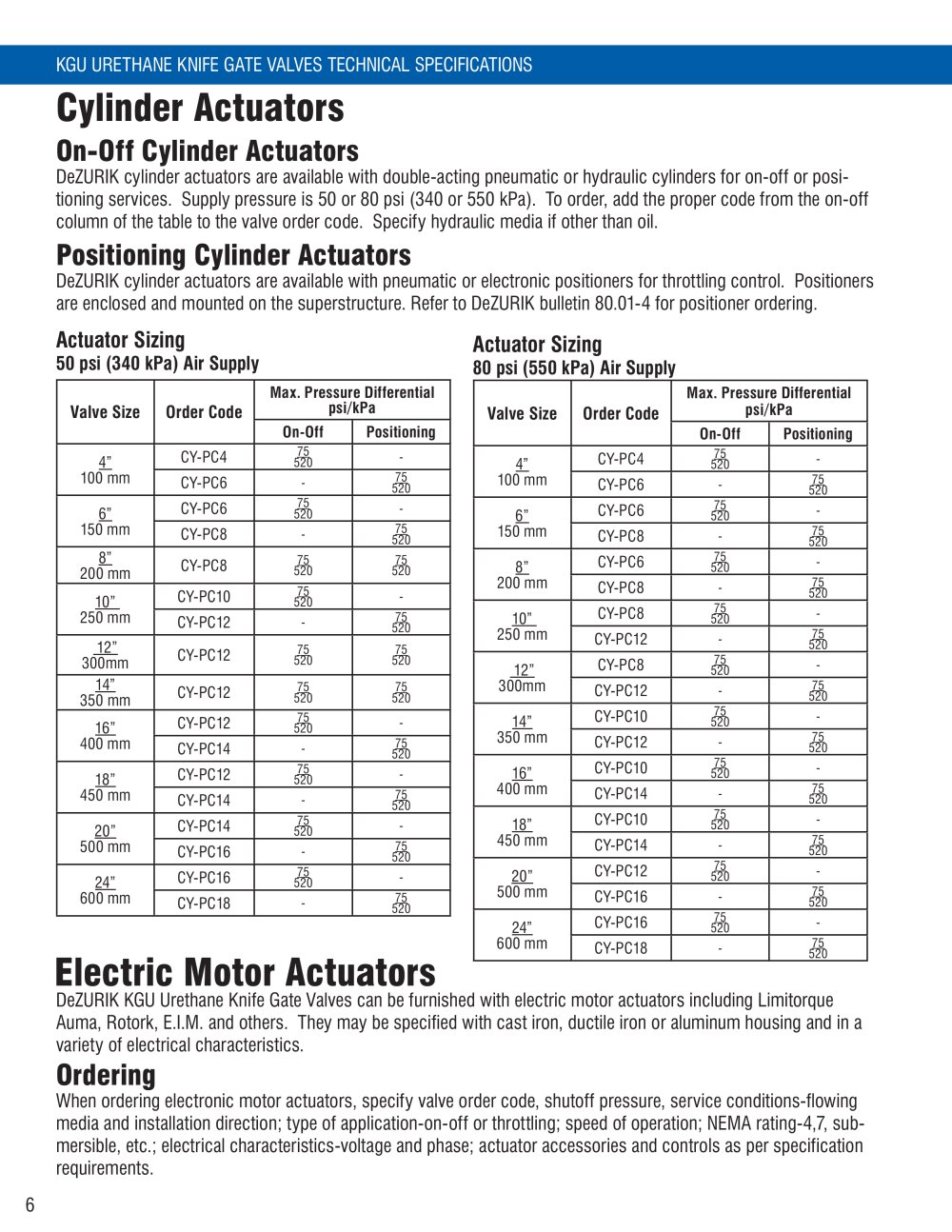

Cylinder Actuators

On-Off Cylinder Actuators

DeZURIK cylinder actuators are available with double-acting pneumatic or hydraulic cylinders manufacturer for on-off or posi-tioning services. Supply pressure is 50 or 80 psi (340 or 550 kPa). To order, add the proper code from the on-off column of the table to the valve order code. Specify hydraulic media if other than oil.

Positioning Cylinder Actuators

DeZURIK cylinder actuators are available with pneumatic or electronic positioners for throttling control. Positioners are enclosed and mounted on the superstructure. Refer to DeZURIK bulletin 80.01-4 for positioner ordering.

Actuator Sizing Actuator Sizing

50 psi (340 kPa) Air Supply 80 psi (550 kPa) Air Supply

Max. Pressure Differentialpsi/kPaOn-OffPositioning Max. Pressure Differentialpsi/kPaOn-OffPositioning

Valve SizeOrder Code Valve SizeOrder Code

75520- 4”100 mmCY-PC4
75520- 4”100 mmCY-PC4 CY-PC6
-75520 CY-PC6
-75520 75520- 6”150 mmCY-PC6
75520- 6”150 mmCY-PC6 CY-PC8
-75520 CY-PC8
-75520 8”200 mmCY-PC8
7552075520 75520- 8”200 mmCY-PC6
75520- CY-PC8
-75520 10” 250 mmCY-PC10
75520- CY-PC12
-75520 10” 250 mmCY-PC8 12”300mmCY-PC12
-75520 7552075520 CY-PC12
75520- 12”300mmCY-PC8 14”350 mmCY-PC12
7552075520 CY-PC12
-75520 75520- 75520- 16”400 mmCY-PC12 14”350 mmCY-PC10 CY-PC14
-75520 CY-PC12
-75520 75520- 75520- 18”450 mmCY-PC12 16”400 mmCY-PC10 CY-PC14
-75520 CY-PC14
-75520 75520- 75520- 20”500 mmCY-PC14 18”450 mmCY-PC10 CY-PC16
-75520 CY-PC14
-75520 75520- 75520- 24”600 mmCY-PC16 20”500 mmCY-PC12 CY-PC18
-75520 CY-PC16
-75520 75520- 24”600 mmCY-PC16 CY-PC18
-75520

Electric Motor Actuators

DeZURIK KGU Urethane Knife Gate valves can be furnished with electric motor actuators including Limitorque Auma, Rotork, E.I.M. and others. They may be specified with cast iron, ductile iron or aluminum housing and in a variety of electrical characteristics.

Ordering

When ordering electronic motor actuators, specify valve order code, shutoff pressure, service conditions-flowing media and installation direction; type of application-on-off or throttling; speed of operation; NEMA rating-4,7, sub- mersible, etc.; electrical characteristics-voltage and phase; actuator accessories and controls as per specification requirements. 6
