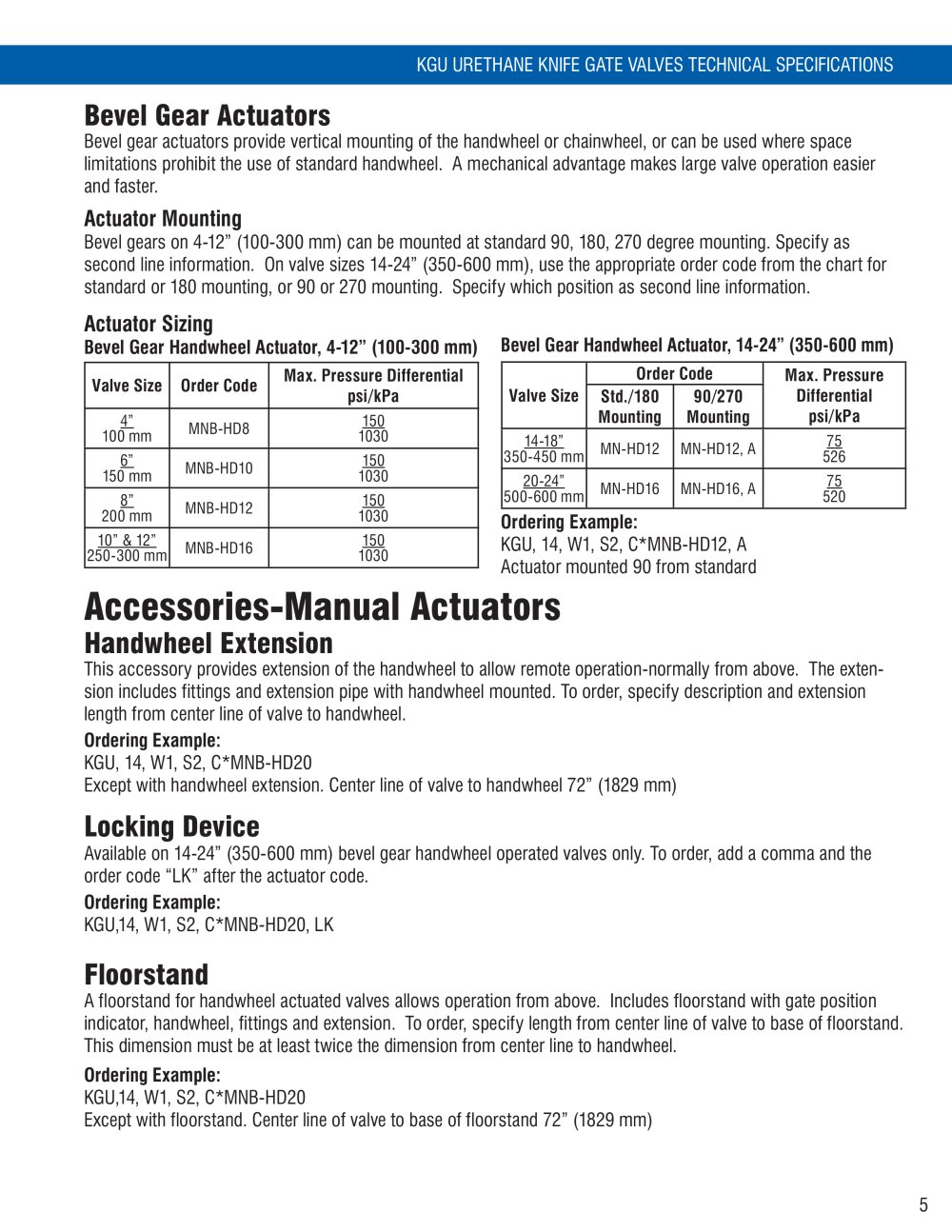

KGU URETHANE KNIFE GATE VALVES TECHNICAL SPECIFICATIONS

Bevel Gear Actuators

Bevel gear actuators provide vertical mounting of the handwheel or chainwheel, or can be used where space limitations prohibit the use of standard handwheel. A mechanical advantage makes large valve operation easier and faster.

Actuator Mounting

Bevel gears on 4-12” (100-300 mm) can be mounted at standard 90, 180, 270 degree mounting. Specify as second line information. On valve sizes 14-24” (350-600 mm), use the appropriate order code from the chart for standard or 180 mounting, or 90 or 270 mounting. Specify which position as second line information.

Actuator Sizing

Bevel Gear Handwheel Actuator, 4-12” (100-300 mm) Bevel Gear Handwheel Actuator, 14-24” (350-600 mm)
Valve SizeOrder CodeMax. Pressure Differentialpsi/kPa Valve SizeOrder CodeMax. Pressure Differentialpsi/kPaStd./180 Mounting90/270 Mounting 4”100 mmMNB-HD815010306”150 mmMNB-HD1015010308”200 mmMNB-HD12150103010” & 12”250-300 mmMNB-HD161501030 14-18”350-450 mmMN-HD12MN-HD12, A7552620-24”500-600 mmMN-HD16MN-HD16, A75520 Ordering Example: KGU, 14, W1, S2, C*MNB-HD12, A Actuator mounted 90 from standard

Accessories-Manual Actuators

Handwheel Extension

Ordering Example: This accessory provides extension of the handwheel to allow remote operation-normally from above. The exten- sion includes fittings and extension pipe with handwheel mounted. To order, specify description and extension length from center line of valve to handwheel. KGU, 14, W1, S2, C*MNB-HD20 Except with handwheel extension. Center line of valve to handwheel 72” (1829 mm)Available on 14-24” (350-600 mm) bevel gear handwheel operated valves only. To order, add a comma and the order code “LK” after the actuator code.

Locking device

KGU,14, W1, S2, C*MNB-HD20, LK Ordering Example:

Floorstand

Ordering Example: A floorstand for handwheel actuated valves allows operation from above. Includes floorstand with gate position indicator, handwheel, fittings and extension. To order, specify length from center line of valve to base of floorstand. This dimension must be at least twice the dimension from center line to handwheel. KGU,14, W1, S2, C*MNB-HD20 Except with floorstand. Center line of valve to base of floorstand 72” (1829 mm) 5
