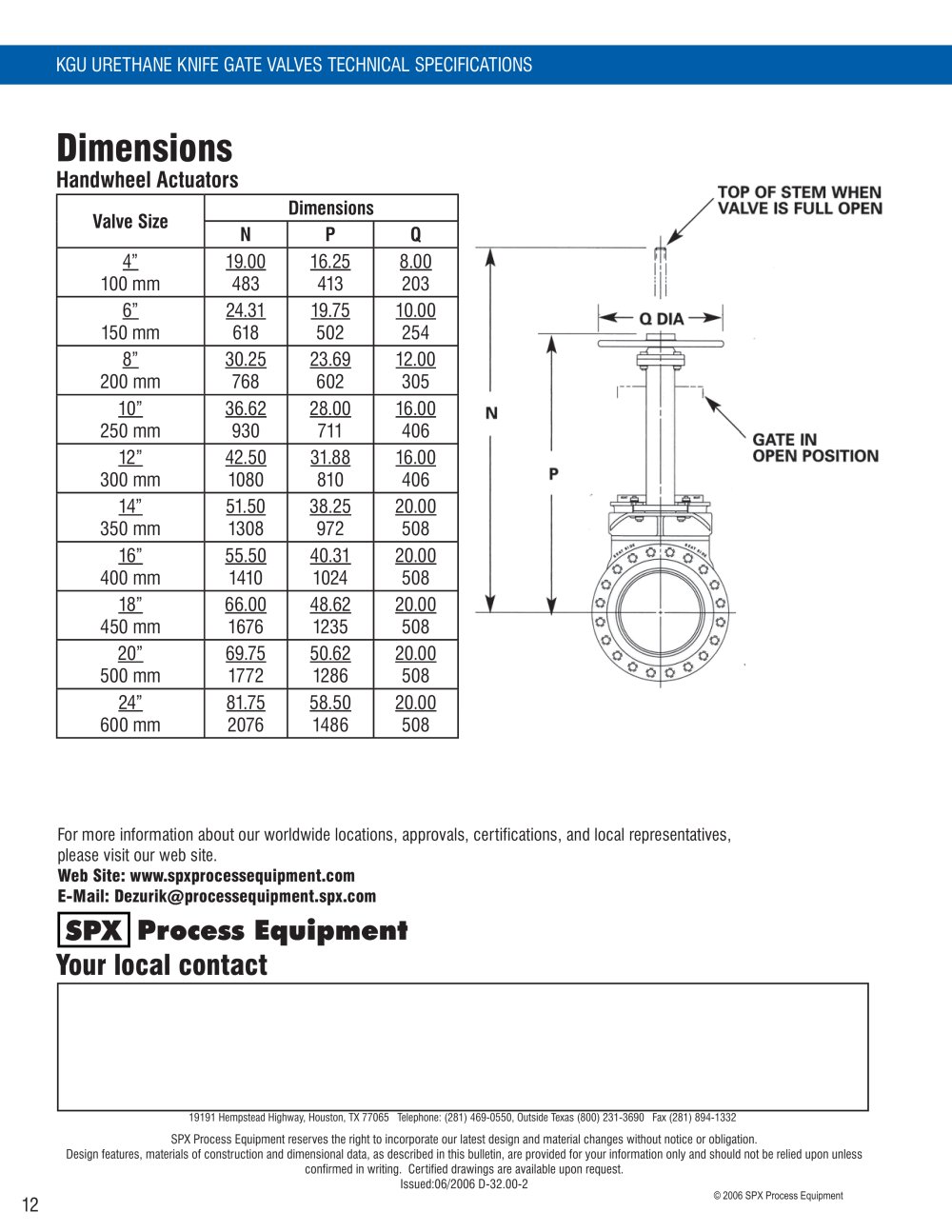

KGU URETHANE KNIFE GATE VALVES TECHNICAL SPECIFICATIONS
Dimensions
Handwheel Actuators
TOP OF STEM WHEN VALVE IS FULL OPEN
Valve Size
Dimensions
NP Q
4"
19.00
16.25
8.00
100 mm
483
413
203
6"
24.31
19.75
10.00
150 mm
618
502
254
8"
30.25
23.69
12.00
200 mm
768
602
305
10"
36.62
28.00
16.00
250 mm
930
711
406
12"
42.50
31.88
16.00
300 mm
1080
810
406
14"
51.50
38.25
20.00
350 mm
1308
972
508
16"
55.50
40.31
20.00
400 mm
1410
1024
508
18"
66.00
48.62
20.00
450 mm
1676
1235
508
20"
69.75
50.62
20.00
500 mm
1772
1286
508
24"
81.75
58.50
20.00
600 mm
2076
1486
508
GATE IN
OPEN POSITION
