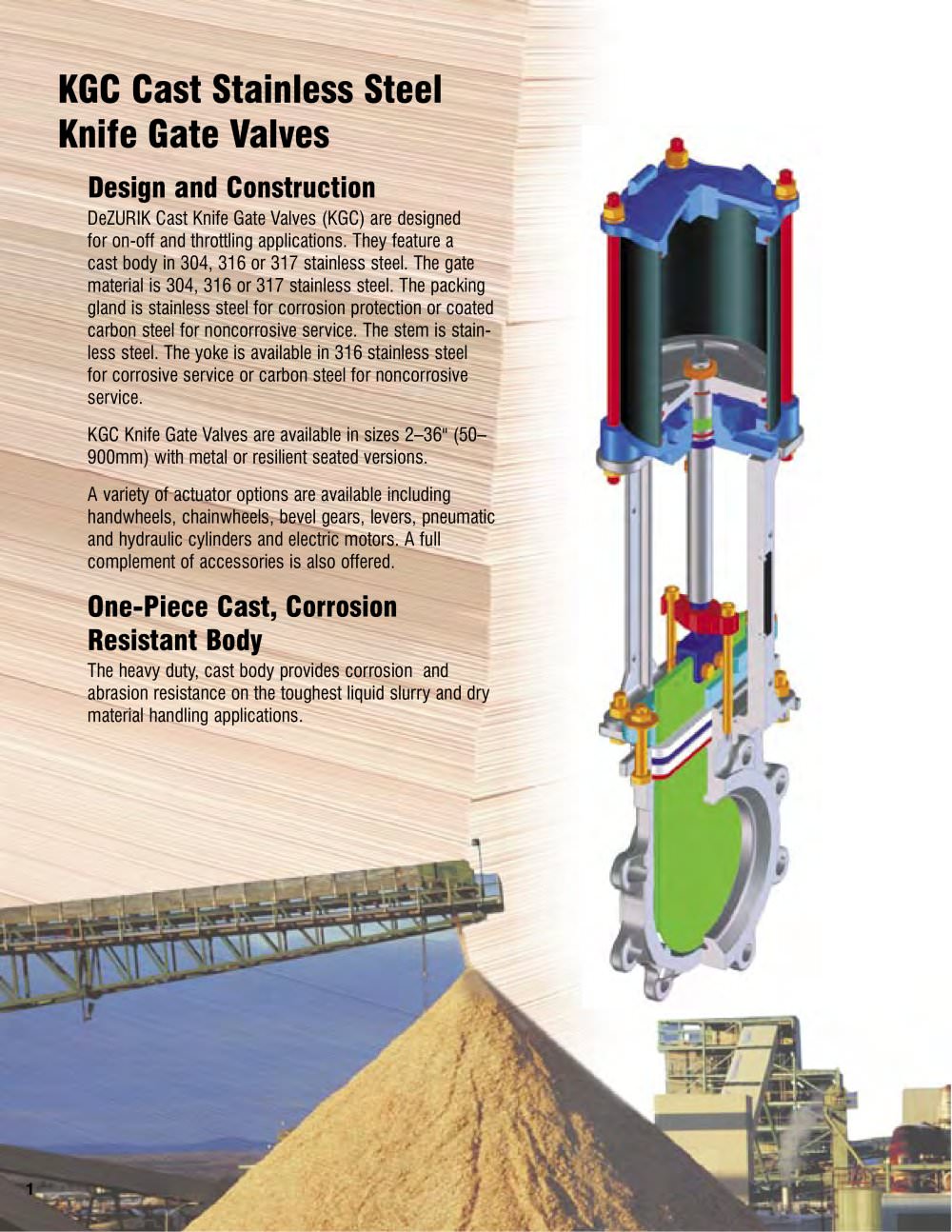

Design and Construction
DeZURIK Cast Knife
Gate valves (KGC) are designed for on-off and throttling applications. They feature a cast body in 304, 316 or 317 stainless steel. The gate material is 304, 316 or 317 stainless steel. The packing gland is stainless steel for corrosion protection or coated carbon steel for noncorrosive service. The stem is stain-
less steel. The yoke is available in 316 stainless steel for corrosive service or carbon steel for noncorrosive service. KGC Knife Gate Valves are available in sizes 2–36" (50–900mm) with metal or resilient seated versions.A variety of actuator options are available including handwheels, chainwheels,
bevel gears, levers, pneumatic and
industrial hydraulic cylinders and
electric motors. A full complement of accessories is also offered.
One-Piece Cast, Corrosion Resistant Body
The heavy duty, cast body provides corrosion and abrasion resistance on the toughest liquid slurry and dry
material handling applications.
1
