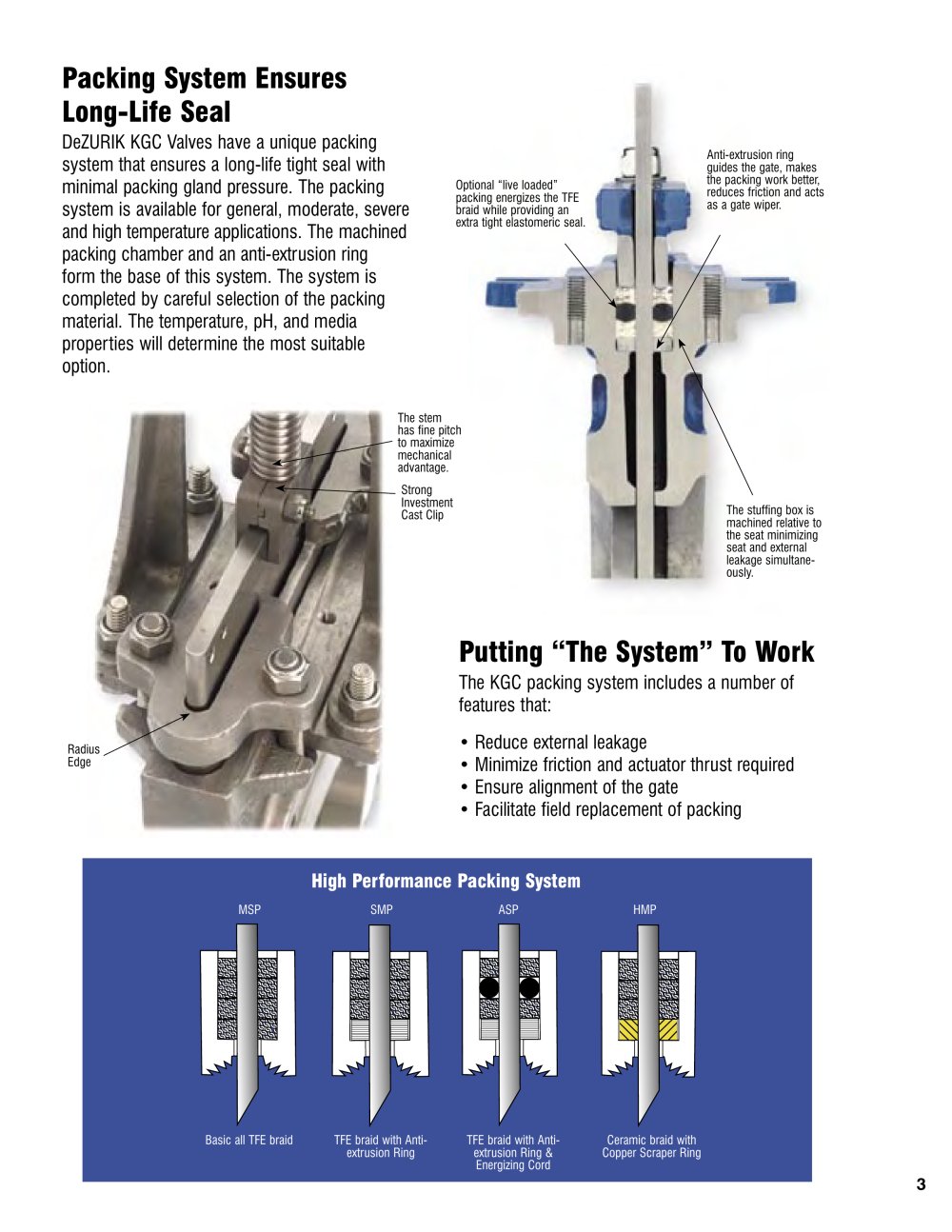

DeZURIK KGC Valves have a unique packing system that ensures a long-life tight seal with minimal packing gland pressure. The packing system is available for general, moderate, severe and high temperature applications. The machined packing chamber and an anti-extrusion ring form the base of this system. The system is completed by careful selection of the packing material. The temperature, pH, and media properties will determine the most suitable option.
Anti-extrusion ring guides the gate, makes the packing work better, reduces friction and acts as a gate wiper.
The stuffing box is machined relative to the seat minimizing seat and external leakage simultane-
ously.
Optional “live loaded” packing energizes the TFE braid while providing an extra tight elastomeric seal. The stem has fine pitch to maximize mechanical advantage.Strong Investment Cast Clip
Putting “The System” To Work
The KGC packing system includes a number of features that:• Reduce external leakage • Minimize friction and actuator thrust required • Ensure alignment of the gate • Facilitate field replacement of packing
Radius Edge
High Performance Packing System
MSP SMP ASP HMP
Basic all TFE braidTFE braid with Anti-extrusion RingTFE braid with Anti-extrusion Ring & Energizing CordCeramic braid with Copper Scraper Ring
3
