Magnetic Technologies for the Oil and Gas Industry

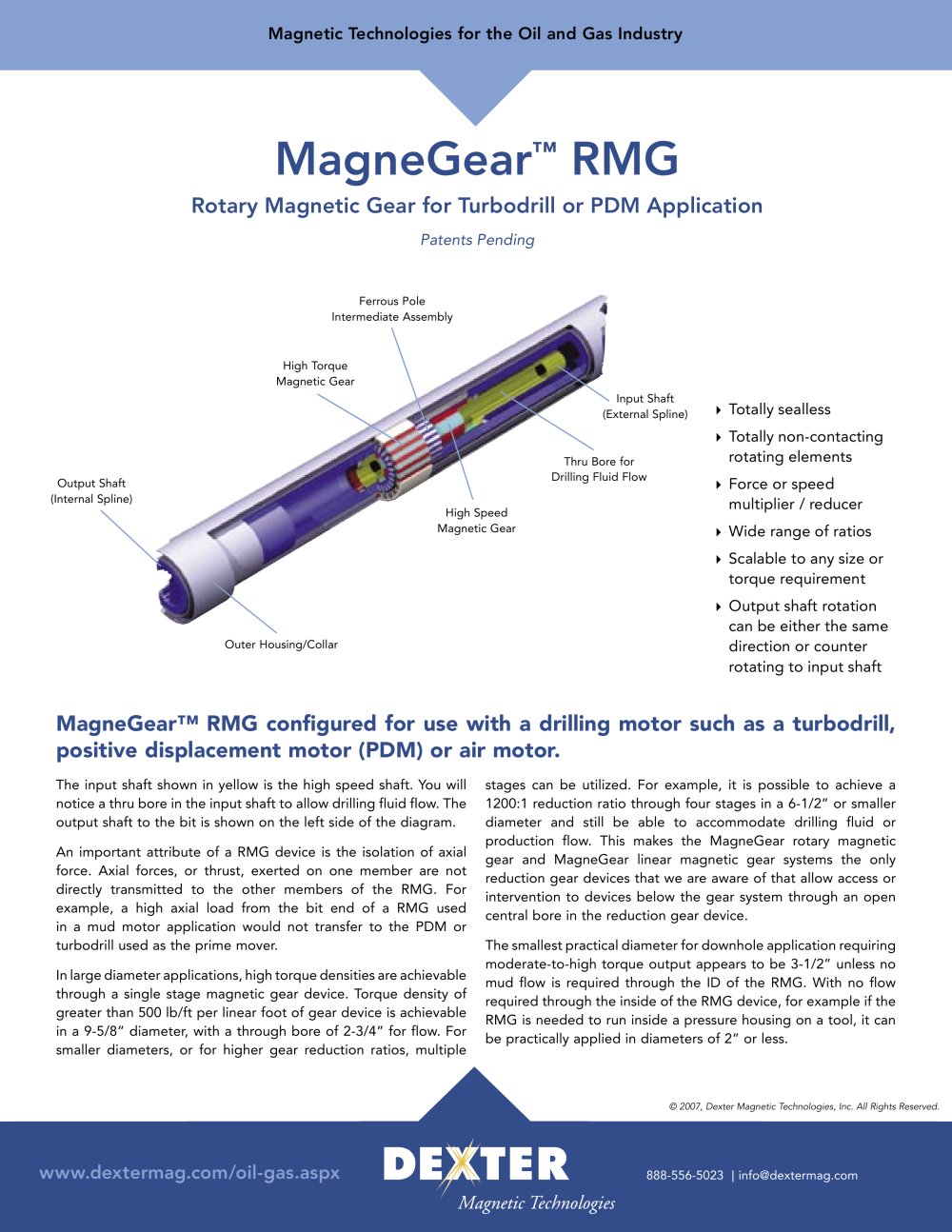

MagneGear™ RMG
Rotary Magnetic Gear for Turbodrill or PDM Application
Patents Pending
Ferrous Pole Intermediate Assembly
High Torque Magnetic Gear
\ Input Shaft (External Spline)
Totally sealless
Totally non-contacting rotating elements
Force or speed multiplier / reducer
Wide range of ratios
Scalable to any size or torque requirement
► Output shaft rotation can be either the same direction or counter rotating to input shaft
Thru Bore for Drilling Fluid Flow
Output Shaft (Internal Spline)
High Speed Magnetic Gear
Outer Housing/Collar
MagneGear™ RMG configured for use with a drilling motor such as a turbodrill, positive displacement motor (PDM) or air motor.
The input shaft shown in yellow is the high speed shaft. You will notice a thru bore in the input shaft to allow drilling fluid flow. The output shaft to the bit is shown on the left side of the diagram.
An important attribute of a RMG device is the isolation of axial force. Axial forces, or thrust, exerted on one member are not directly transmitted to the other members of the RMG. For example, a high axial load from the bit end of a RMG used in a mud motor application would not transfer to the PDM or turbodrill used as the prime mover.
In large diameter applications, high torque densities are achievable through a single stage magnetic gear device. Torque density of greater than 500 lb/ft per linear foot of gear device is achievable in a 9-5/8" diameter, with a through bore of 2-3/4" for flow. For smaller diameters, or for higher gear reduction ratios, multiple
stages can be utilized. For example, it is possible to achieve a 1200:1 reduction ratio through four stages in a 6-1/2" or smaller diameter and still be able to accommodate drilling fluid or production flow. This makes the MagneGear rotary magnetic gear and MagneGear linear magnetic gear systems the only reduction gear devices that we are aware of that allow access or intervention to devices below the gear system through an open central bore in the reduction gear device.
The smallest practical diameter for downhole application requiring moderate-to-high torque output appears to be 3-1/2" unless no mud flow is required through the ID of the RMG. With no flow required through the inside of the RMG device, for example if the RMG is needed to run inside a pressure housing on a tool, it can be practically applied in diameters of 2" or less.
