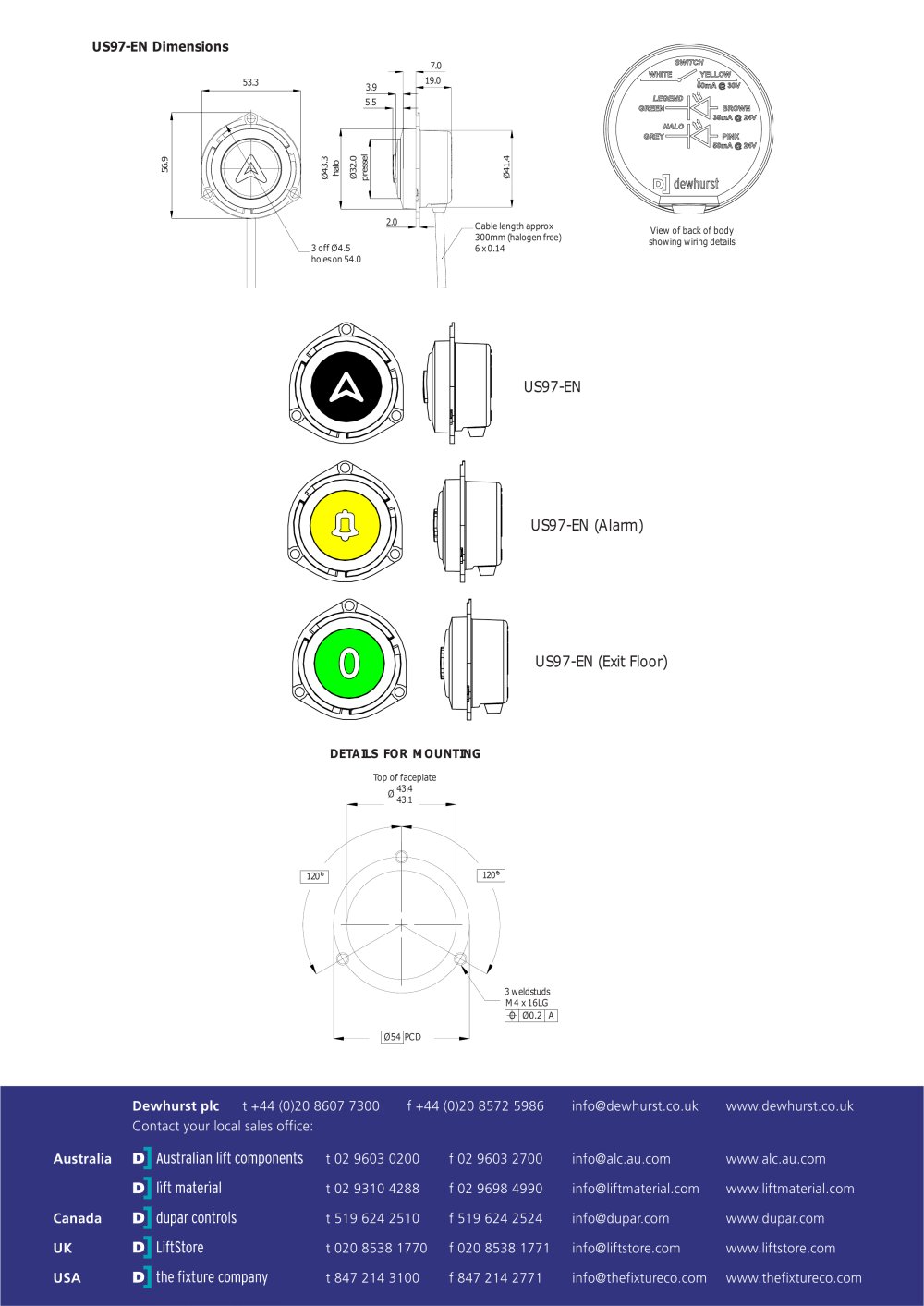

US97-EN Dimensions
53.3 5.53.97.019.0 56.9 Ø41.4 Ø43.3haloØ32.0pressel Cable length approx300mm (halogen free) 6 x 0.14View of back of bodyshowing wiring details 3 off Ø4.5holes on 54.02.0

US97-EN (Exit Floor)US97-EN (Alarm)US97-EN

DETAILS FOR MOUNTING Top of faceplate43.4 43.1120ˆ°120ˆ° 3 weldstudsM4 x 16LGØ54 PCD Ø O Ø0.2 A Dewhurst plc t +44 (0)20 8607 7300 f +44 (0)20 8572 5986 info@dewhurst.co.uk www.dewhurst.co.uk Contact your local sales office: Dewhurst plc t +44 (0)20 8607 7300 f +44 (0)20 8572 5986 info@dewhurst.co.uk www.dewhurst.co.ukContact your local sales office: Australia t 02 9603 0200 f 02 9603 2700 info@alc.au.com www.alc.au.com t 02 9310 4288 f 02 9698 4990 info@liftmaterial.com www.liftmaterial.com
