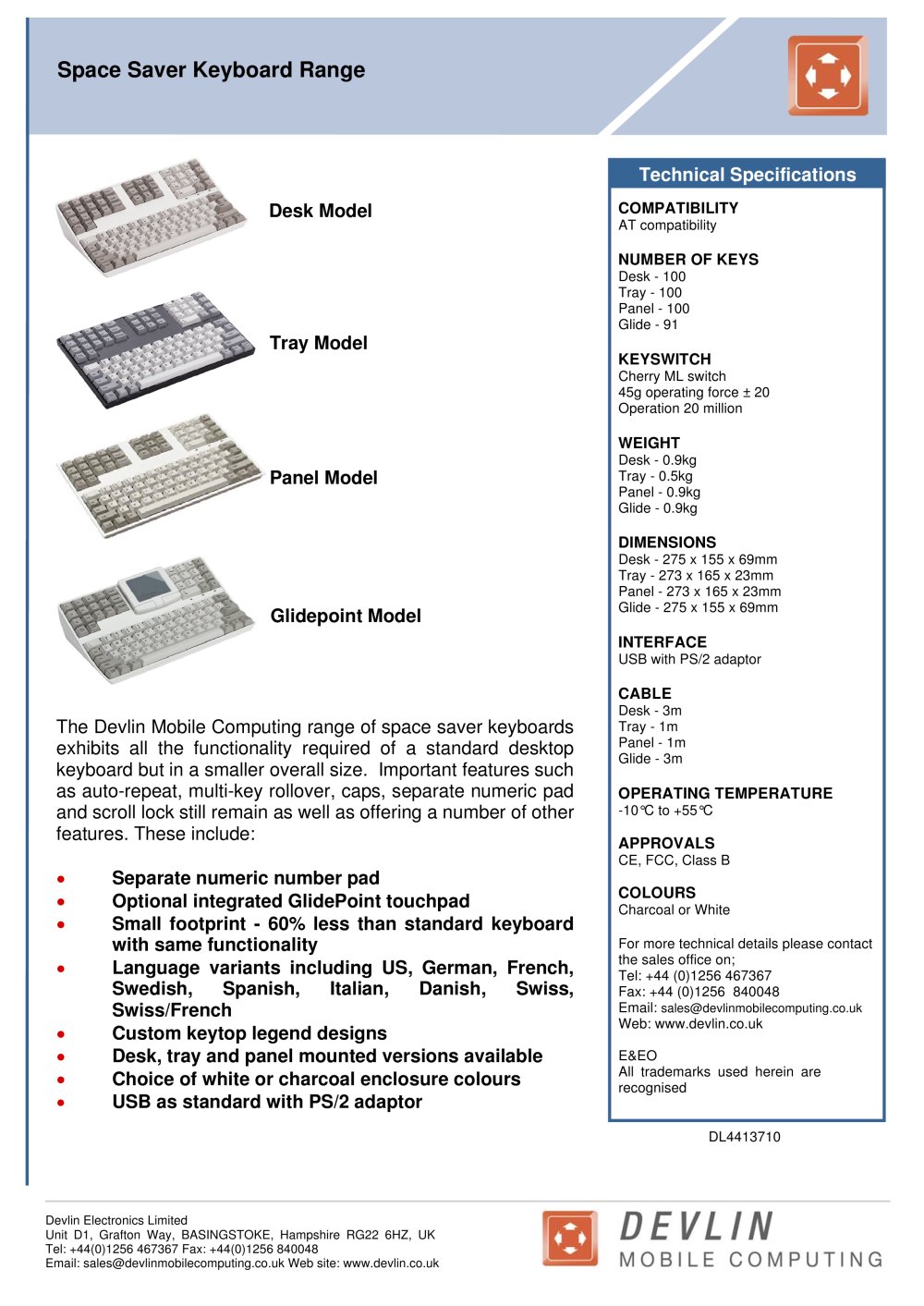

Space Saver Keyboard Range

		Technical Specifications

Desk Model	COMPATIBILITY AT compatibility NUMBER OF KEYS Desk -100 Tray -100 Panel -100 Glide - 91 KEYSWITCH Cherry ML switch 45g operating force ± 20 Operation 20 million WEIGHT Desk - 0.9kg Tray - 0.5kg Panel - 0.9kg Glide - 0.9kg DIMENSIONS Desk - 275 x 155 x 69mm Tray - 273 x 165 x 23mm Panel - 273 x 165 x 23mm Glide - 275 x 155 x 69mm INTERFACE USB with PS/2 adaptor CABLE Desk - 3m Tray -1 m Panel - 1m Glide - 3m OPERATING TEMPERATURE -10°C to +55°C APPROVALS CE, FCC, Class B COLOURS Charcoal or White For more technical details please contact the sales office on; Tel: +44 (0)1256 467367 Fax: +44 (0)1256 840048 Email: sales@devlinmobilecomputing.co.uk Web: www.devlin.co.uk E&EO All trademarks used herein are recognised
Tray Model
Panel Model
Glidepoint Model
The Devlin Mobile Computing range of space saver keyboards exhibits all the functionality required of a standard desktop keyboard but in a smaller overall size. Important features such as auto-repeat, multi-key rollover, caps, separate numeric pad and scroll lock still remain as well as offering a number of other features. These include: Separate numeric number pad Optional integrated GlidePoint touchpad Small footprint - 60% less than standard keyboard with same functionality Language variants including US, German, French, Swedish, Spanish, Italian, Danish, Swiss, Swiss/French Custom keytop legend designs Desk, tray and panel mounted versions available Choice of white or charcoal enclosure colours • USB as standard with PS/2 adaptor

DL4413710

Devlin Electronics Limited Unit D1, Grafton Way, BASINGSTOKE, Hampshire RG22 6HZ, UK Tel: +44(0)1256 467367 Fax: +44(0)1256 840048 Email: sales@devlinmobilecomputing.co.uk Web site: www.devlin.co.uk
