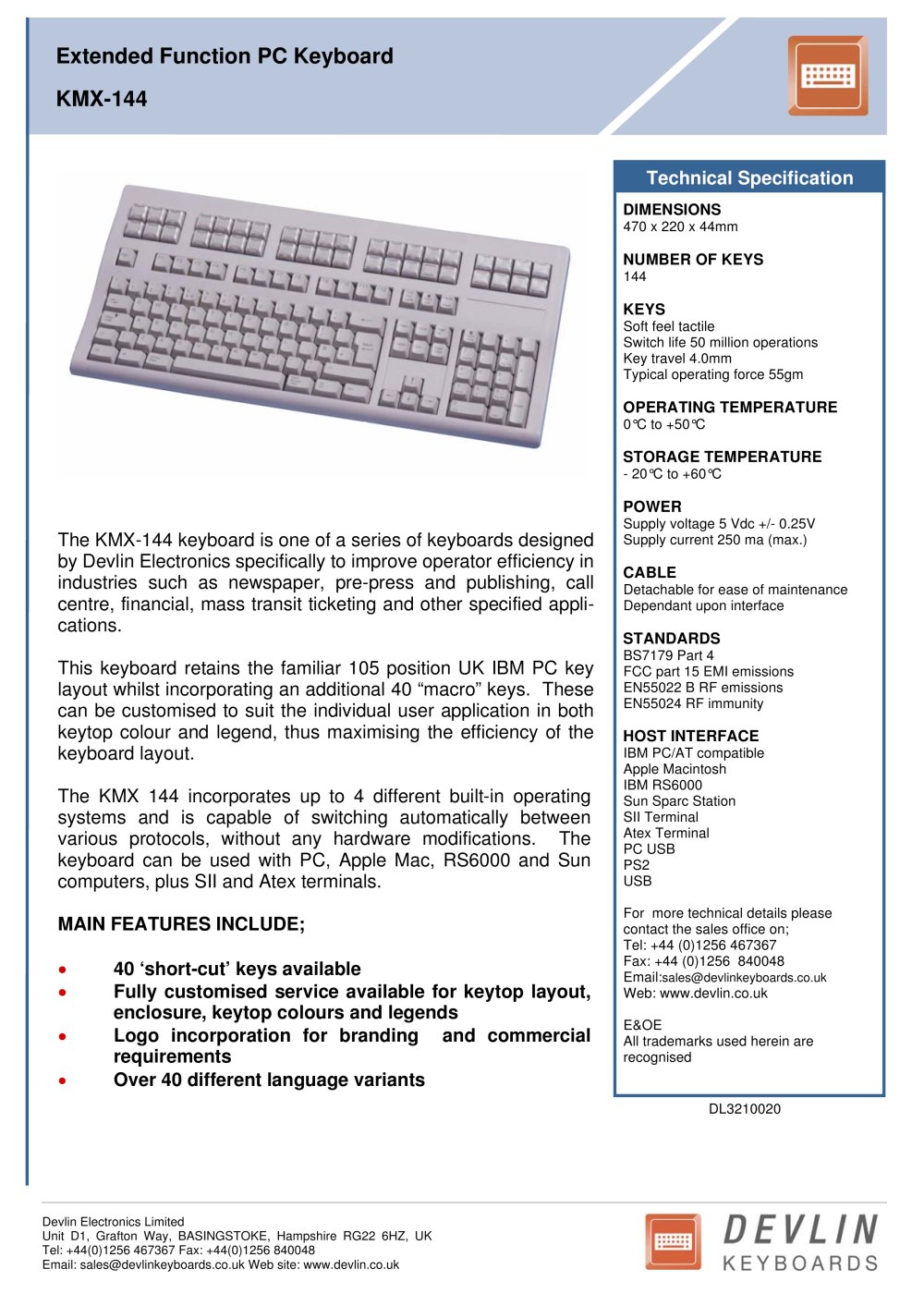

Extended Function PC KeyboardKMX-144

Technical Specification

DIMENSIONS

470 x 220 x 44mm

NUMBER OF KEYS

144

KEYS

Soft feel tactileSwitch life 50 million operations Key travel 4.0mm Typical operating force 55gm

OPERATING TEMPERATURE

0°C to +50°C

STORAGE TEMPERATURE

- 20°C to +60°C

MAIN FEATURES INCLUDE;

POWER

Supply voltage 5 Vdc +/- 0.25V Supply current 250 ma (max.)

The KMX-144 keyboard is one of a series of keyboards designed by Devlin Electronics specifically to improve operator efficiency in industries such as newspaper, pre-press and publishing, call centre, financial, mass transit ticketing and other specified appli- cations.This keyboard retains the familiar 105 position UK IBM PC keylayout whilst incorporating an additional 40 “macro” keys. These can be customised to suit the individual user application in both keytop colour and legend, thus maximising the efficiency of the keyboard layout.The KMX 144 incorporates up to 4 different built-in operatingsystems and is capable of switching automatically between various protocols, without any hardware modifications. The keyboard can be used with PC, Apple Mac, RS6000 and Sun computers, plus SII and Atex terminals.

CABLE

Detachable for ease of maintenance Dependant upon interface

STANDARDS

BS7179 Part 4 FCC part 15 EMI emissions EN55022 B RF emissions EN55024 RF immunity

HOST INTERFACE

IBM PC/AT compatible Apple Macintosh IBM RS6000 Sun Sparc Station SII Terminal Atex Terminal PC USB PS2 USBFor more technical details pleasecontact the sales office on; Tel: +44 (0)1256 467367 Fax: +44 (0)1256 840048 Email:

40 ‘short-cut’ keys available

sales@devlinkeyboards.co.uk

Fully customised service available for keytop layout,enclosure, keytop colours and legends

Web: www.devlin.co.ukE&OEAll trademarks used herein are recognised

Logo incorporation for branding and commercialrequirements Over 40 different language variants

DL3210020
Devlin Electronics LimitedUnit D1, Grafton Way, BASINGSTOKE, Hampshire RG22 6HZ, UK Tel: +44(0)1256 467367 Fax: +44(0)1256 840048 Email: sales@devlinkeyboards.co.uk Web site: www.devlin.co.uk
