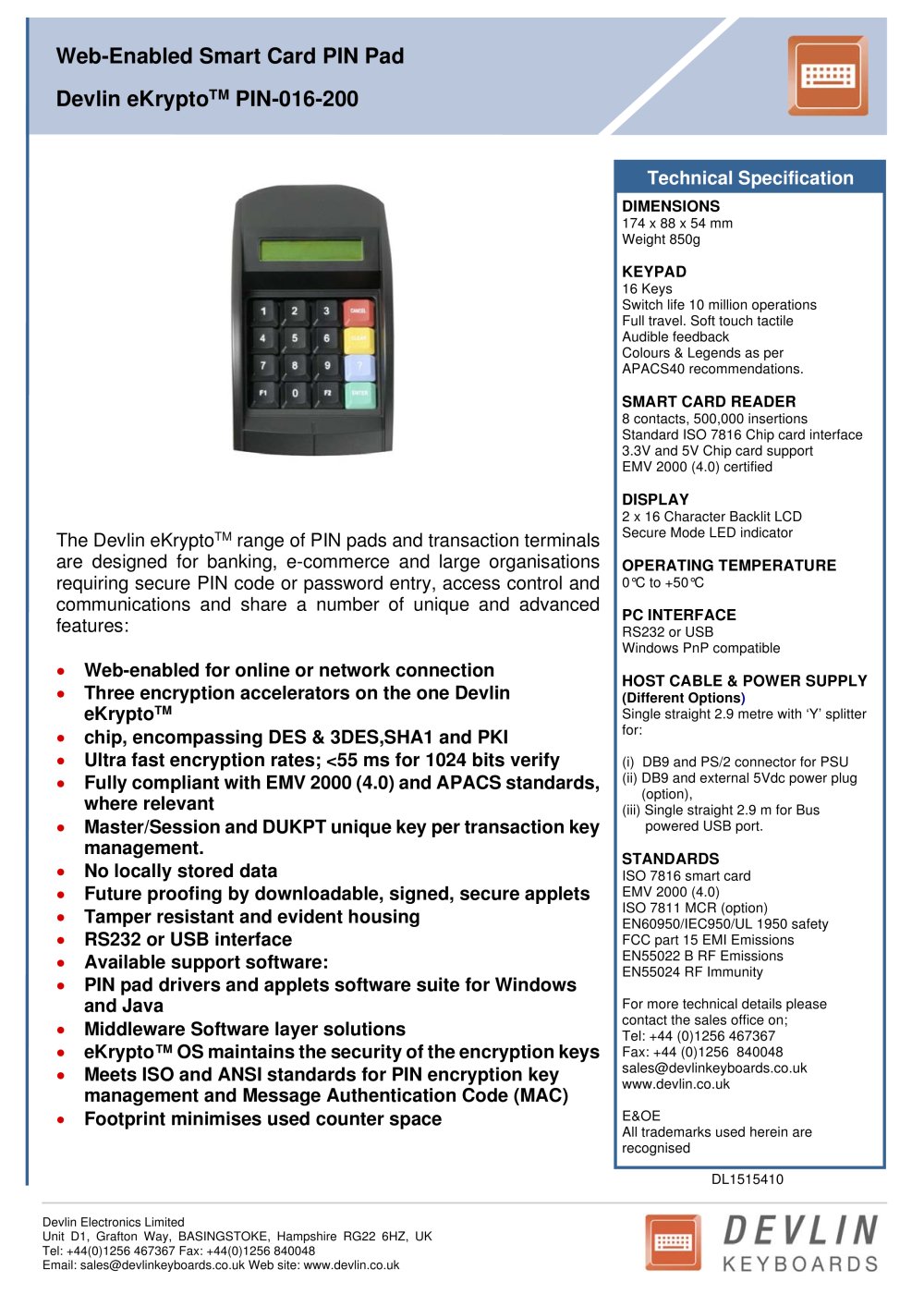

| Web-Enabled Smart Card PIN Pad Devlin eKrypto™ PIN-016-200 | |||||
| | |||||
| | Technical Specification | | |||
| | |||||
| The Devlin eKrypto™ range of PIN pads and transaction terminals are designed for banking, e-commerce and large organisations requiring secure PIN code or password entry, access control and communications and share a number of unique and advanced features: | DIMENSIONS 174x88x54 mm Weight 850g KEYPAD 16 Keys Switch life 10 million operations Full travel. Soft touch tactile Audible feedback Colours & Legends as per APACS40 recommendations. SMART CARD READER 8 contacts, 500,000 insertions Standard ISO 7816 Chip card interface 3.3V and 5V Chip card support EMV 2000 (4.0) certified DISPLAY 2x16 Character Backlit LCD Secure Mode LED indicator OPERATING TEMPERATURE 0°C to +50°C I PC INTERFACE RS232 or USB Windows PnP compatible HOST CABLE & POWER SUPPLY (Different Options) Single straight 2.9 metre with 'Y' splitter for: (i) DB9 and PS/2 connector for PSU (ii) DB9 and external 5Vdc power plug (option), (iii) Single straight 2.9 m for Bus powered USB port. STANDARDS ISO 7816 smart card EMV 2000 (4.0) ISO 7811 MCR (option) EN60950/IEC950/UL 1950 safety FCC part 15 EMI Emissions EN55022 B RF Emissions EN55024 RF Immunity For more technical details please | contact the sales office on; Tel: +44 (0)1256 467367 Fax: +44 (0)1256 840048 sales@devlinkeyboards.co.uk www.devlin.co.uk E&OE All trademarks used herein are recognised DL1515410 | ||||
| Web-enabled for online or network connection Three encryption accelerators on the one Devlin eKrypto™ chip, encompassing DES & 3DES,SHA1 and PKI Ultra fast encryption rates; <55 ms for 1024 bits verify Fully compliant with EMV 2000 (4.0) and APACS standards, where relevant Master/Session and DUKPT unique key per transaction key management. No locally stored data Future proofing by downloadable, signed, secure applets Tamper resistant and evident housing RS232 or USB interface Available support software: PIN pad drivers and applets software suite for Windows and Java Middleware Software layer solutions eKrypto™ OS maintains the security of the encryption keys Meets ISO and ANSI standards for PIN encryption key management and Message Authentication Code (MAC) Footprint minimises used counter space | |||||
| | |||||
| Devlin Electronics Limited Unit D1, Grafton Way, BASINGSTOKE, Hampshire RG22 6HZ, UK Tel: +44(0)1256 467367 Fax: +44(0)1256 840048 Email: sales@devlinkeyboards.co.uk Web site: www.devlin.co.uk | |||||
| | |||||
