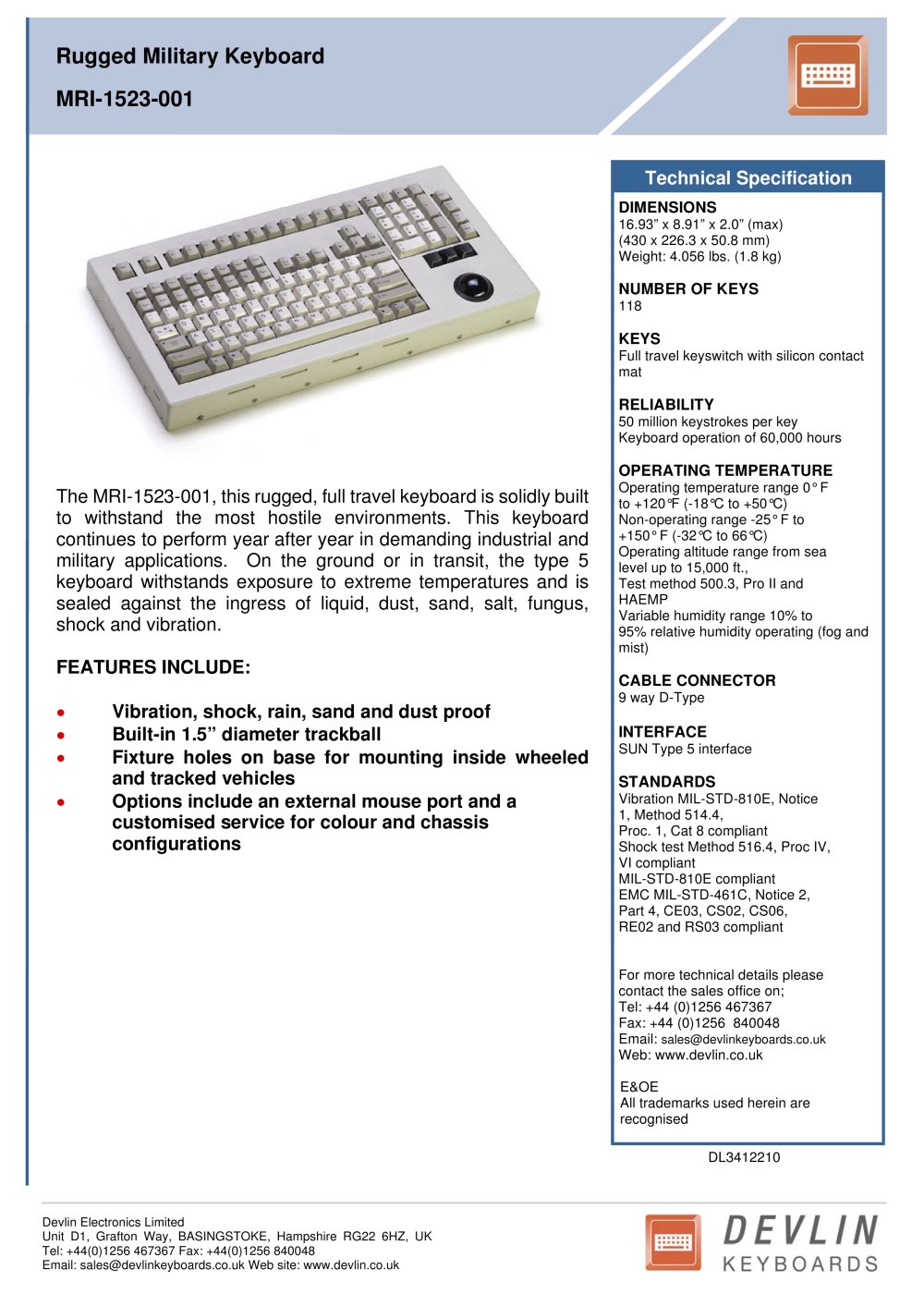

Rugged Military KeyboardMRI-1523-001

Technical Specification

DIMENSIONS

16.93” x 8.91” x 2.0” (max)(430 x 226.3 x 50.8 mm) Weight: 4.056 lbs. (1.8 kg)

NUMBER OF KEYS

118

KEYS

Full travel keyswitch with silicon contact mat

FEATURES INCLUDE:

RELIABILITY

50 million keystrokes per key Keyboard operation of 60,000 hours

OPERATING TEMPERATURE

The MRI-1523-001, this rugged, full travel keyboard is solidly built to withstand the most hostile environments. This keyboard continues to perform year after year in demanding industrial and military applications. On the ground or in transit, the type 5 keyboard withstands exposure to extreme temperatures and is sealed against the ingress of liquid, dust, sand, salt, fungus, shock and vibration.

Operating temperature range 0° F to +120°F (-18°C to +50°C) Non-operating range -25° F to +150° F (-32°C to 66°C) Operating altitude range from sea level up to 15,000 ft., Test method 500.3, Pro II and HAEMP Variable humidity range 10% to 95% relative humidity operating (fog and mist)

CABLE CONNECTOR

9 way D-Type

Vibration, shock, rain, sand and dust proof Built-in 1.5” diameter trackball

INTERFACE

Fixture holes on base for mounting inside wheeledand tracked vehicles

SUN Type 5 interface

STANDARDS

Options include an external mouse port and a customised service for colour and chassis configurations

Vibration MIL-STD-810E, Notice 1, Method 514.4, Proc. 1, Cat 8 compliant Shock test Method 516.4, Proc IV, VI compliant MIL-STD-810E compliant EMC MIL-STD-461C, Notice 2, Part 4, CE03, CS02, CS06, RE02 and RS03 compliantFor more technical details pleasecontact the sales office on; Tel: +44 (0)1256 467367 Fax: +44 (0)1256 840048 Email:
sales@devlinkeyboards.co.uk Web: www.devlin.co.ukE&OEAll trademarks used herein are recognised DL3412210
Devlin Electronics Limited Unit D1, Grafton Way, BASINGSTOKE, Hampshire RG22 6HZ, UK Tel: +44(0)1256 467367 Fax: +44(0)1256 840048 Email: sales@devlinkeyboards.co.uk Web site: www.devlin.co.uk
