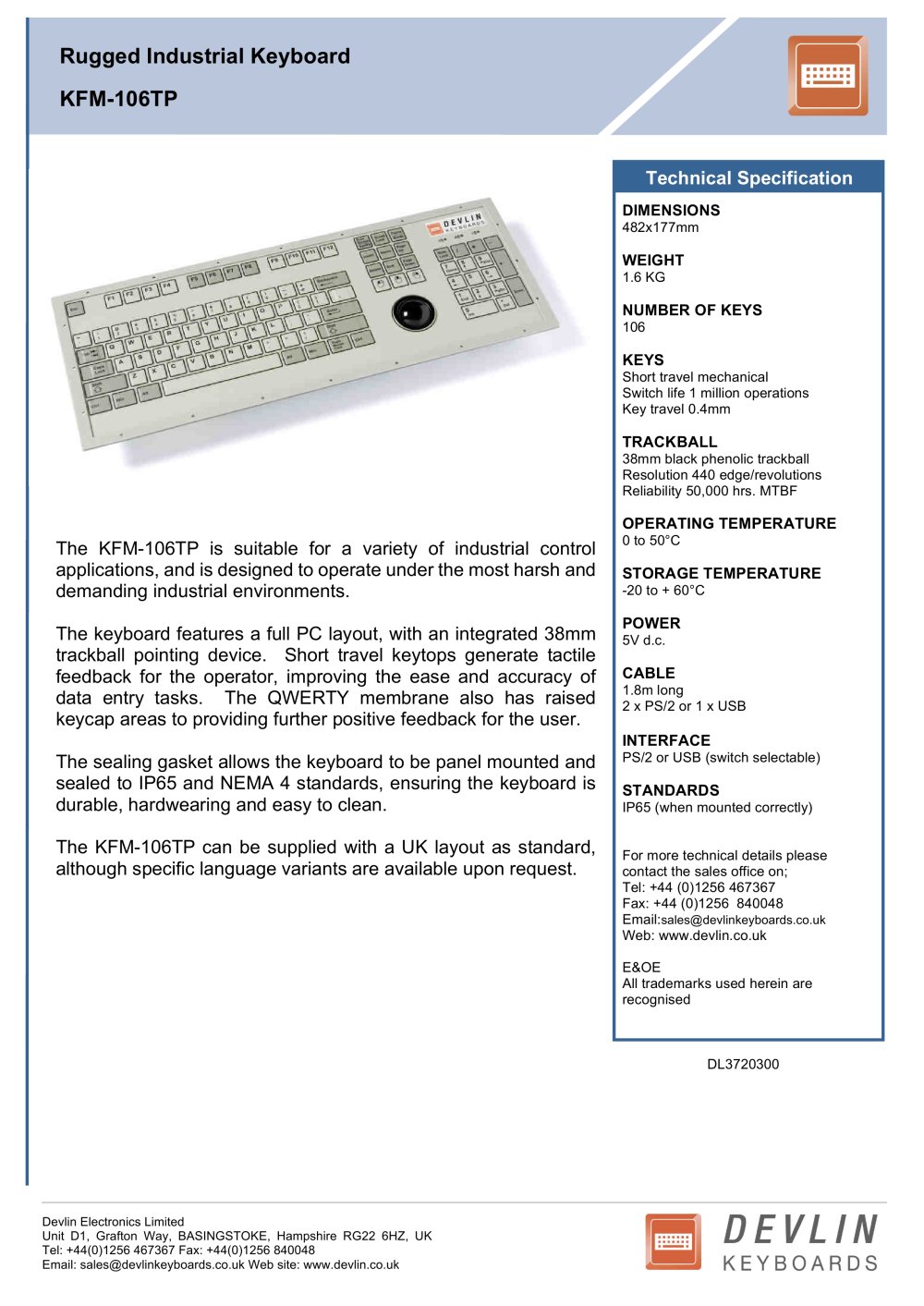

Rugged Industrial KeyboardKFM-106TP

Technical Specification

DIMENSIONS

482x177mm

WEIGHT

1.6 KG

NUMBER OF KEYS

106

KEYS

Short travel mechanicalSwitch life 1 million operations Key travel 0.4mm

TRACKBALL

38mm black phenolic trackball Resolution 440 edge/revolutions Reliability 50,000 hrs. MTBF

OPERATING TEMPERATURE

The KFM-106TP is suitable for a variety of industrial control applications, and is designed to operate under the most harsh and demanding industrial environments.The keyboard features a full PC layout, with an integrated 38mmtrackball pointing device. Short travel keytops generate tactile feedback for the operator, improving the ease and accuracy of data entry tasks. The QWERTY membrane also has raised keycap areas to providing further positive feedback for the user.The sealing gasket allows the keyboard to be panel mounted andsealed to IP65 and NEMA 4 standards, ensuring the keyboard is durable, hardwearing and easy to clean.The KFM-106TP can be supplied with a UK layout as standard,although specific language variants are available upon request.

0 to 50°C

STORAGE TEMPERATURE

-20 to + 60°C

POWER

5V d.c.

CABLE

1.8m long 2 x PS/2 or 1 x USB

INTERFACE

PS/2 or USB (switch selectable)

STANDARDS

IP65 (when mounted correctly)For more technical details pleasecontact the sales office on; Tel: +44 (0)1256 467367 Fax: +44 (0)1256 840048 Email:
sales@devlinkeyboards.co.uk Web: www.devlin.co.ukE&OEAll trademarks used herein are recognised DL3720300
Devlin Electronics Limited Unit D1, Grafton Way, BASINGSTOKE, Hampshire RG22 6HZ, UK Tel: +44(0)1256 467367 Fax: +44(0)1256 840048 Email: sales@devlinkeyboards.co.uk Web site: www.devlin.co.uk
