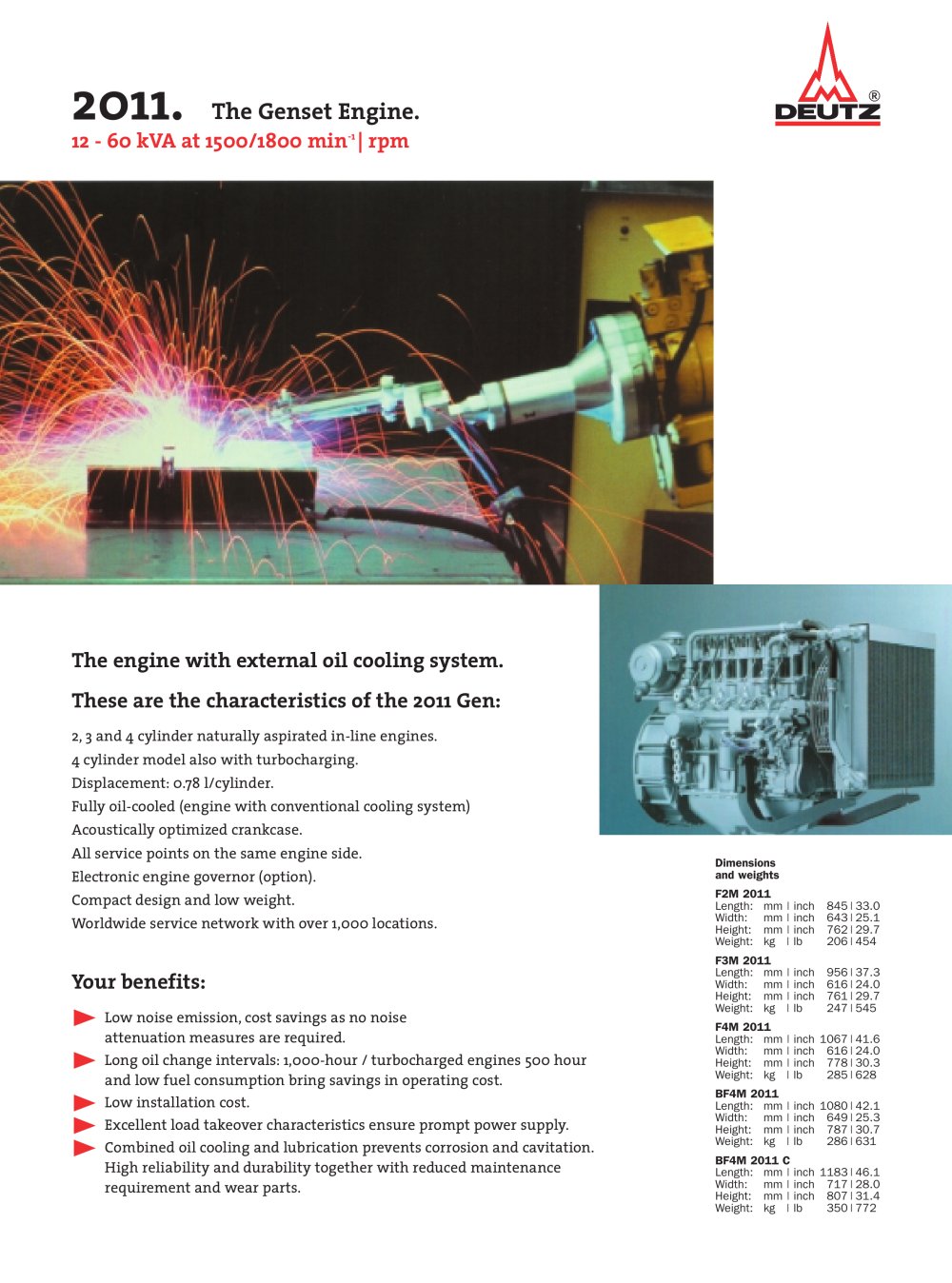

2011. The Genset Engine. 12 - 60 kVA at 1500/1800 min-1 | rpm The engine with external oil cooling system. These are the characteristics of the 2011 Gen: 2, 3 and 4 cylinder naturally aspirated in-line engines. 4 cylinder model also with turbocharging. Displacement: 0.78 l/cylinder. Fully oil-cooled (engine with conventional cooling system) Acoustically optimized crankcase. All service points on the same engine side. Electronic engine governor (option). Compact design and low weight. Worldwide service network with over 1,000 locations. Your benefits:  Low noise emission, cost savings as no noise attenuation measures are required.  Long oil change intervals: 1,000-hour / turbocharged engines 500 hour and low fuel consumption bring savings in operating cost.  Low installation cost.  Excellent load takeover characteristics ensure prompt power supply.  Combined oil cooling and lubrication prevents corrosion and cavitation. High reliability and durability together with reduced maintenance requirement and wear parts. Dimensions and weights F2M 2011 Length: mm | inch 845 | 33.0 Width: mm | inch 643 | 25.1 Height: mm | inch 762 | 29.7 Weight: kg | lb 206 | 454 F3M 2011 Length: mm | inch 956 | 37.3 Width: mm | inch 616 | 24.0 Height: mm | inch 761 | 29.7 Weight: kg | lb 247 | 545 F4M 2011 Length: mm | inch 1067 | 41.6 Width: mm | inch 616 | 24.0 Height: mm | inch 778 | 30.3 Weight: kg | lb 285 | 628 BF4M 2011 Length: mm | inch 1080 | 42.1 Width: mm | inch 649 | 25.3 Height: mm | inch 787 | 30.7 Weight: kg | lb 286 | 631 BF4M 2011 C Length: mm | inch 1183 | 46.1 Width: mm | inch 717 | 28.0 Height: mm | inch 807 | 31.4 Weight: kg | lb 350 | 772
