L 2011 The genset engine - 2 / 2 Pages

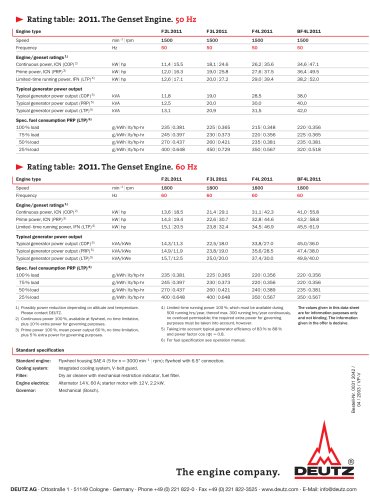

u Rating table: 2011.The Genset Engine. 50 Hz
Engine type F2L 2011 F3L 2011 F4L 2011 BF4L 2011
Speed min-1 | rpm 1500 1500 1500 1500
Frequency Hz 50 50 50 50
Engine/genset ratings 1)
Continuous power, ICN (COP)2) kW | hp 11,4 | 15.5 18,1 | 24.6 26,2 | 35.6 34,6 | 47.1
Prime power, ICN (PRP)3) kW | hp 12,0 | 16.3 19,0 | 25.8 27,6 | 37.5 36,4 | 49.5
Limited-time running power, IFN (LTP)4) kW | hp 12,6 | 17.1 20,0 | 27.2 29,0 | 39.4 38,2 | 52.0
Typical generator power output
Typical generator power output (COP)5) kVA 11,8 19,0 28,5 38,0
Typical generator power output (PRP)5) kVA 12,5 20,0 30,0 40,0
Typical generator power output (LTP)5) kVA 13,1 20,9 31,5 42,0
Spec. fuel consumption PRP (LTP) 6)
100 % load g/kWh | lb/hp-hr 235 |0.381225 | 0.365 215 | 0.348 220 | 0.356
75 % load g/kWh | lb/hp-hr 245 | 0.397 230 | 0.373 220 | 0.356 225 | 0.365
50%load g/kWh | lb/hp-hr 270 | 0.437 260 |0.421235 |0.381235 | 0.381
25%load g/kWh | lb/hp-hr 400 | 0.648 450 | 0.729 350 | 0.567 320 | 0.518
u Rating table: 2011.The Genset Engine. 60 Hz
Engine type F2L 2011 F3L 2011 F4L 2011 BF4L 2011
Speed min-1 | rpm 1800 1800 1800 1800
Frequency Hz 60 60 60 60
Engine/genset ratings 1)
Continuous power, ICN (COP)2) kW | hp 13,6 | 18.5 21,4 |29.131 ,1| 42.3 41,0 | 55.8
Prime power, ICN (PRP)3) kW | hp 14,3 | 19.4 22,6 | 30.7 32,8 | 44.6 43,2 | 58.8
Limited - time running power, IFN (LTP)4) kW | hp 15,1 | 20.5 23,8 | 32.4 34,5 | 46.9 45,5 | 61.9
Typical generator power output
Typical generator power output (COP)5) kVA/kWe 14,3/11.3 22,5/18.0 33,8/27.0 45,0/36.0
Typical generator power output (PRP)5) kVA/kWe 14,9/11.9 23,8/19.0 35,6/28.5 47,4/38.0
Typical generator power output (LTP)5) kVA/kWe 15,7/12.5 25,0/20.0 37,4/30.0 49,9/40.0
Spec. fuel consumption PRP (LTP) 6)
100 % load g/kWh | lb/hp-hr 235 |0.381225 | 0.365 220 | 0.356 220 | 0.356
75 % load g/kWh | lb/hp-hr 245 | 0.397 230 | 0.373 220 | 0.356 220 | 0.356
50%load g/kWh | lb/hp-hr 270 | 0.437 260 |0.421240 | 0.389 235 | 0.381
25%load g/kWh | lb/hp-hr 400 | 0.648 400 | 0.648 350 | 0.567 350 | 0.567
1) Possibly power reduction depending on altitude and temperature.
Please contact DEUTZ.
2) Continuous power 100 %, available at flywheel, no time limitation,
plus 10% extra power for governing purposes.
3) Prime power 100 %, mean power output 60%, no time limitation,
plus 5% extra power for governing purposes.
4) Limited-time running power 100 %, which must be available during
500 running hrs/year, thereof max. 300 running hrs/year continuously,
no overload permissible; the required extra power for governing
purposes must be taken into account, however.
5) Taking into account typical generator efficiency of 83% to 88 %
and power factor cos (Ê) = 0.8.
6) For fuel specification see operation manual.
Standard specification
Standard engine: Flywheel housing SAE 4 (5 for n = 3000 min-1 | rpm); flywheel with 6.5¿ connection.
Cooling system: Integrated cooling system, V-belt guard.
Filter: Dry air cleaner with mechanical restriction indicator, fuel filter.
Engine electrics: Alternator 14 V, 60 A; starter motor with 12 V, 2.2 kW.
Governor: Mechanical (Bosch).
The values given in this data sheet
are for information purposes only
and not binding. The information
given in the offer is decisive.
Bestell-Nr. 0031 2042 /
04 / 2003 / VP-V
