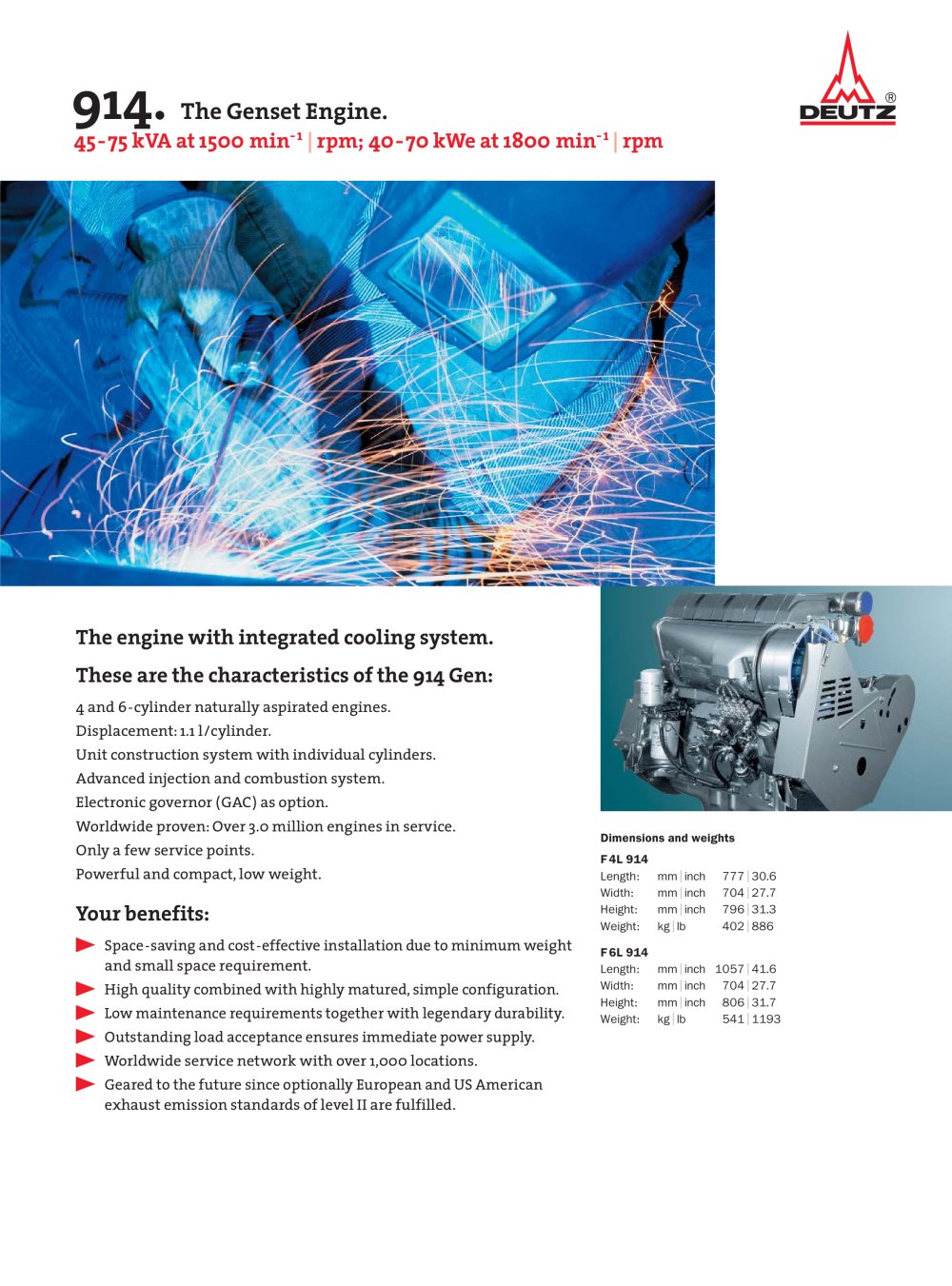

914 The genset engine - DEUTZ - #1

Text version of the page

45-75 kVA at 1500 min-1 | rpm; 40-70kWe at 1800 min-1 | rpm The engine with integrated cooling system. These are the characteristics of the 914 Gen: 4 and 6-cylinder naturally aspirated engines. Displacement: 1.1 l/cylinder. Unit construction system with individual cylinders. Advanced injection and combustion system. Electronic governor (GAC) as option. Worldwide proven: Over 3.0 million engines in service. Only a few service points. Powerful and compact, low weight. Your benefits: u Space-saving and cost-effective installation due to minimum weight and small space requirement. u High quality combined with highly matured, simple configuration. u Low maintenance requirements together with legendary durability. u Outstanding load acceptance ensures immediate power supply. u Worldwide service network with over 1,000 locations. u Geared to the future since optionally European and US American exhaust emission standards of level II are fulfilled. 914. The Genset Engine. Dimensions and weights F 4L 914 Length: mm| inch 777 | 30.6 Width: mm| inch 704 | 27.7 Height: mm| inch 796 | 31.3 Weight: kg | lb 402 | 886 F 6L 914 Length: mm| inch 1057 | 41.6 Width: mm| inch 704 | 27.7 Height: mm| inch 806 | 31.7 Weight: kg | lb 541 | 1193
