1015/2015 The automotive engine
2Pages

Add to favorites

{{requestButtons}}

Catalog excerpts

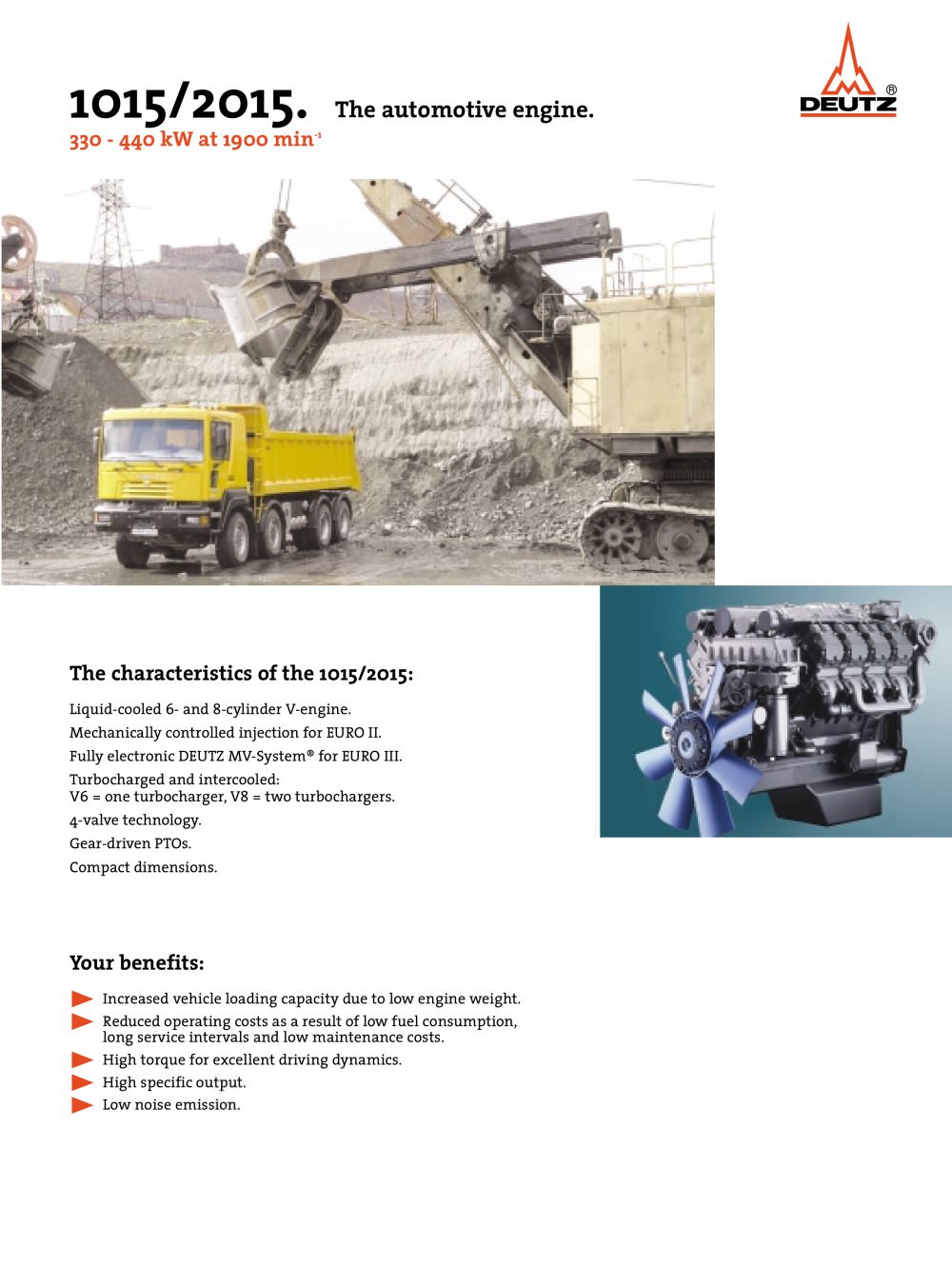

® 1015/2015. The automotive engine. 330 - 440 kW at 1900 min-1 The characteristics of the 1015/2015: Liquid-cooled 6- and 8-cylinder V-engine. Mechanically controlled injection for EURO II. Fully electronic DEUTZ MV-System® for EURO III. Turbocharged and intercooled: V6 = one turbocharger, V8 = two turbochargers. 4-valve technology. Gear-driven PTOs. Compact dimensions. Your benefits: Increased vehicle loading capacity due to low engine weight. Reduced operating costs as a result of low fuel consumption, long service intervals and low maintenance costs. High torque for excellent driving dynamics. High specific output. Low noise emission.

Open the catalog to page 1

u Technical data Dimensions Motor A B C D E F G BF6M1015CP 832 932 1169 466 462 143 199 BF8M1015CP 1006 932 1152 466 462 143 199 TCD2015 V6 832 932 1169 466 462 143 199 TCD2015 V8 1006 932 1152 466 462 143 199 Engine type BF6M1015 CP BF8M1015CP TCD2015 V6 TCD2015 V8* Number of cylinders 6 8 6 8 Bore/stroke mm 132/145 132/145 132/145 132/145 Displacement l 11.91 5.9 11.9 15.9 Compression ratio 16.5 16.5 16.5 16.5 Max. rated speed min-1 2100 2100 2100 2100 Mean piston speed m/s 10.2 10.2 10.2 10.2 Power ratings for commercial vehicles Emission level EURO III Power rating to ISO 1585 kW 360...

Open the catalog to page 2
