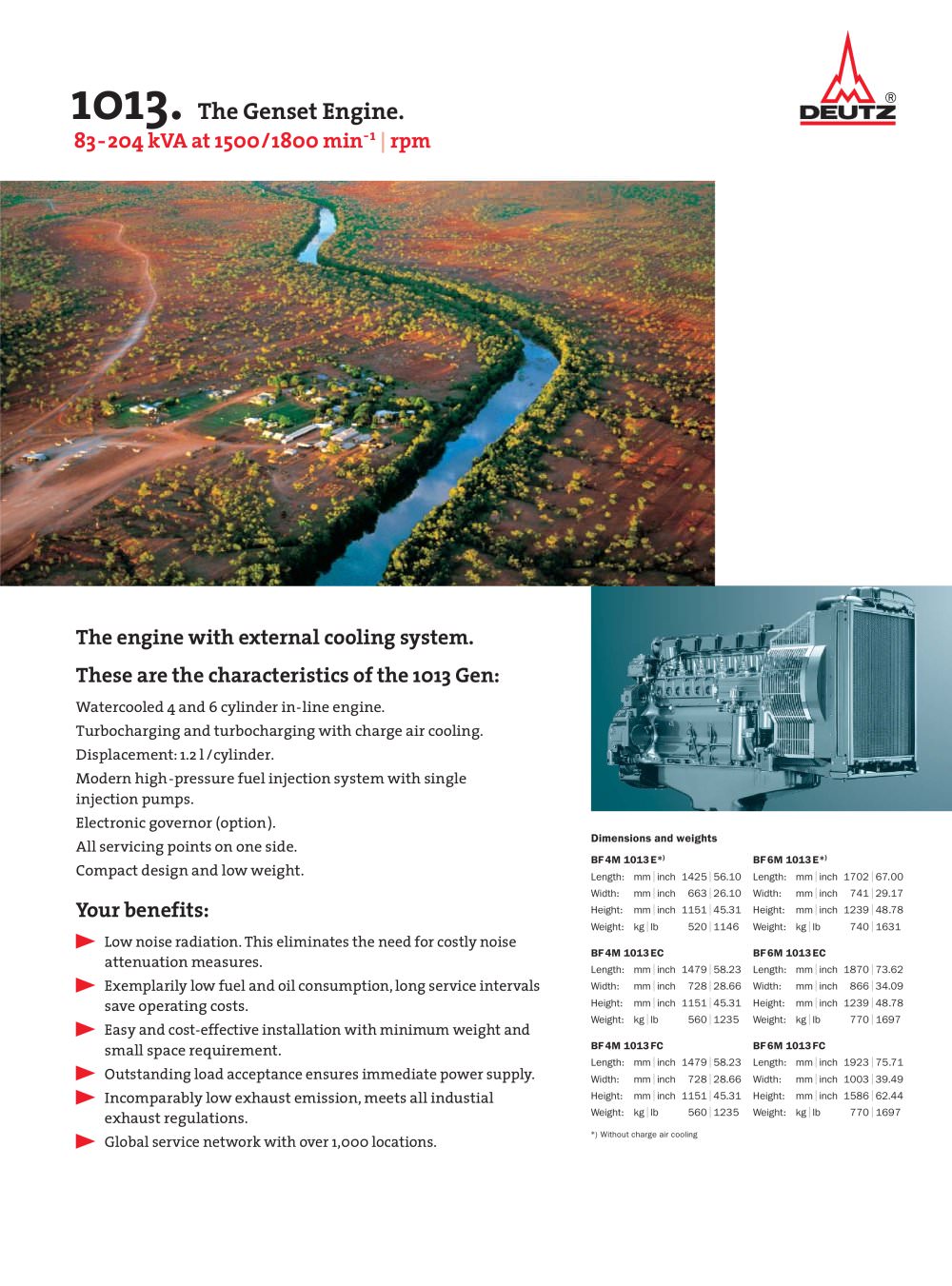

1013 The genset engine - DEUTZ - #1

Text version of the page

83-204 kVA at 1500/1800 min-1 | rpm The engine with external cooling system. These are the characteristics of the 1013 Gen: Watercooled 4 and 6 cylinder in-line engine. Turbocharging and turbocharging with charge air cooling. Displacement: 1.2 l /cylinder. Modern high-pressure fuel injection system with single injection pumps. Electronic governor (option). All servicing points on one side. Compact design and low weight. Your benefits: u Low noise radiation. This eliminates the need for costly noise attenuation measures. u Exemplarily low fuel and oil consumption, long service intervals save operating costs. u Easy and cost-effective installation with minimum weight and small space requirement. u Outstanding load acceptance ensures immediate power supply. u Incomparably low exhaust emission, meets all industial exhaust regulations. u Global service network with over 1,000 locations. 1013. The Genset Engine. Dimensions and weights BF4M 1013E*) BF6M 1013E*) Length: mm | inch 1425 | 56.10 Length: mm | inch 1702 | 67.00 Width: mm | inch 663 | 26.10 Width: mm | inch 741 | 29.17 Height: mm | inch 1151 | 45.31 Height: mm | inch 1239 | 48.78 Weight: kg | lb 520 | 1146 Weight: kg | lb 740 | 1631 BF4M 1013EC BF6M 1013EC Length: mm | inch 1479 | 58.23 Length: mm | inch 1870 | 73.62 Width: mm | inch 728 | 28.66 Width: mm | inch 866 | 34.09 Height: mm | inch 1151 | 45.31 Height: mm | inch 1239 | 48.78 Weight: kg | lb 560 | 1235 Weight: kg | lb 770 | 1697 BF4M 1013FC BF6M 1013FC Length: mm | inch 1479 | 58.23 Length: mm | inch 1923 | 75.71 Width: mm | inch 728 | 28.66 Width: mm | inch 1003 | 39.49 Height: mm | inch 1151 | 45.31 Height: mm | inch 1586 | 62.44 Weight: kg | lb 560 | 1235 Weight: kg | lb 770 | 1697 *) Without charge air cooling
