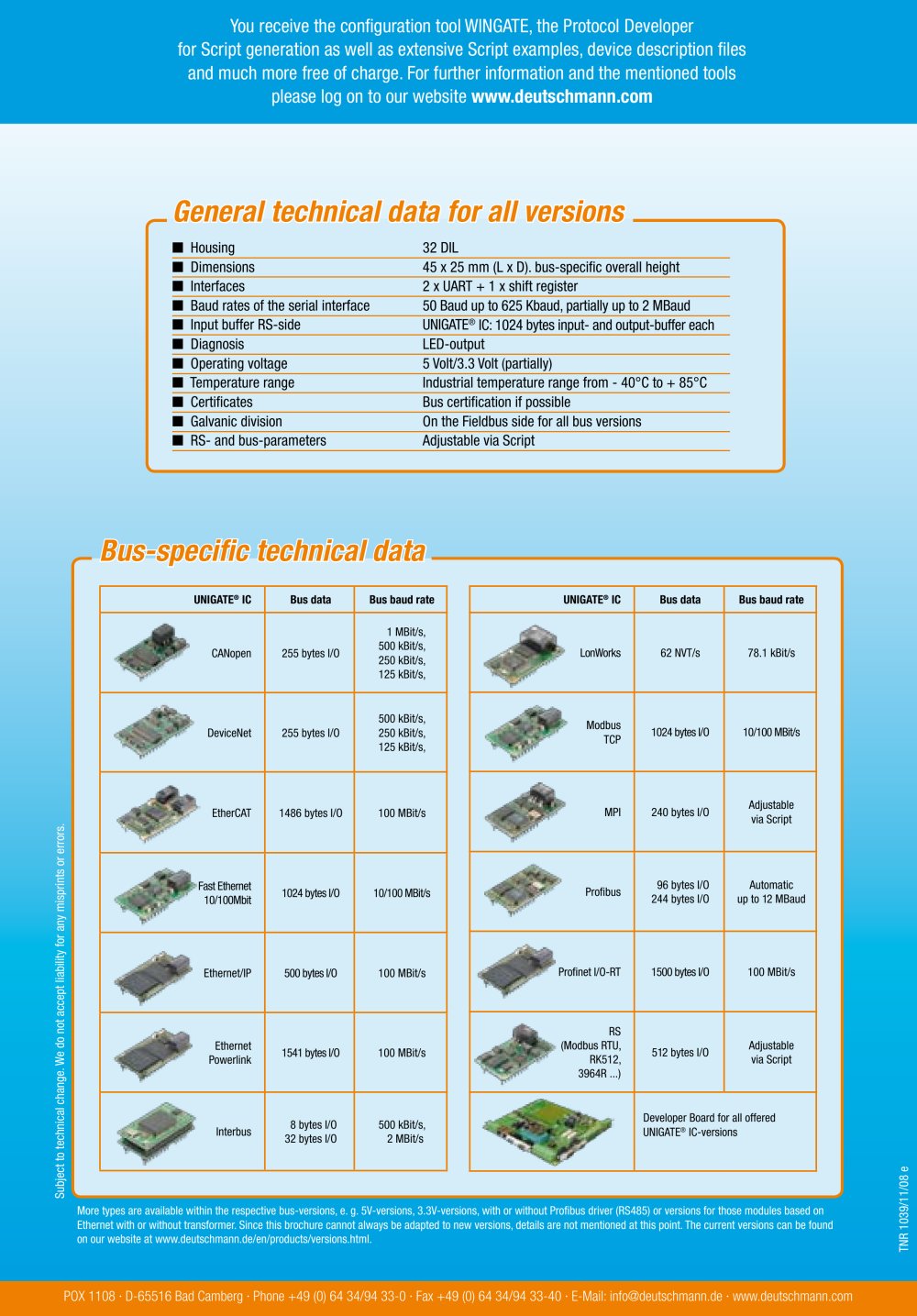

You receive the configuration tool WINGATE, the Protocol Developer for Script generation as well as extensive Script examples, device description files and much more free of charge. For further information and the mentioned tools please log on to our website www.deutschmann.com

^ General technical data for all versions


	■ Housing	32 DIL
	■ Dimensions	45 x 25 mm (L x D). bus-specific overall height
	■ Interfaces	2 x UART + 1 x shift register
	■ Baud rates of the serial interface	50 Baud up to 625 Kbaud, partially up to 2 MBaud
	■ Input buffer RS-side	UNIGATE® IC: 1024 bytes input- and output-buffer each
	■ Diagnosis	LED-output
	■ Operating voltage	5 Volt/3.3 Volt (partially)
	■ Temperature range	Industrial temperature range from - 40°C to + 85°C
	■ Certificates	Bus certification if possible
	■ Galvanic division	On the Fieldbus side for all bus versions
	■ RS- and bus-parameters	Adjustable via Script

^ Bus-specific technical data


UNIGATE® IC	Bus data	Bus baud rate
*yââ^'* CANopen	255 bytes I/O	1 MBit/s, 500 kBit/s, 250 kBit/s, 125 kBit/s,
*^^ÊjP^* DeviceNet	255 bytes I/O	500 kBit/s, 250 kBit/s, 125 kBit/s,
Jt^^BKr EtlwCAT	1486 byt_es I/O	100 MBit/_s

* Tjil Fast Ethernet ' ■ 10/100Mbit	1024 bytes I/O	10/100 MBit/s
_r^HEE^ Ethernet/IP	500 bytes I/O	100 MBit/s
*^ÊÊÊà,* Ethernet Powerlink	1541 bytes I/O	100 MBit/s
sé* •'^r5ir Interbus	8 bytes I/O 32 bytes I/O	500 kBit/s, 2 MBit/s


UNIGATE® IC	Bus data	Bus baud rate
LonWorks	62 NVT/s	78.1 kBit/s
^ Modbus TCP	1024 bytes I/O	10/100 MBit/s
MPI	240 byt_eS I/O	Adjustable
		via Script
*•éÊÊÊÊ^* Profibus	96 bytes I/O 244 bytes I/O	Automatic up to 12 MBaud
Profinet I/O-RT	1500 bytes I/O	100 MBit/s
_r ^* (Modbus RTU, RK512, 3964R ...)	512 bytes I/O	Adjustable via Script
	Developer Board for all offered UNIGATE⁸ IC-versions

co _cz

co "cì

cd co

o cz o

More types are available within the respective bus-versions, e. g. 5V-versions, 3.3V-versions, with or without Profibus driver (RS485) or versions for those modules based on Ethernet with or without transformer. Since this brochure cannot always be adapted to new versions, details are not mentioned at this point. The current versions can be found on our website at www.deutschmann.de/en/products/versions.html.
