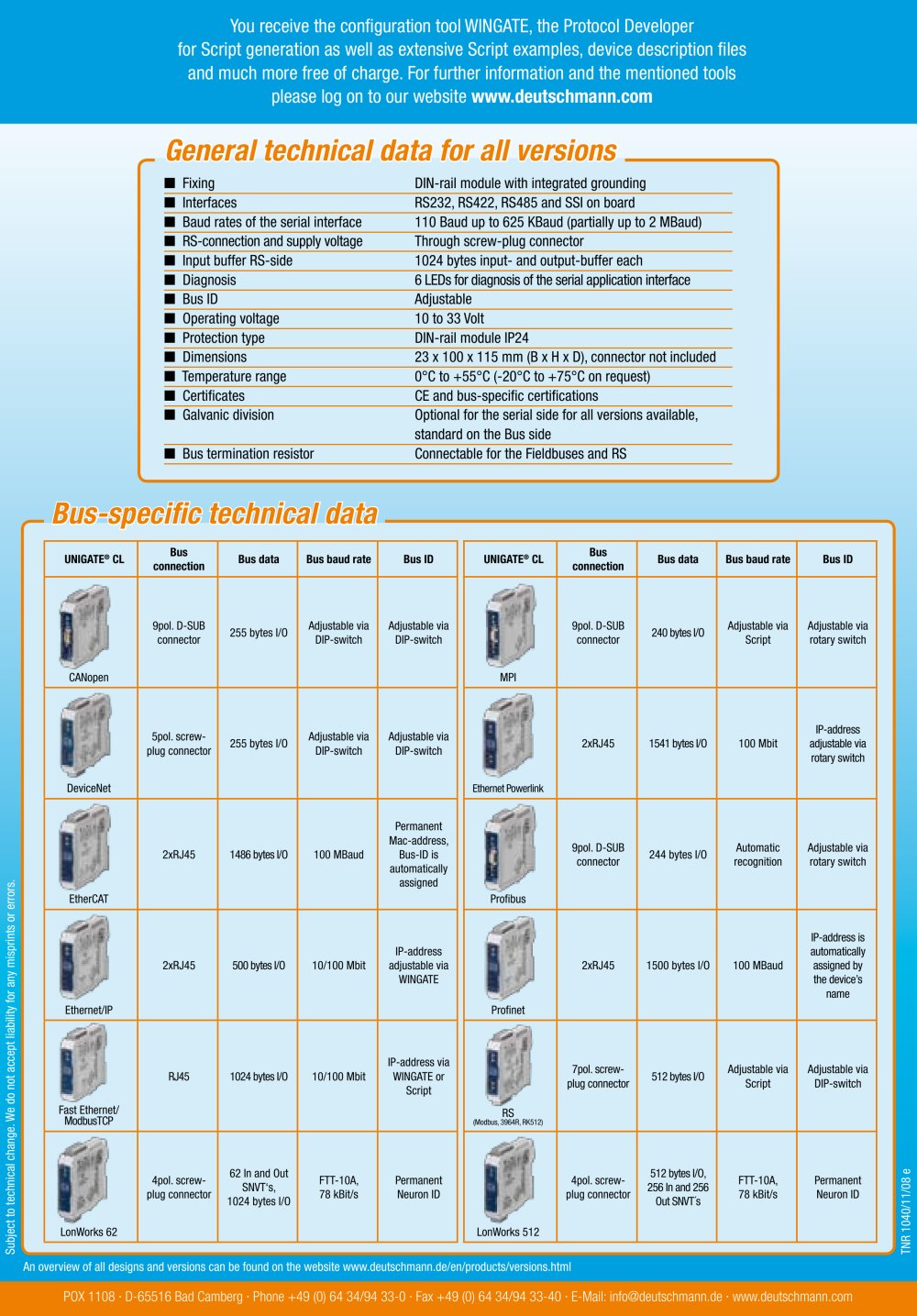

You receive the configuration tool WINGATE, the Protocol Developer for Script generation as well as extensive Script examples, device description files and much more free of charge. For further information and the mentioned tools please log on to our website www.deutschmann.com

^ General technical data for all versions

■ Fixing

DIN-rail module with integrated grounding


	■ Interfaces	RS232, RS422, RS485 and SSI on board
	■ Baud rates of the serial interface	110 Baud up to 625 KBaud (partially up to 2 MBaud)
	■ RS-connection and supply voltage	Through screw-plug connector
	■ Input buffer RS-side	1024 bytes input- and output-buffer each
	■ Diagnosis	6 LEDs for diagnosis of the serial application interface
	■ Bus ID	Adjustable
	■ Operating voltage	10 to 33 Volt
	■ Protection type	DIN-rail module IP24
	■ Dimensions	23 x 100 x 115 mm (B x H x D), connector not included
	■ Temperature range	0°C to +55°C (-20°C to +75°C on request)
	■ Certificates	CE and bus-specific certifications
	■ Galvanic division	Optional for the serial side for all versions available, standard on the Bus side
	■ Bus termination resistor	Connectable for the Fieldbuses and RS

r- Bus-specific technical data


UNIGATE® CL	Bus connection	Bus data	Bus baud rate	Bus ID	UNIGATE® CL	Bus connection	Bus data	Bus baud rate	Bus ID
" i P CANopen	9pol. D-SUB connector	255 bytes I/O	Adjustable via DIP-switch	Adjustable via DIP-switch	MPI	9pol. D-SUB connector	240 bytes I/O	Adjustable via Script	Adjustable via rotary switch
jf npuirpMpt	5pol. screw-plug connector	255 bytes I/O	Adjustable via DIP-switch	Adjustable via DIP-switch	1 Fthprnpt Pnwprlink	2xRJ45	1541 bytes I/O	100 Mbit	IP-address adjustable via rotary switch
					LLMCIMCL POWClllMk
EtherCAT	2xRJ45	1486 bytes I/O	100 MBaud	Permanent Mac-address, Bus-ID is automatically assigned	P Profibus	9pol. D-SUB connector	244 bytes I/O	Automatic recognition	Adjustable via rotary switch
P Ethernet/IP	2xRJ45	500 bytes I/O	10/100 Mbit	IP-address adjustable via WINGATE	1 Profinet	2xRJ45	1500 bytes I/O	100 MBaud	IP-address is automatically assigned by the device's name
¿139 P Fast Ethernet/ ModbusTCP	RJ45	1024 bytes I/O	10/100 Mbit	IP-address via WINGATE or Script	H RS (Modbus, 3964R, RK512)	7pol. screw-plug connector	512 bytes I/O	Adjustable via Script	Adjustable via DIP-switch
iß LonWorks 62	4pol. screw-plug connector	62 In and Out SNVT's, 1024 bytes I/O	FTT-10A, 78 kBit/s	Permanent Neuron ID	0 LonWorks 512	4pol. screw-plug connector	512 bytes I/O, 256 In and 256 Out SNVT's	FTT-10A, 78 kBit/s	Permanent Neuron ID

c/3

to E

cc o

o cz

cd cd

cn cz cc

cc _o 'c

jz: o

o o

An overview of all designs and versions can be found on the website www.deutschmann.de/en/products/versions.html
