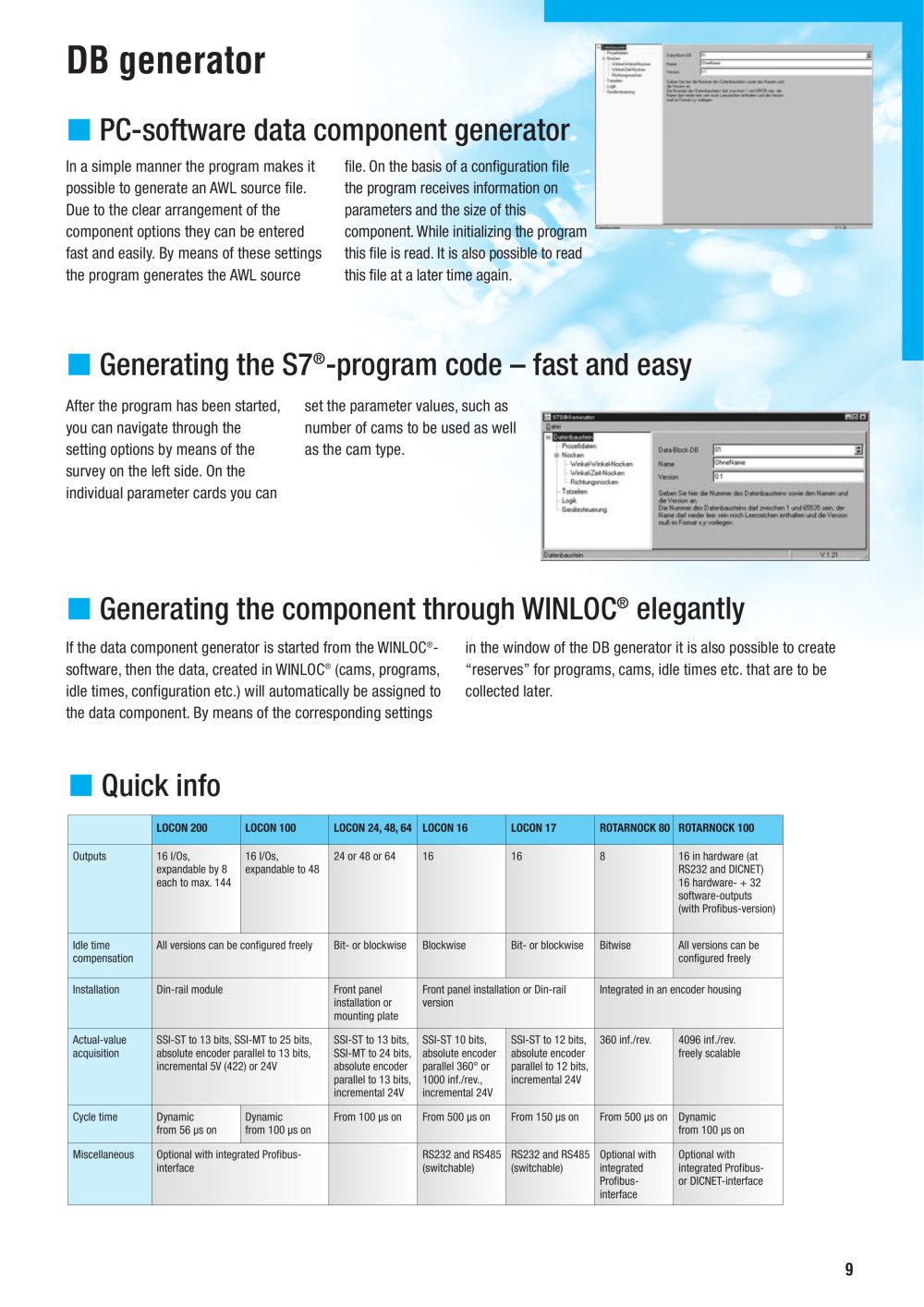

DB generator PC-software data component generator In a simple manner the program makes it possible to generate an AWL source file. Due to the clear arrangement of the component options they can be entered fast and easily. By means of these settings the program generates the AWL source file. On the basis of a configuration file the program receives information on parameters and the size of this component. While initializing the program this file is read. It is also possible to read this file at a later time again. Generating the S7®-program code ­ fast and easy After the program has been started, you can navigate through the setting options by means of the survey on the left side. On the individual parameter cards you can set the parameter values, such as number of cams to be used as well as the cam type. Generating the component through WINLOC® elegantly If the data component generator is started from the WINLOC®software, then the data, created in WINLOC® (cams, programs, idle times, configuration etc.) will automatically be assigned to the data component. By means of the corresponding settings in the window of the DB generator it is also possible to create "reserves" for programs, cams, idle times etc. that are to be collected later. Quick info LOCON 200 Outputs 16 I/Os, expandable by 8 each to max. 144 LOCON 100 16 I/Os, expandable to 48 LOCON 24, 48, 64 LOCON 16 24 or 48 or 64 16 LOCON 17 16 ROTARNOCK 80 ROTARNOCK 100 8 16 in hardware (at RS232 and DICNET) 16 hardware- + 32 software-outputs (with Profibus-version) All versions can be configured freely Idle time compensation Installation All versions can be configured freely Bit- or blockwise Blockwise Bit- or blockwise Bitwise Din-rail module Front panel installation or mounting plate SSI-ST to 13 bits, SSI-MT to 24 bits, absolute encoder parallel to 13 bits, incremental 24V From 100 µs on Front panel installation or Din-rail version SSI-ST 10 bits, absolute encoder parallel 360° or 1000 inf./rev., incremental 24V From 500 µs on Integrated in an encoder housing Actual-value acquisition SSI-ST to 13 bits, SSI-MT to 25 bits, absolute encoder parallel to 13 bits, incremental 5V (422) or 24V SSI-ST to 12 bits, 360 inf./rev. absolute encoder parallel to 12 bits, incremental 24V From 150 µs on 4096 inf./rev. freely scalable Cycle time Miscellaneous Dynamic from 56 µs on Dynamic from 100 µs on From 500 µs on Dynamic from 100 µs on Optional with integrated Profibusor DICNET-interface Optional with integrated Profibusinterface RS232 and RS485 RS232 and RS485 Optional with (switchable) (switchable) integrated Profibusinterface 9
