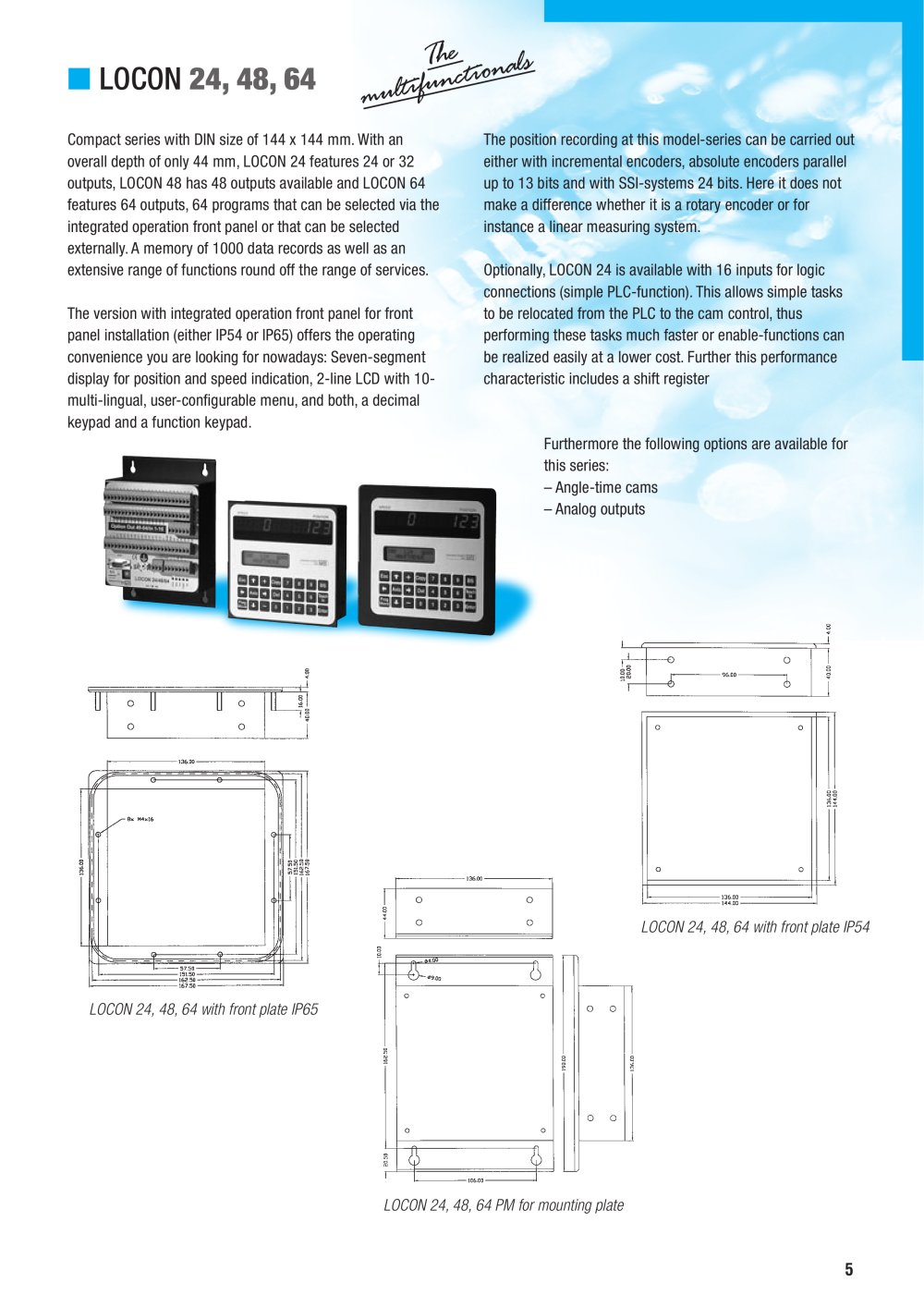

LOCON 24, 48, 64 The onals ncti multifu The position recording at this model-series can be carried out either with industrial incremental encoders, absolute encoders manufacturer parallel up to 13 bits and with SSI-systems 24 bits. Here it does not make a difference whether it is a rotary encoder or for instance a linear measuring system manufacturer. Optionally, LOCON 24 is available with 16 inputs for logic connections manufacturer (simple PLC-function). This allows simple tasks to be relocated from the PLC to the cam control, thus performing these tasks much faster or enable-functions can be realized easily at a lower cost. Further this performance characteristic includes a shift register Compact series with DIN size of 144 x 144 mm. With an overall depth of only 44 mm, LOCON 24 features 24 or 32 outputs, LOCON 48 has 48 outputs available and LOCON 64 features 64 outputs, 64 programs that can be selected via the integrated operation front panel or that can be selected externally. A memory of 1000 data records as well as an extensive range of functions round off the range of services. The version with integrated operation front panel for front panel installation (either IP54 or IP65) offers the operating convenience you are looking for nowadays: Seven-segment industrial display for position and speed indication, 2-line LCD with 10multi-lingual, user-configurable menu, and both, a decimal keypad and a function keypad. Furthermore the following options are available for this series: ­ Angle-time cams ­ Analog outputs LOCON 24, 48, 64 with front plate IP54 LOCON 24, 48, 64 with front plate IP65 LOCON 24, 48, 64 PM for mounting plate 5
