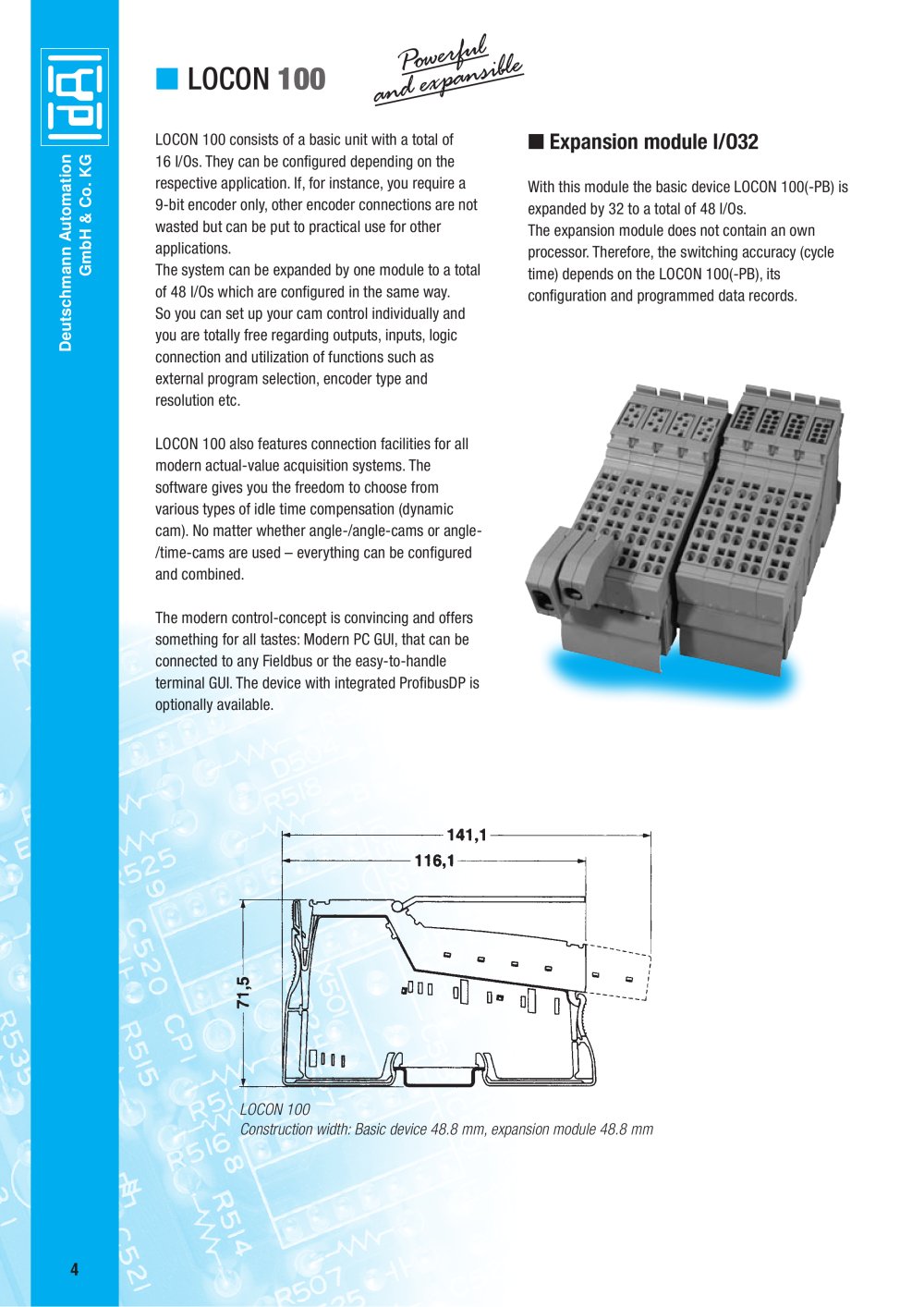

LOCON 100 Deutschmann Automation GmbH & Co. KG fl Powerau sible n and exp Expansion module I/O32 With this module the basic device LOCON 100(-PB) is expanded by 32 to a total of 48 I/Os. The expansion module does not contain an own processor. Therefore, the switching accuracy (cycle time) depends on the LOCON 100(-PB), its configuration and programmed data records. LOCON 100 consists of a basic unit with a total of 16 I/Os. They can be configured depending on the respective application. If, for instance, you require a 9-bit encoder only, other encoder connections are not wasted but can be put to practical use for other applications. The system can be expanded by one module to a total of 48 I/Os which are configured in the same way. So you can set up your cam control individually and you are totally free regarding outputs, inputs, logic connection and utilization of functions such as external program selection, encoder type and resolution etc. LOCON 100 also features connection facilities for all modern actual-value acquisition systems. The software gives you the freedom to choose from various types of idle time compensation (dynamic cam). No matter whether angle-/angle-cams or angle/time-cams are used ­ everything can be configured and combined. The modern control-concept is convincing and offers something for all tastes: Modern PC GUI, that can be connected to any Fieldbus or the easy-to-handle terminal GUI. The device with integrated ProfibusDP is optionally available. LOCON 100 Construction width: Basic device 48.8 mm, expansion module 48.8 mm 4
