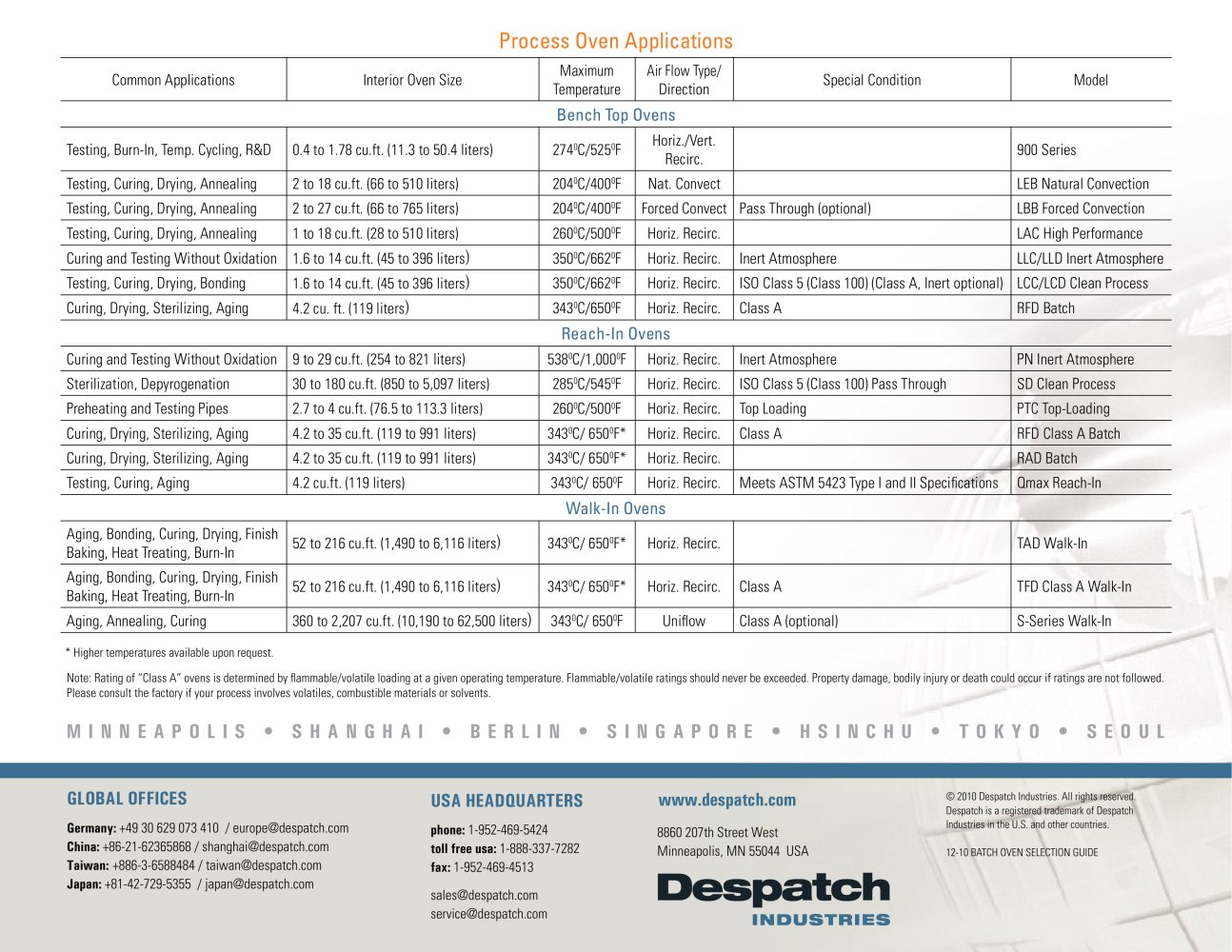

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Arial", sans-serif; } .font1 { font:10.00pt "Arial Black", sans-serif; } .font2 { font:5.00pt "Microsoft Sans Serif", sans-serif; } .font3 { font:5.60pt "Microsoft Sans Serif", sans-serif; } .font4 { font:6.00pt "Microsoft Sans Serif", sans-serif; } .font5 { font:8.00pt "Microsoft Sans Serif", sans-serif; } .font6 { font:9.00pt "Microsoft Sans Serif", sans-serif; } .font7 { font:10.00pt "Microsoft Sans Serif", sans-serif; } .font8 { font:11.00pt "Microsoft Sans Serif", sans-serif; } .font9 { font:12.00pt "Microsoft Sans Serif", sans-serif; } .font10 { font:12.00pt "Palatino Linotype", serif; } Process Oven Applications Common Applications Interior Oven Size Maximum Temperature Air Flow Type/ Direction Special Condition Model Bench Top Ovens Testing, Burn-In, Temp. Cycling, R&D 0.4 to 1.78 cu.ft. (11.3 to 50.4 liters) 2740C/5250F Horiz./Vert. Recirc. 900 Series Testing, Curing, Drying, Annealing 2 to 18 cu.ft. (66 to 510 liters) 2040C/4000F Nat. Convect LEB Natural Convection Testing, Curing, Drying, Annealing 2 to 27 cu.ft. (66 to 765 liters) 2040C/4000F Forced Convect Pass Through (optional) LBB Forced Convection Testing, Curing, Drying, Annealing 1 to 18 cu.ft. (28 to 510 liters) 2600C/5000F Horiz. Recirc. LAC High Performance Curing and Testing Without Oxidation 1.6 to 14 cu.ft. (45 to 396 liters) 3500C/6620F Horiz. Recirc. Inert Atmosphere LLC/LLD Inert Atmosphere Testing, Curing, Drying, Bonding 1.6 to 14 cu.ft. (45 to 396 liters) 3500C/6620F Horiz. Recirc. ISO Class 5 (Class 100) (Class A, Inert optional) LCC/LCD Clean Process Curing, Drying, Sterilizing, Aging 4.2 cu. ft. (119 liters) 3430C/6500F Horiz. Recirc. Class A RFD Batch Reach-In Ovens Curing and Testing Without Oxidation 9 to 29 cu.ft. (254 to 821 liters) 5380C/1,0000F Horiz. Recirc. Inert Atmosphere PN Inert Atmosphere Sterilization, Depyrogenation 30 to 180 cu.ft. (850 to 5,097 liters) 2850C/5450F Horiz. Recirc. ISO Class 5 (Class 100) Pass Through SD Clean Process Preheating and Testing Pipes 2.7 to 4 cu.ft. (76.5 to 113.3 liters) 2600C/5000F Horiz. Recirc. Top Loading PTC Top-Loading Curing, Drying, Sterilizing, Aging 4.2 to 35 cu.ft. (119 to 991 liters) 3430C/ 65 00F* Horiz. Recirc. Class A RFD Class A Batch Curing, Drying, Sterilizing, Aging 4.2 to 35 cu.ft. (119 to 991 liters) 3430C/ 65 00F* Horiz. Recirc. RAD Batch Testing, Curing, Aging 4.2 cu.ft. (119 liters) 3430C/ 6500F Horiz. Recirc. Meets ASTM 5423 Type I and II Specifications Qmax Reach-In Walk-In Ovens j/^^^^^^ Aging, Bonding, Curing, Drying, Finish Baking, Heat Treating, Burn-In 52 to 216 cu.ft. (1,490 to 6,116 liters) 3430C/ 65 00F* Horiz. Recirc. TAD Walk-In Aging, Bonding, Curing, Drying, Finish Baking, Heat Treating, Burn-In 52 to 216 cu.ft. (1,490 to 6,116 liters) 3430C/ 65 00F* Horiz. Recirc. Class A TFD Class A Walk-In Aging, Annealing, Curing 360 to 2,207 cu.ft. (10,190 to 62,500 liters) 3430C/ 6500F Uniflow Class A (optional) S-Series Walk-In * Higher temperatures available upon request. Note: Rating of "Class A" ovens is determined by flammable/volatile loading at a given operating temperature. Flammable/volatile ratings should never be exceeded. Property damage, bodily injury or death could occur if ratings are not followed. Please consult the factory if your process involves volatiles, combustible materials or solvents. PORE • HSINCHU • TOKYO • SEOUL GLOBAL OFFICES Germany: +49 30 629 073 410 / europe@despatch.com China: +86-21-62365868 / shanghai@despatch.com Taiwan: +886-3-6588484 / taiwan@despatch.com Japan: +81-42-729-5355 / japan@despatch.com usa headquarters phone: 1-952-469-5424 toll free usa: 1-888-337-7282 fax: 1-952-469-4513 sales@despatch.com service@despatch.com www.despatch.com 8860 207th Street West Minneapolis, MN 55044 USA © 2010 Despatch Industries. AllriflhtsiSSrvîV Despatch is a registered trademark of Despatch Industries in the U.S. and other countries. 12-10 BATCH OVEN SELECTION GUIDE INDUSTRIES
