THR-370/LE THR-370/PR Special model for mounting through walls.

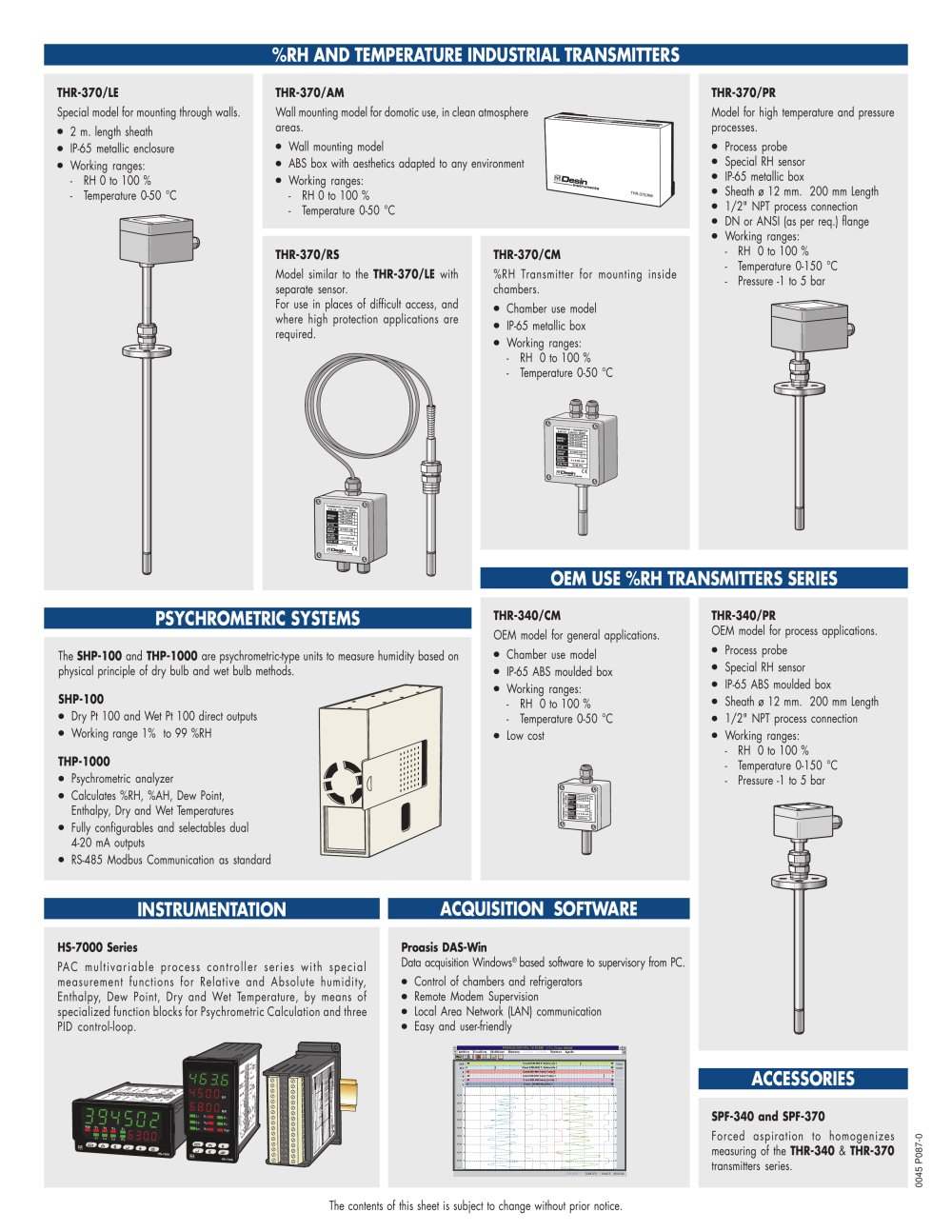

Relative Humidity Transmitters - 15886 %RH AND TEMPERATURE INDUSTRIAL TRANSMITTERS

Model for high temperature and pressureprocesses. THR-370/AM Wall mounting model for domotic use, in clean atmosphereareas. 2 m. length sheath IP-65 metallic enclosure Wall mounting model Process probe Working ranges:-RH 0 to 100 % -Temperature 0-50 °C ABS box with aesthetics adapted to any environment THR-370/CM Special RH sensor Working ranges: -RH 0 to 100 % -Temperature 0-50 °C %RH Transmitter for mounting insidechambers. IP-65 metallic box Sheath ø 12 mm. 200 mm Length 1/2" NPT process connection DN or ANSI (as per req.) flange Working ranges: -RH 0 to 100 % -Temperature 0-150 °C -Pressure -1 to 5 bar THR-370/RS Model similar to the THR-370/LE withseparate sensor. For use in places of difficult access, and where high protection applications are required. Chamber use model IP-65 metallic box Working ranges: -RH 0 to 100 % -Temperature 0-50 °C THR-340/CM OEM model for general applications. SHP-100 and THP-1000 are psychrometric-type units to measure humidity based onphysical principle of dry bulb and wet bulb methods.

OEM USE %RH TRANSMITTERS SERIES

SHP-100 THR-340/PR OEM model for process applications. Chamber use model Process probe IP-65 ABS moulded box Special RH sensor Working ranges:-RH 0 to 100 % -Temperature 0-50 °C IP-65 ABS moulded box Sheath ø 12 mm. 200 mm Length Dry Pt 100 and Wet Pt 100 direct outputs 1/2" NPT process connection Working range 1% to 99 %RH Low cost Working ranges: -RH 0 to 100 % -Temperature 0-150 °C -Pressure -1 to 5 bar THP-1000 Psychrometric analyzer Calculates %RH, %AH, Dew Point,Enthalpy, Dry and Wet Temperatures Fully configurables and selectables dual 4-20 mA outputs RS-485 Modbus Communication as standard

INSTRUMENTATION PSYCHROMETRIC SYSTEMS ACQUISITION SOFTWARE

HS-7000 Series Proasis DAS-Win PAC multivariable process controller series with specialmeasurement functions for Relative and Absolute humidity, Enthalpy, Dew Point, Dry and Wet Temperature, by means of specialized function blocks for Psychrometric Calculation and three PID control-loop. The Data acquisition Windows
® based software to supervisory from PC. Control of chambers and refrigerators Remote Modem Supervision Local Area Network (LAN) communication Easy and user-friendly

ACCESSORIES

SPF-340 and SPF-370 Forced aspiration to homogenizesmeasuring of the THR-340 & THR-370 transmitters series.
0045 P087-0 The contents of this sheet is subject to change without prior notice.
