PAPERLESS CHART RECORDERS

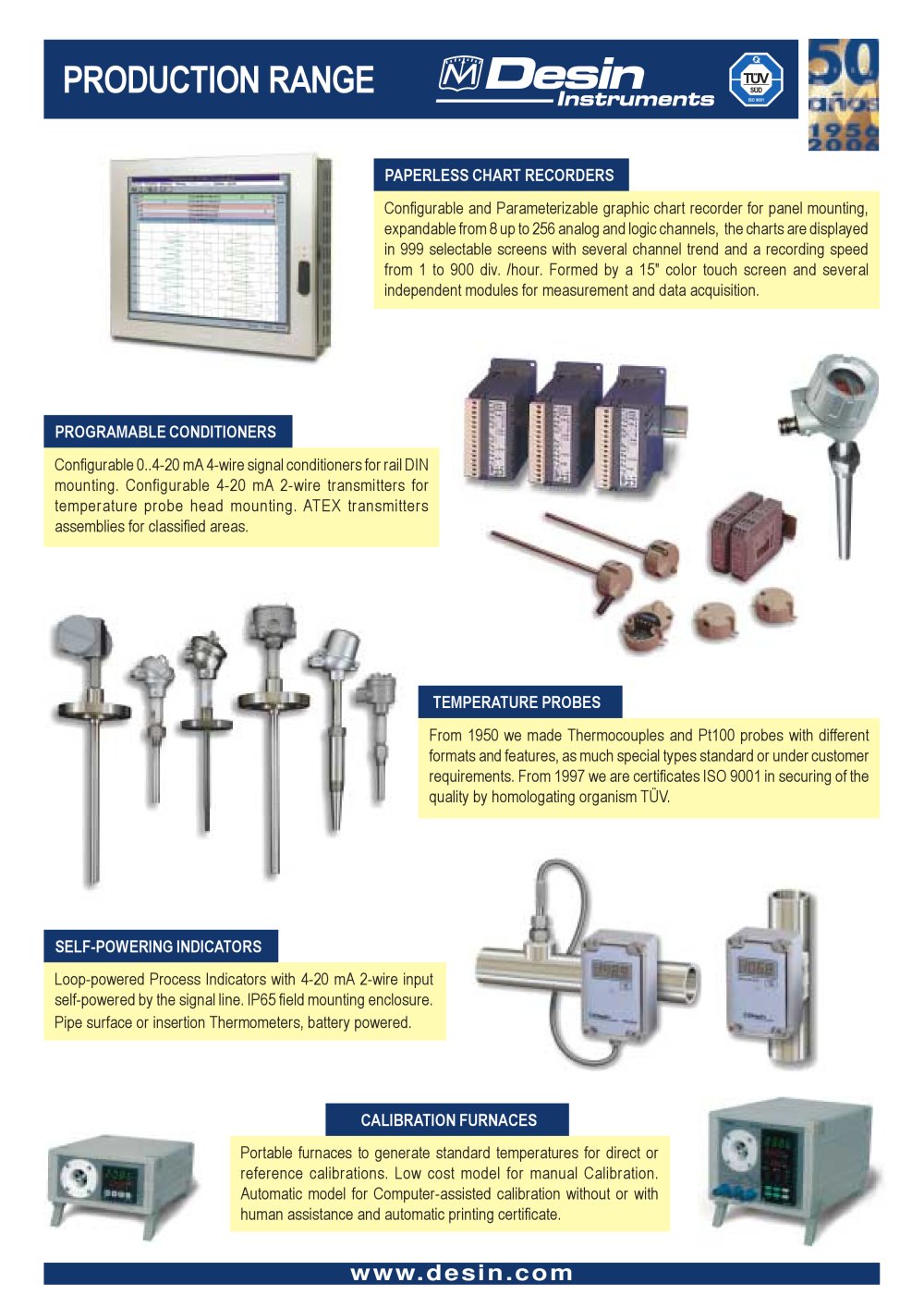

Production Range 2009 - 15886 PRODUCTION RANGE

Configurable and Parameterizable graphic chart recorder for panel mounting,expandable from 8 up to 256 analog and logic channels, the charts are displayed in 999 selectable screens with several channel trend and a recording speed from 1 to 900 div. /hour. Formed by a 15" color touch screen and several independent modules for measurement and data acquisition. PROGRAMABLE CONDITIONERS Configurable 0..4-20 mA 4-wire signal conditioners for rail DINmounting. Configurable 4-20 mA 2-wire transmitters for temperature probe head mounting. ATEX transmitters assemblies for classified areas. TEMPERATURE PROBES From 1950 we made Thermocouples and Pt100 probes with differentformats and features, as much special types standard or under customer requirements. From 1997 we are certificates ISO 9001 in securing of the quality by homologating organism TÜV. SELF-POWERING INDICATORS Loop-powered Process Indicators with 4-20 mA 2-wire inputself-powered by the signal line. IP65 field mounting enclosure.Pipe surface or insertion Thermometers, battery powered. CALIBRATION FURNACES Portable furnaces to generate standard temperatures for direct orreference calibrations. Low cost model for manual Calibration. Automatic model for Computer-assisted calibration without or with human assistance and automatic printing certificate.

www.desin.com
