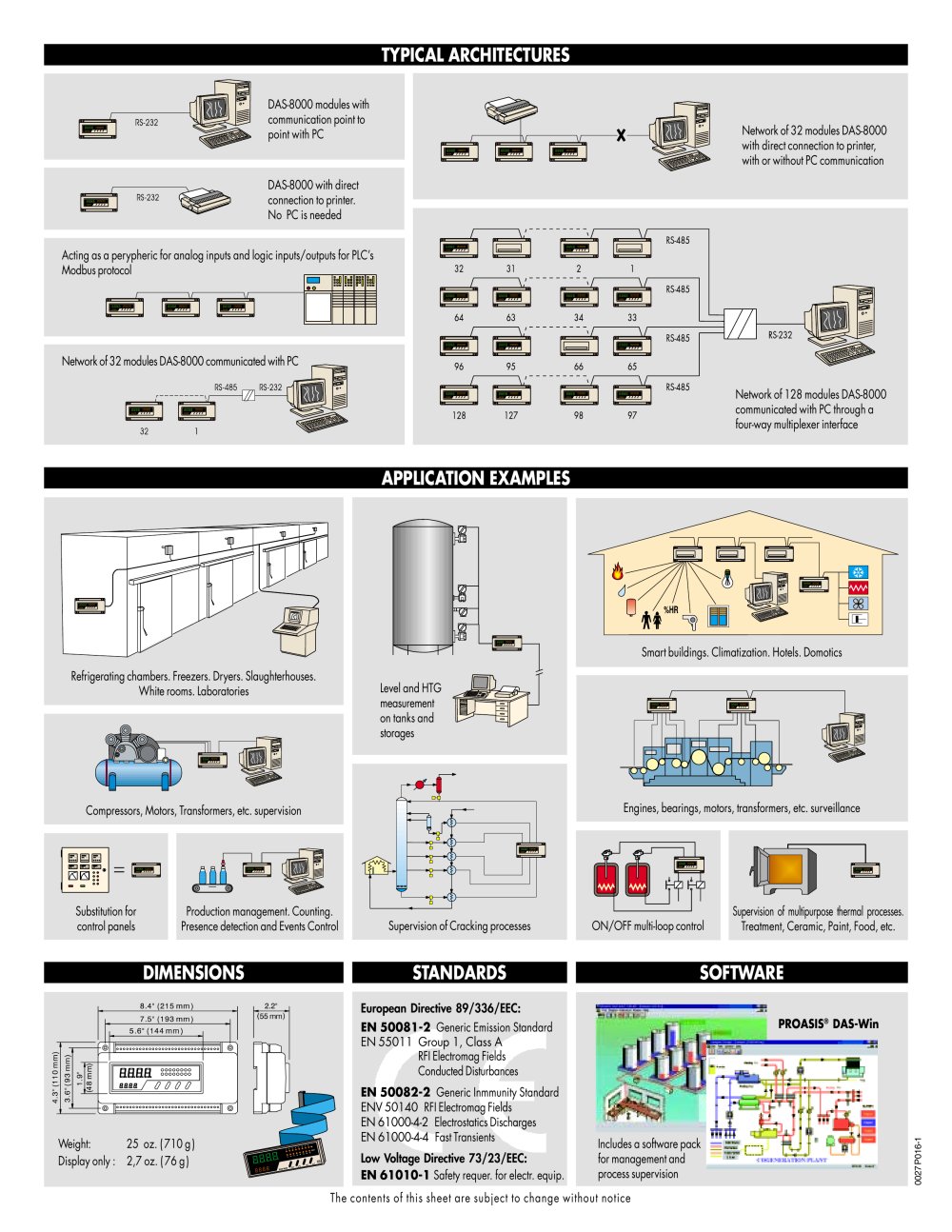

TYPICAL ARCHITECTURES

DAS-8000 modules with communication point to point with PC Network of 128 modules DAS-8000communicated with PC through a four-way multiplexer interface Network of 32 modules DAS-8000with direct connection to printer, with or without PC communicationDAS-8000 with directconnection to printer. No PC is needed Acting as a perypheric for analog inputs and logic inputs/outputs for PLC’s Modbus protocol Refrigerating chambers. Freezers. Dryers. Slaughterhouses.White rooms. LaboratoriesCompressors, Motors, Transformers, etc. supervisionSubstitution forcontrol panelsProduction management. Counting.Presence detection and Events Control Level and HTGmeasurement on tanks and storages Supervision of Cracking processes Smart buildings. Climatization. Hotels. Domotics Engines, bearings, motors, transformers, etc. surveillanceON/OFF multi-loop control

APPLICATION EXAMPLES

Supervision of multipurpose thermal processes. Treatment, Ceramic, Paint, Food, etc. Weight:25 oz. (710 g)Display only :2,7 oz. (76 g)

DIMENSIONS STANDARDS SOFTWARE

PROASIS European Directive 89/336/EEC: EN 50081-2 Generic Emission Standard
® DAS-Win EN 55011Group 1, Class A RFI Electromag FieldsConducted Disturbances EN 50082-2 Generic Inmmunity Standard ENV 50140 RFI Electromag Fields EN 61000-4-2 Electrostatics Discharges EN 61000-4-4 Fast Transients Low Voltage Directive 73/23/EEC: EN 61010-1 Safety requer. for electr. equip. Network of 32 modules DAS-8000 communicated with PC Includes a software packfor management and process supervision
0027 P016-1 The contents of this sheet are subject to change without notice
