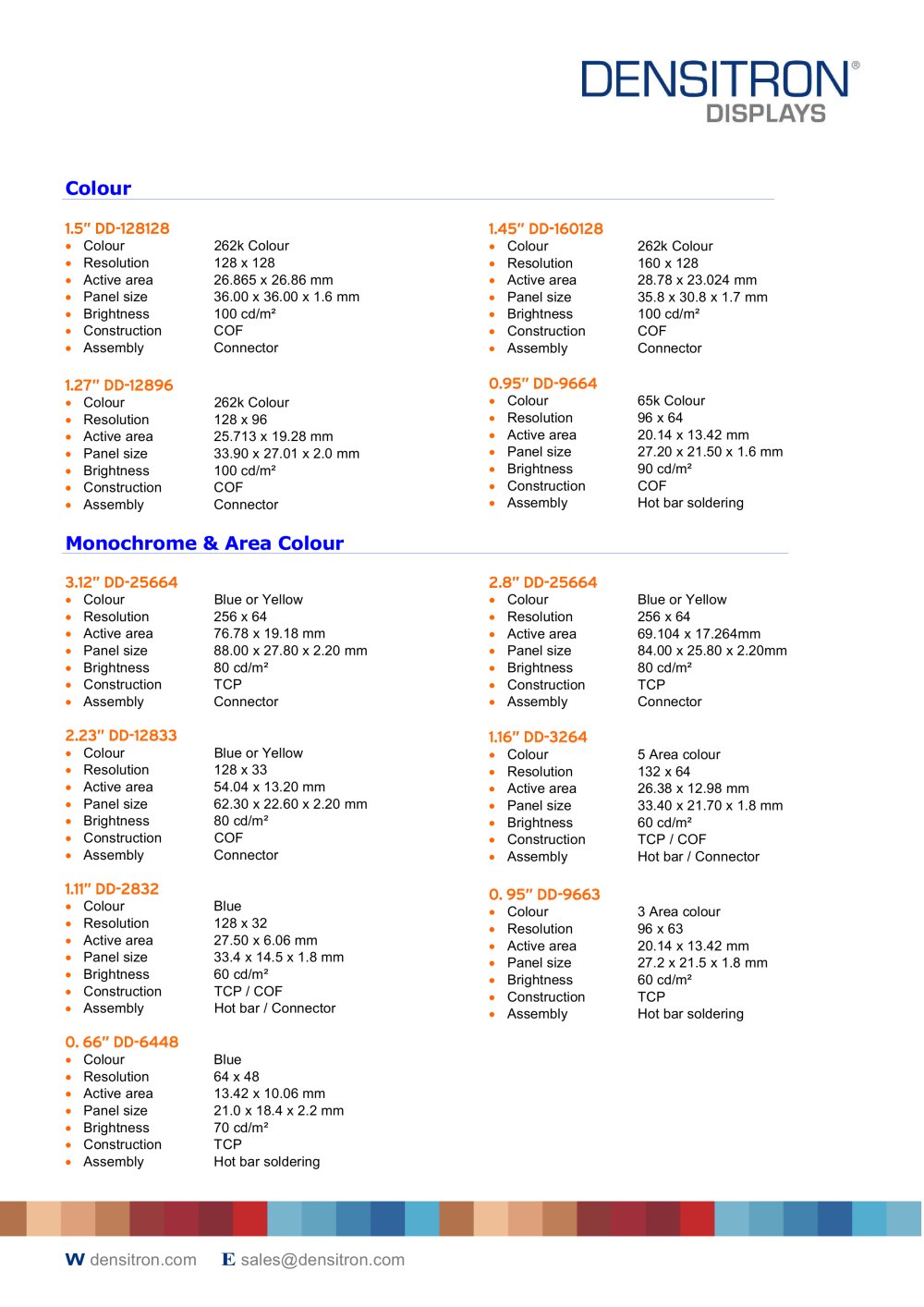

Colour

1.5” DD-128128 1.45” DD-160128

• Colour 262k Colour • Colour 262k Colour • Resolution 128 x 128 • Resolution 160 x 128 • Active area 26.865 x 26.86 mm • Active area 28.78 x 23.024 mm • Panel size 36.00 x 36.00 x 1.6 mm • Panel size 35.8 x 30.8 x 1.7 mm • Brightness 100 cd/m² • Brightness 100 cd/m² • Construction COF • Construction COF • Assembly Connector • Assembly Connector

1.27” DD-12896 0.95” DD-9664

• Colour 262k Colour • Colour 65k Colour • Resolution 128 x 96 • Resolution 96 x 64 • Active area 25.713 x 19.28 mm • Active area 20.14 x 13.42 mm • Panel size 33.90 x 27.01 x 2.0 mm • Panel size 27.20 x 21.50 x 1.6 mm • Brightness 100 cd/m² • Brightness 90 cd/m² • Construction COF • Construction COF • Assembly Connector • Assembly Hot bar soldering

Monochrome & Area Colour

3.12” DD-25664 2.8” DD-25664

• Colour Blue or Yellow • Colour Blue or Yellow • Resolution 256 x 64 • Resolution 256 x 64 • Active area 76.78 x 19.18 mm • Active area 69.104 x 17.264mm • Panel size 88.00 x 27.80 x 2.20 mm • Panel size 84.00 x 25.80 x 2.20mm • Brightness 80 cd/m² • Brightness 80 cd/m² • Construction TCP • Construction TCP • Assembly Connector • Assembly Connector

2.23” DD-12833 1.16” DD-3264

• Colour Blue or Yellow • Colour 5 Area colour • Resolution 128 x 33 • Resolution 132 x 64 • Active area 54.04 x 13.20 mm • Active area 26.38 x 12.98 mm • Panel size 62.30 x 22.60 x 2.20 mm • Panel size 33.40 x 21.70 x 1.8 mm • Brightness 80 cd/m² • Brightness 60 cd/m² • Construction COF • Construction TCP / COF • Assembly Connector • Assembly Hot bar / Connector

1.11” DD-2832

• Colour Blue

0. 95” DD-9663

• Colour 3 Area colour • Resolution 128 x 32 • Resolution 96 x 63 • Active area 27.50 x 6.06 mm • Active area 20.14 x 13.42 mm • Panel size 33.4 x 14.5 x 1.8 mm • Panel size 27.2 x 21.5 x 1.8 mm • Brightness 60 cd/m² • Brightness 60 cd/m² • Construction TCP / COF • Construction TCP • Assembly Hot bar / Connector • Assembly Hot bar soldering

0. 66” DD-6448

• Colour Blue • Resolution 64 x 48 • Active area 13.42 x 10.06 mm • Panel size 21.0 x 18.4 x 2.2 mm • Brightness 70 cd/m² • Construction TCP • Assembly Hot bar soldering
