OLED DISPLAYS

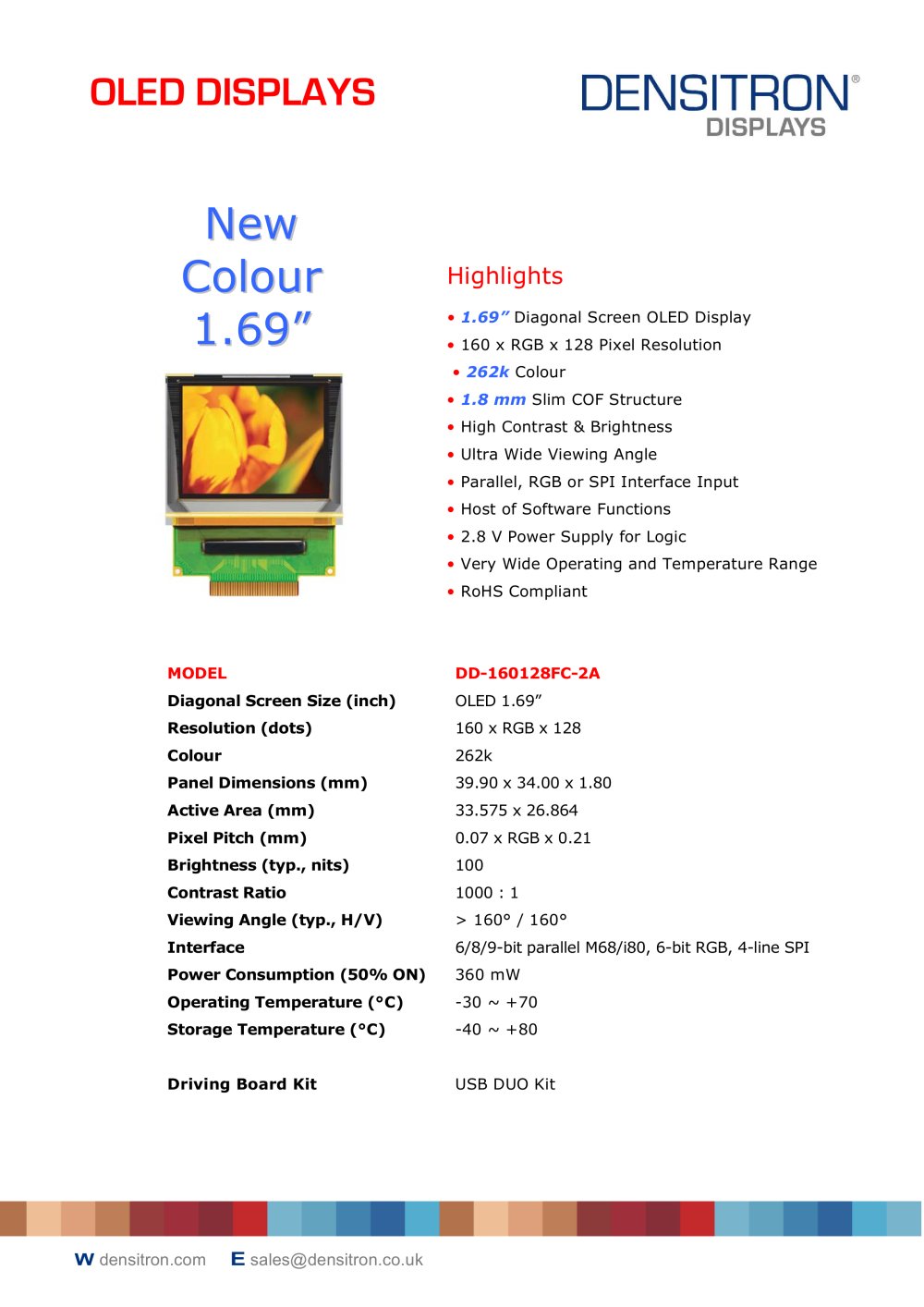

New 1.69" OLED - 14683 NNeewwCCoolloouurr1

Highlights

1..6699 ” ”

? 1.69” Diagonal Screen OLED Display ?160 x RGB x 128 Pixel Resolution ? 262k Colour ? 1.8 mm Slim COF Structure ?High Contrast & Brightness ?Ultra Wide Viewing Angle ? Parallel, RGB or SPI Interface Input ? Host of Software Functions ? 2.8 V Power Supply for Logic ? Very Wide Operating and Temperature Range ? RoHS Compliant MODELDD-160128FC-2A Diagonal Screen Size (inch) OLED 1.69” Resolution (dots) 160 x RGB x 128 Colour 262k Panel Dimensions (mm) 39.90 x 34.00 x 1.80 Active Area (mm) 33.575 x 26.864 Pixel Pitch (mm) 0.07 x RGB x 0.21 Brightness (typ., nits) 100 Contrast Ratio 1000 : 1 Viewing Angle (typ., H/V) > 160° / 160° Interface 6/8/9-bit parallel M68/i80, 6-bit RGB, 4-line SPI Power Consumption (50% ON) 360 mW Operating Temperature (°C) -30 ~ +70 Storage Temperature (°C) -40 ~ +80 Driving Board Kit USB DUO Kit

W densitron.com

E
