OLED DISPLAYS

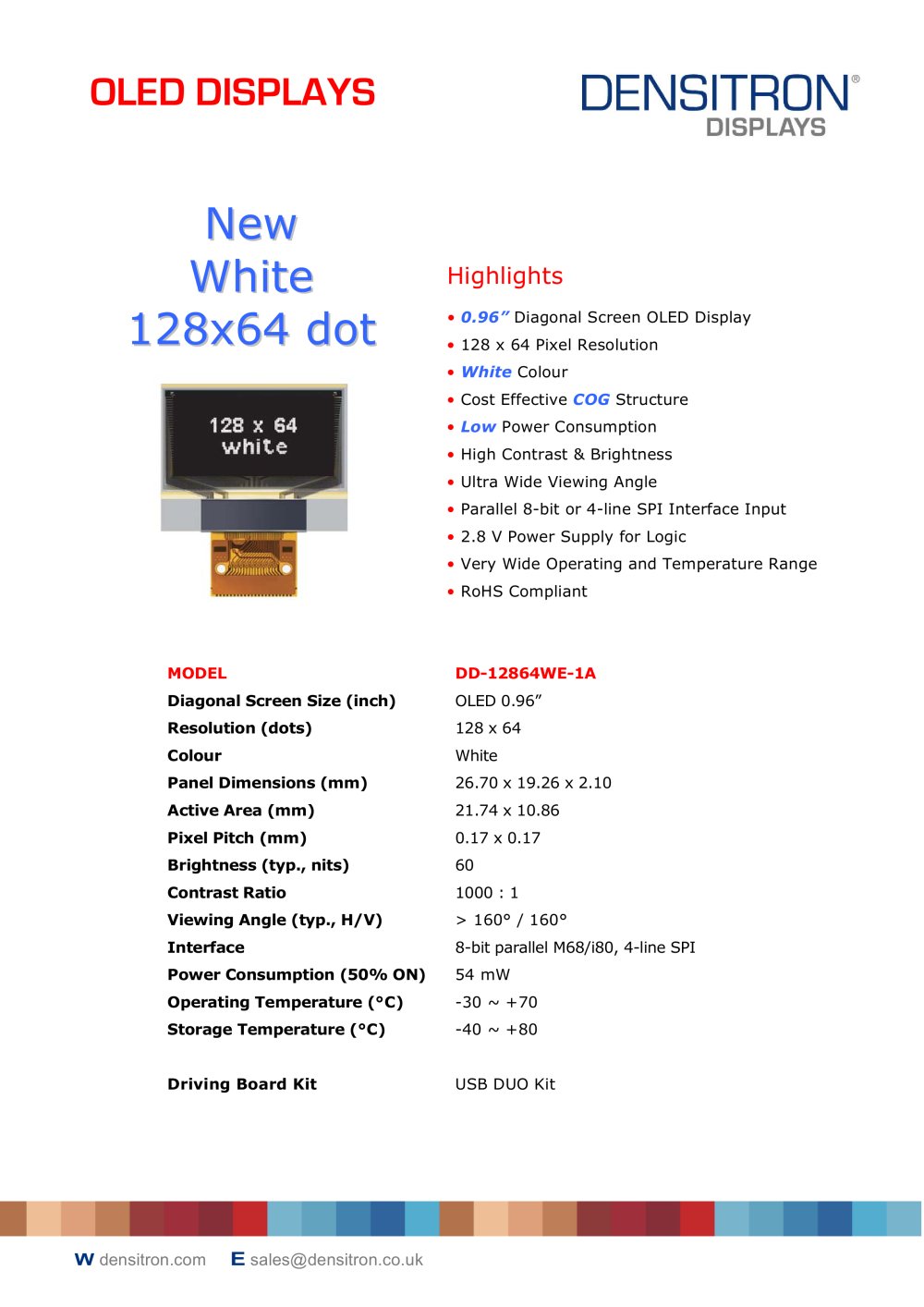

New 0.96" OLED - 14683 NNeewwWWhhiittee1

Highlights

12288xx6644ddoott

? 0.96” Diagonal Screen OLED Display ?128 x 64 Pixel Resolution ? White Colour ? Cost Effective COG Structure ? Low Power Consumption ?High Contrast & Brightness ?Ultra Wide Viewing Angle ? Parallel 8-bit or 4-line SPI Interface Input ? 2.8 V Power Supply for Logic ? Very Wide Operating and Temperature Range ? RoHS Compliant MODELDD-12864WE-1A Diagonal Screen Size (inch) OLED 0.96” Resolution (dots) 128 x 64 Colour White Panel Dimensions (mm) 26.70 x 19.26 x 2.10 Active Area (mm) 21.74 x 10.86 Pixel Pitch (mm) 0.17 x 0.17 Brightness (typ., nits) 60 Contrast Ratio 1000 : 1 Viewing Angle (typ., H/V) > 160° / 160° Interface 8-bit parallel M68/i80, 4-line SPI Power Consumption (50% ON) 54 mW Operating Temperature (°C) -30 ~ +70 Storage Temperature (°C) -40 ~ +80 Driving Board Kit USB DUO Kit

W densitron.com
