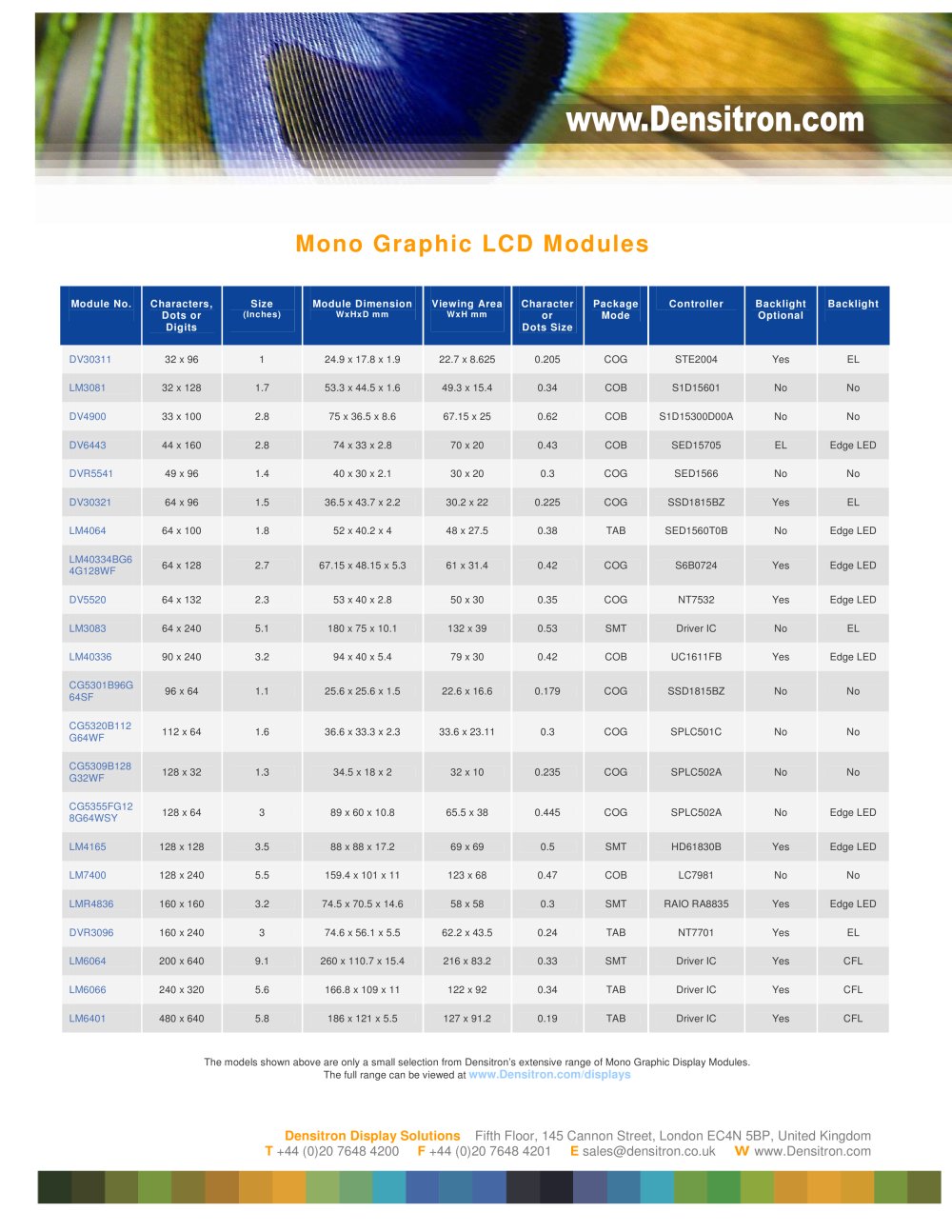

Mono Graphic LCD Modules

Module No. Characters, Size Module Dimension Viewing Area Character Package Controller Backlight Backlight Dots or
(Inches) WxHxD mm WxH mm or Mode Optional Digits Dots Size DV30311 32 x 96 1 24.9 x 17.8 x 1.9 22.7 x 8.625 0.205 COG STE2004 Yes EL LM3081 32 x 128 1.7 53.3 x 44.5 x 1.6 49.3 x 15.4 0.34 COB S1D15601 No No DV4900 33 x 100 2.8 75 x 36.5 x 8.6 67.15 x 25 0.62 COB S1D15300D00A No No DV6443 44 x 160 2.8 74 x 33 x 2.8 70 x 20 0.43 COB SED15705 EL Edge LED DVR5541 49 x 96 1.4 40 x 30 x 2.1 30 x 20 0.3 COG SED1566 No No DV30321 64 x 96 1.5 36.5 x 43.7 x 2.2 30.2 x 22 0.225 COG SSD1815BZ Yes EL LM4064 64 x 100 1.8 52 x 40.2 x 4 48 x 27.5 0.38 TAB SED1560T0B No Edge LED LM40334BG6 4G128WF 64 x 128 2.7 67.15 x 48.15 x 5.3 61 x 31.4 0.42 COG S6B0724 Yes Edge LED DV5520 64 x 132 2.3 53 x 40 x 2.8 50 x 30 0.35 COG NT7532 Yes Edge LED LM3083 64 x 240 5.1 180 x 75 x 10.1 132 x 39 0.53 SMT Driver IC No EL LM40336 90 x 240 3.2 94 x 40 x 5.4 79 x 30 0.42 COB UC1611FB Yes Edge LED CG5301B96G 64SF 96 x 64 1.1 25.6 x 25.6 x 1.5 22.6 x 16.6 0.179 COG SSD1815BZ No No CG5320B112 G64WF 112 x 64 1.6 36.6 x 33.3 x 2.3 33.6 x 23.11 0.3 COG SPLC501C No No CG5309B128 G32WF 128 x 32 1.3 34.5 x 18 x 2 32 x 10 0.235 COG SPLC502A No No CG5355FG12 8G64WSY 128 x 64 3 89 x 60 x 10.8 65.5 x 38 0.445 COG SPLC502A No Edge LED LM4165 128 x 128 3.5 88 x 88 x 17.2 69 x 69 0.5 SMT HD61830B Yes Edge LED LM7400 128 x 240 5.5 159.4 x 101 x 11 123 x 68 0.47 COB LC7981 No No LMR4836 160 x 160 3.2 74.5 x 70.5 x 14.6 58 x 58 0.3 SMT RAIO RA8835 Yes Edge LED DVR3096 160 x 240 3 74.6 x 56.1 x 5.5 62.2 x 43.5 0.24 TAB NT7701 Yes EL LM6064 200 x 640 9.1 260 x 110.7 x 15.4 216 x 83.2 0.33 SMT Driver IC Yes CFL LM6066 240 x 320 5.6 166.8 x 109 x 11 122 x 92 0.34 TAB Driver IC Yes CFL LM6401 480 x 640 5.8 186 x 121 x 5.5 127 x 91.2 0.19 TAB Driver IC Yes CFL The models shown above are only a small selection from Densitron’s extensive range of Mono Graphic Display Modules. The full range can be viewed at

www.Densitron.com/displays
