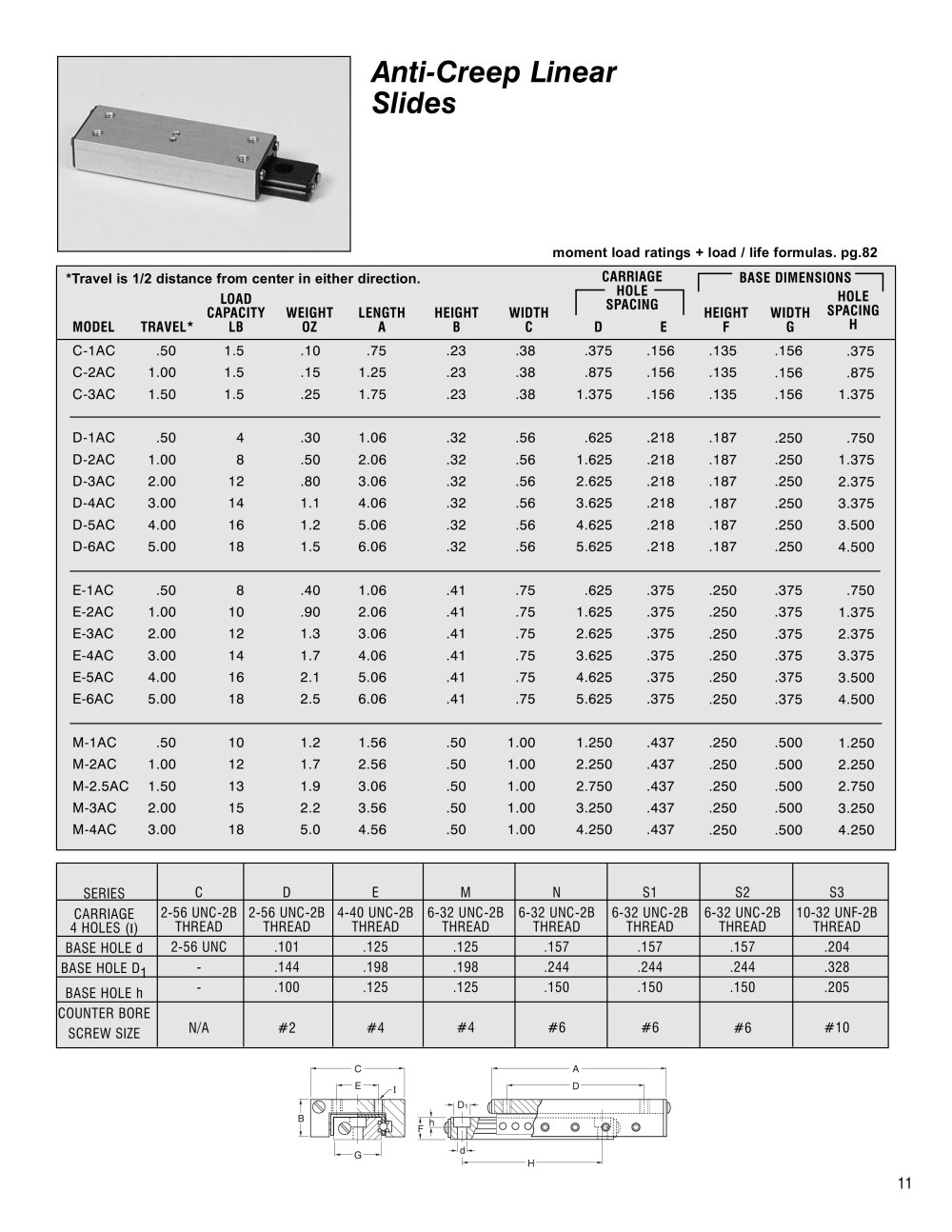

Anti-Creep Linear Slides
moment load ratings + load / life formulas. pg.82
Travel is 1/2 distance from center in either direction. CARRIAGE I- BASE DIMENSIONS-1
LOAD I SpHA°!jNr I HOLE
CAPACITY WEIGHT LENGTH HEIGHT WIDTH SPACING HEIGHT WIDTH SPACING
MODEL
TRAVEL*
LB
OZ
A
B
C
D
E
F
G
H
C-1AC
.50
1.5
.10
.75
.23
.38
.375
.156
.135
.156
.375
C-2AC
1.00
1.5
.15
1.25
.23
.38
.875
.156
.135
.156
.875
C-3AC
1.50
1.5
.25
1.75
.23
.38
1.375
.156
.135
.156
1.375
D-1AC
.50
4
.30
1.06
.32
.56
.625
.218
.187
.250
.750
D-2AC
1.00
8
.50
2.06
.32
.56
1.625
.218
.187
.250
1.375
D-3AC
2.00
12
.80
3.06
.32
.56
2.625
.218
.187
.250
2.375
D-4AC
3.00
14
1.1
4.06
.32
.56
3.625
.218
.187
.250
3.375
D-5AC
4.00
16
1.2
5.06
.32
.56
4.625
.218
.187
.250
3.500
D-6AC
5.00
18
1.5
6.06
.32
.56
5.625
.218
.187
.250
4.500
E-1AC
.50
8
.40
1.06
.41
.75
.625
.375
.250
.375
.750
E-2AC
1.00
10
.90
2.06
.41
.75
1.625
.375
.250
.375
1.375
E-3AC
2.00
12
1.3
3.06
.41
.75
2.625
.375
.250
.375
2.375
E-4AC
3.00
14
1.7
4.06
.41
.75
3.625
.375
.250
.375
3.375
E-5AC
4.00
16
2.1
5.06
.41
.75
4.625
.375
.250
.375
3.500
E-6AC
5.00
18
2.5
6.06
.41
.75
5.625
.375
.250
.375
4.500
M-1AC
.50
10
1.2
1.56
.50
1.00
1.250
.437
.250
.500
1.250
M-2AC
1.00
12
1.7
2.56
.50
1.00
2.250
.437
.250
.500
2.250
M-2.5AC
1.50
13
1.9
3.06
.50
1.00
2.750
.437
.250
.500
2.750
M-3AC
2.00
15
2.2
3.56
.50
1.00
3.250
.437
.250
.500
3.250
M-4AC
3.00
18
5.0
4.56
.50
1.00
4.250
.437
.250
.500
4.250
SERIES
C
D
E
M
N
S1
S2
S3
CARRIAGE 4 HOLES (I)
2-56 UNC-2B THREAD
2-56 UNC-2B THREAD
4-40 UNC-2B THREAD
6-32 UNC-2B THREAD
6-32 UNC-2B THREAD
6-32 UNC-2B THREAD
6-32 UNC-2B THREAD
10-32 UNF-2B
THREAD
BASE HOLE d
2-56 UNC
.101
.125
.125
.157
.157
.157
.204
BASE HOLE D1
-
.144
.198
.198
.244
.244
.244
.328
BASE HOLE h
-
.100
.125
.125
.150
.150
.150
.205
COUNTER BORE SCREW SIZE
N/A
#2
#4
#4
#6
#6
#6
#10
11
