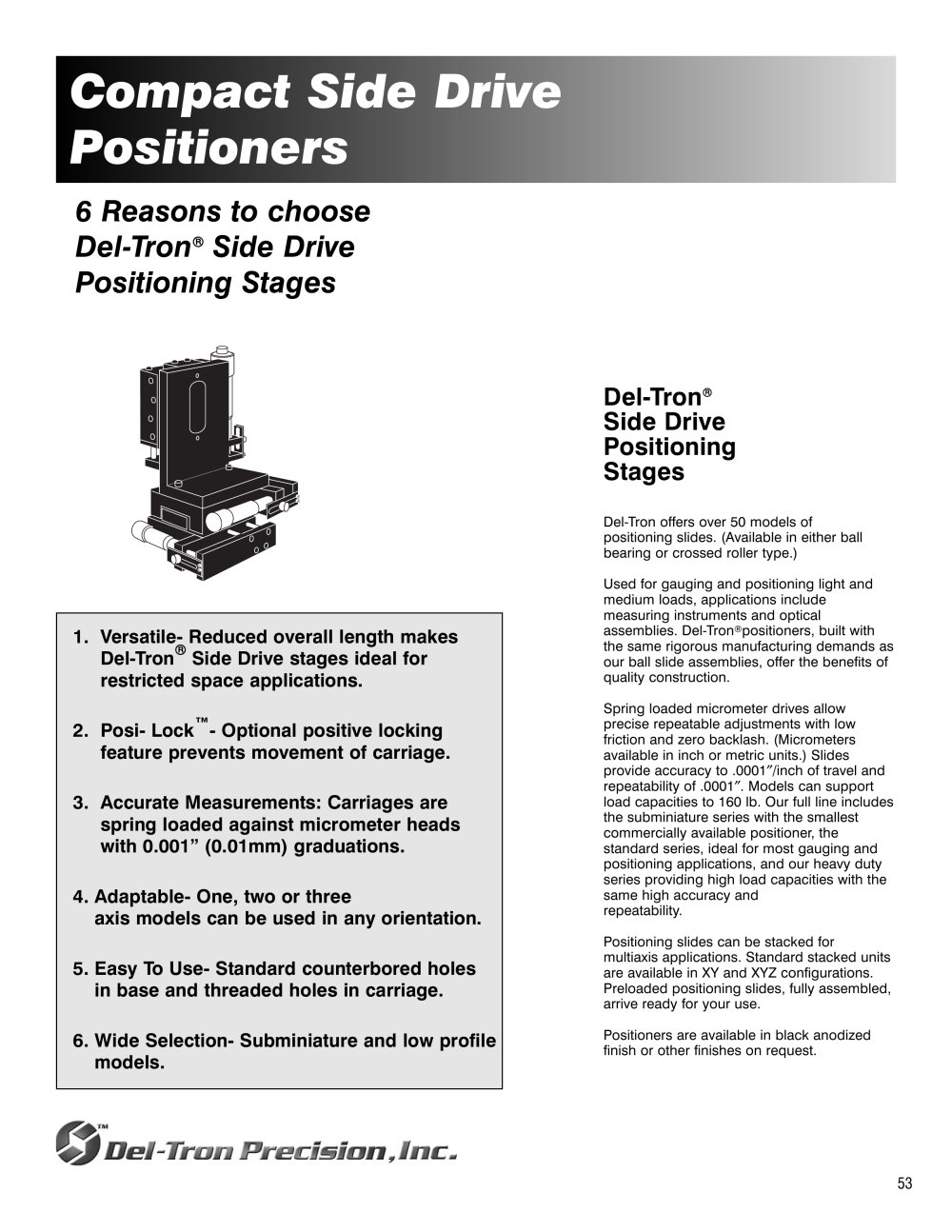

| 6 Reasons to choose Del-Tron® Side Drive Positioning Stages | ||||||||||||
| Del-Tron® Side Drive Positioning Stages | ||||||||||||
| Del-Tron offers over 50 models of positioning slides. (Available in either ball bearing or crossed roller type.) Used for gauging and positioning light and medium loads, applications include measuring instruments and optical assemblies. Del-Tron®positioners, built with the same rigorous manufacturing demands as our ball slide assemblies, offer the benefits of quality construction. Spring loaded micrometer drives allow precise repeatable adjustments with low friction and zero backlash. (Micrometers available in inch or metric units.) Slides provide accuracy to .0001 "/inch of travel and repeatability of .0001". Models can support load capacities to 160 lb. Our full line includes the subminiature series with the smallest commercially available positioner, the standard series, ideal for most gauging and positioning applications, and our heavy duty series providing high load capacities with the same high accuracy and repeatability. Positioning slides can be stacked for multiaxis applications. Standard stacked units are available in XY and XYZ configurations. Preloaded positioning slides, fully assembled, arrive ready for your use. Positioners are available in black anodized finish or other finishes on request. | ||||||||||||
| 1. Versatile- Reduced overall length makes Del-Tron® Side Drive stages ideal for restricted space applications. tm 2. Posi- Lock - Optional positive locking feature prevents movement of carriage. 3. Accurate Measurements: Carriages are spring loaded against micrometer heads with 0.001" (0.01mm) graduations. 4. Adaptable- One, two or three axis models can be used in any orientation. 5. Easy To Use- Standard counterbored holes in base and threaded holes in carriage. 6. Wide Selection- Subminiature and low profile models. | ||||||||||||
| 53 | ||||||||||||
