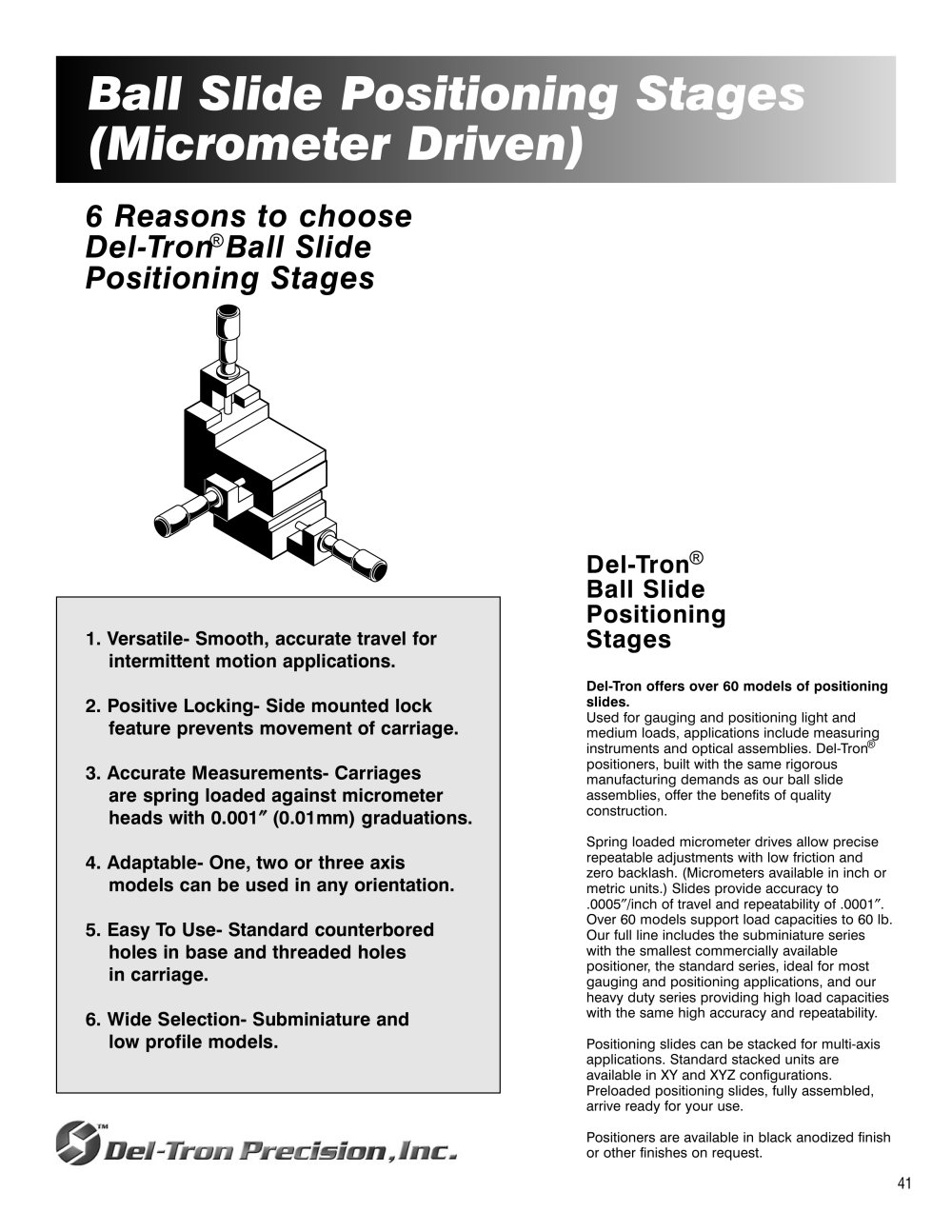

Ball Slide Positioning Stages(Micrometer Driven)

6 Reasons to chooseDel-Tron Ball Slide Positioning Stages

® ®

Del-Tron Ball Slide Positioning Stages

1. Versatile- Smooth, accurate travel forintermittent motion applications. 2. Positive Locking- Side mounted lockfeature prevents movement of carriage. 3. Accurate Measurements- Carriagesare spring loaded againstmicrometer heads with 0.001

Del-Tron offers over 60 models of positioningslides. Used for gauging and positioning light and medium loads, applications include measuring instruments and optical assemblies. Del-Tronpositioners, built with the same rigorous manufacturing demands as our ball slide assemblies, offer the benefits of quality construction.Spring loaded micrometer drives allow preciserepeatable adjustments with low friction and zero backlash. (Micrometers available in inch or metric units.) Slides provide accuracy to.0005 ″ /inch of travel and repeatability of .0001 ″ .Over 60 models support load capacities to 60 lb. Our full line includes the subminiature series with the smallest commercially available positioner, the standard series, ideal for most gauging and positioning applications, and our heavy duty series providing high load capacities with the same high accuracy and repeatability.Positioning slides can be stacked for multi-axisapplications. Standard stacked units are available in XY and XYZ configurations. Preloaded positioning slides, fully assembled, arrive ready for your use.Positioners are available in black anodized finishor other finishes on request.
®

″ (0.01mm) graduations.4. Adaptable- One, two or three axismodelscan be used in any orientation. 5. Easy To Use- Standardcounterboredholes inbase andthreaded holes in carriage.6. Wide Selection- Subminiature and low profile models.
