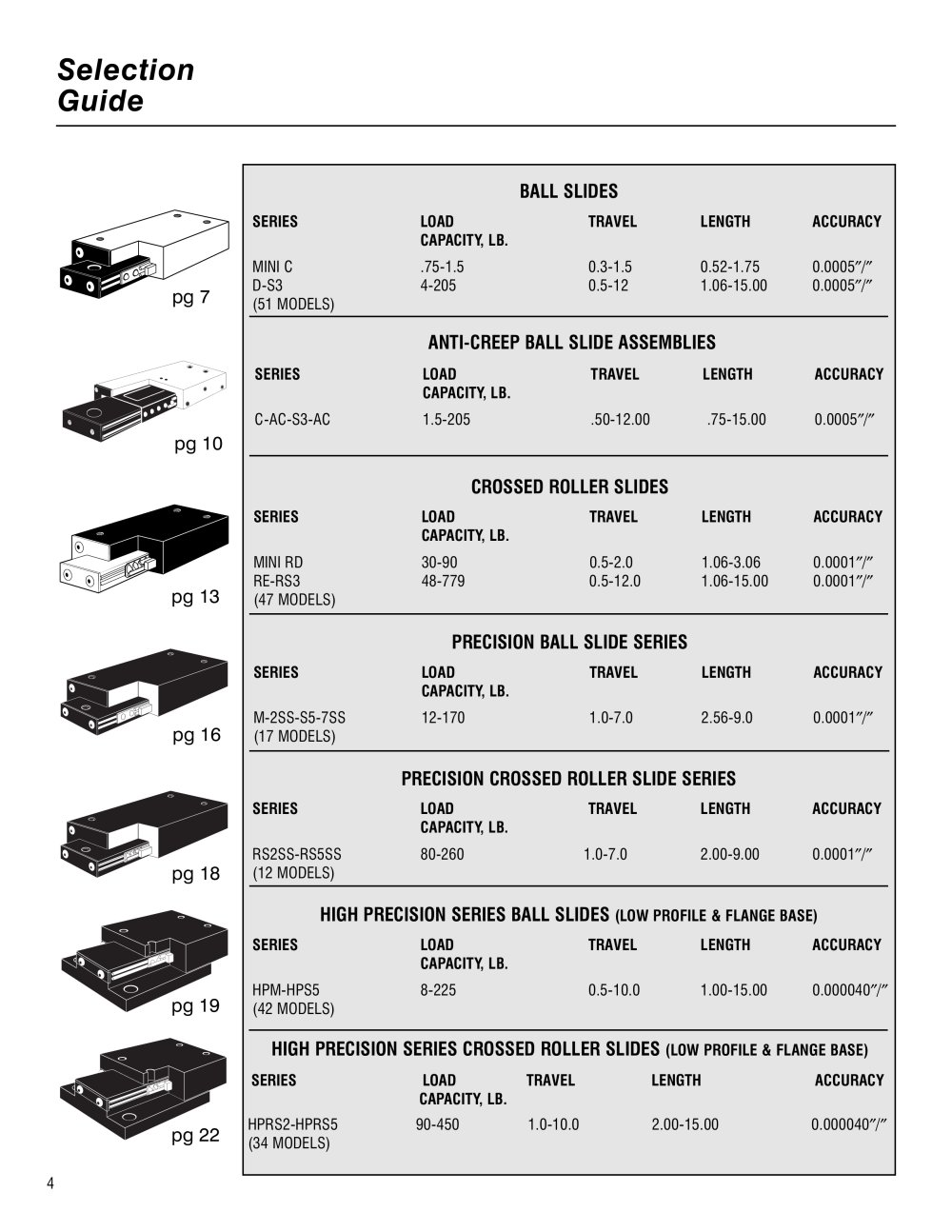

SelectionGuide

BALL SLIDES

SERIESLOADTRAVELLENGTHACCURACYCAPACITY, LB. MINI C.75-1.50.3-1.50.52-1.750.0005 ″ / ″

pg 7 pg 13pg 16pg 18pg 19pg 22

D-S34-2050.5-121.06-15.000.0005 ″ / ″ (51 MODELS)

ANTI-CREEP BALL SLIDE ASSEMBLIES

SERIESLOADTRAVELLENGTHACCURACYCAPACITY, LB. C-AC-S3-AC1.5-205.50-12.00.75-15.00 0.0005 ″ / ″

pg 10 CROSSED ROLLER SLIDES

SERIESLOADTRAVELLENGTHACCURACYCAPACITY, LB. MINI RD30-900.5-2.01.06-3.060.0001 ″ / ″ RE-RS348-7790.5-12.01.06-15.000.0001 ″ / ″ (47 MODELS)

PRECISION BALL SLIDE SERIES

SERIESLOADTRAVELLENGTHACCURACYCAPACITY, LB. M-2SS-S5-7SS12-1701.0-7.02.56-9.00.0001 ″ / ″ (17 MODELS)

PRECISION CROSSED ROLLER SLIDE SERIES

SERIESLOADTRAVELLENGTHACCURACYCAPACITY, LB. RS2SS-RS5SS80-2601.0-7.02.00-9.000.0001 ″ / ″ (12 MODELS)

HIGH PRECISION SERIES BALL SLIDES

(LOW PROFILE & FLANGE BASE) SERIESLOADTRAVELLENGTHACCURACYCAPACITY, LB. HPM-HPS58-2250.5-10.01.00-15.000.000040 ″ / ″ (42 MODELS)

HIGH PRECISION SERIES CROSSED ROLLER SLIDES

(LOW PROFILE & FLANGE BASE) SERIESLOADTRAVELLENGTHACCURACYCAPACITY, LB. HPRS2-HPRS590-4501.0-10.02.00-15.000.000040 ″ / ″ (34 MODELS) 4
