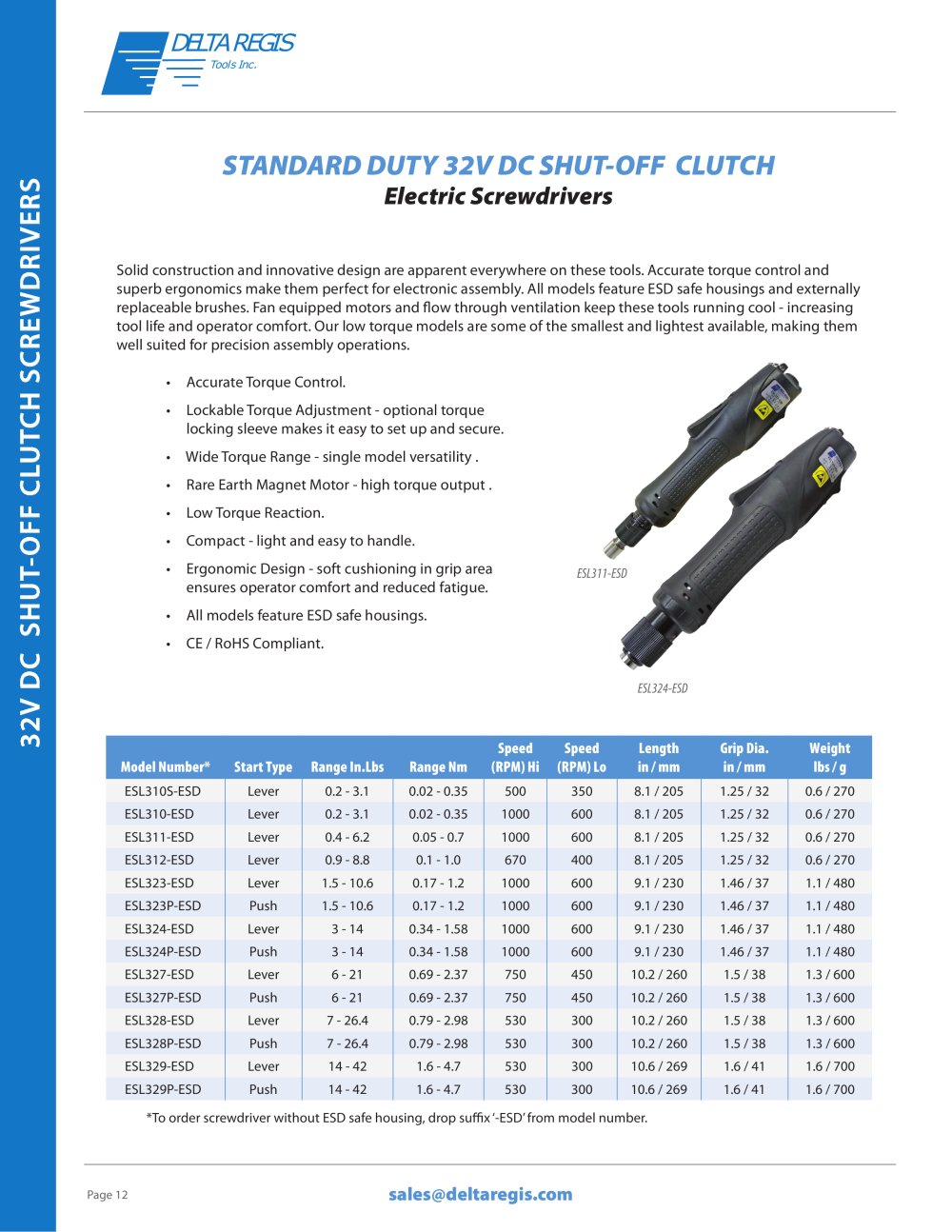

STANDARD DUTY 32V DC SHUT-OFF CLUTCH Electric Screwdrivers32V DC SHUT-OFF CLUTCH SCREWDRIVERS DELTA REGISTools Inc. sales@deltaregis.com Solid construction and innovative design are apparent everywhere on these tools. Accurate torque control and superb ergonomics make them perfect for electronic assembly. All models feature ESD safe housings and externally replaceable brushes. Fan equipped motors and flow through ventilation keep these tools running cool - increasing tool life and operator comfort. Our low torque models are some of the smallest and lightest available, making them well suited for precision assembly operations. • Accurate Torque Control. • Lockable Torque Adjustment - optional torque locking sleeve makes it easy to set up and secure. • Wide Torque Range - single model versatility . • Rare Earth Magnet Motor - high torque output . • Low Torque Reaction. • Compact - light and easy to handle. • Ergonomic Design - soft cushioning in grip area ensures operator comfort and reduced fatigue. • All models feature ESD safe housings. • CE / RoHS Compliant.300 Series Model Number* Start Type Range In.Lbs Range Nm Speed (RPM) Hi Speed (RPM) Lo Length in / mm Grip Dia. in / mm Weight lbs / g ESL310S-ESD Lever 0.2 - 3.1 0.02 - 0.35 500 350 8.1 / 205 1.25 / 32 0.6 / 270 ESL310-ESD Lever 0.2 - 3.1 0.02 - 0.35 1000 600 8.1 / 205 1.25 / 32 0.6 / 270 ESL311-ESD Lever 0.4 - 6.2 0.05 - 0.7 1000 600 8.1 / 205 1.25 / 32 0.6 / 270 ESL312-ESD Lever 0.9 - 8.8 0.1 - 1.0 670 400 8.1 / 205 1.25 / 32 0.6 / 270 ESL323-ESD Lever 1.5 - 10.6 0.17 - 1.2 1000 600 9.1 / 230 1.46 / 37 1.1 / 480 ESL323P-ESD Push 1.5 - 10.6 0.17 - 1.2 1000 600 9.1 / 230 1.46 / 37 1.1 / 480 ESL324-ESD Lever 3 - 14 0.34 - 1.58 1000 600 9.1 / 230 1.46 / 37 1.1 / 480 ESL324P-ESD Push 3 - 14 0.34 - 1.58 1000 600 9.1 / 230 1.46 / 37 1.1 / 480 ESL327-ESD Lever 6 - 21 0.69 - 2.37 750 450 10.2 / 260 1.5 / 38 1.3 / 600 ESL327P-ESD Push 6 - 21 0.69 - 2.37 750 450 10.2 / 260 1.5 / 38 1.3 / 600 ESL328-ESD Lever 7 - 26.4 0.79 - 2.98 530 300 10.2 / 260 1.5 / 38 1.3 / 600 ESL328P-ESD Push 7 - 26.4 0.79 - 2.98 530 300 10.2 / 260 1.5 / 38 1.3 / 600 ESL329-ESD Lever 14 - 42 1.6 - 4.7 530 300 10.6 / 269 1.6 / 41 1.6 / 700 ESL329P-ESD Push 14 - 42 1.6 - 4.7 530 300 10.6 / 269 1.6 / 41 1.6 / 700 ESL311-ESD ESL324-ESD Page 12 *To order screwdriver without ESD safe housing, drop suffix ‘-ESD’ from model number.
