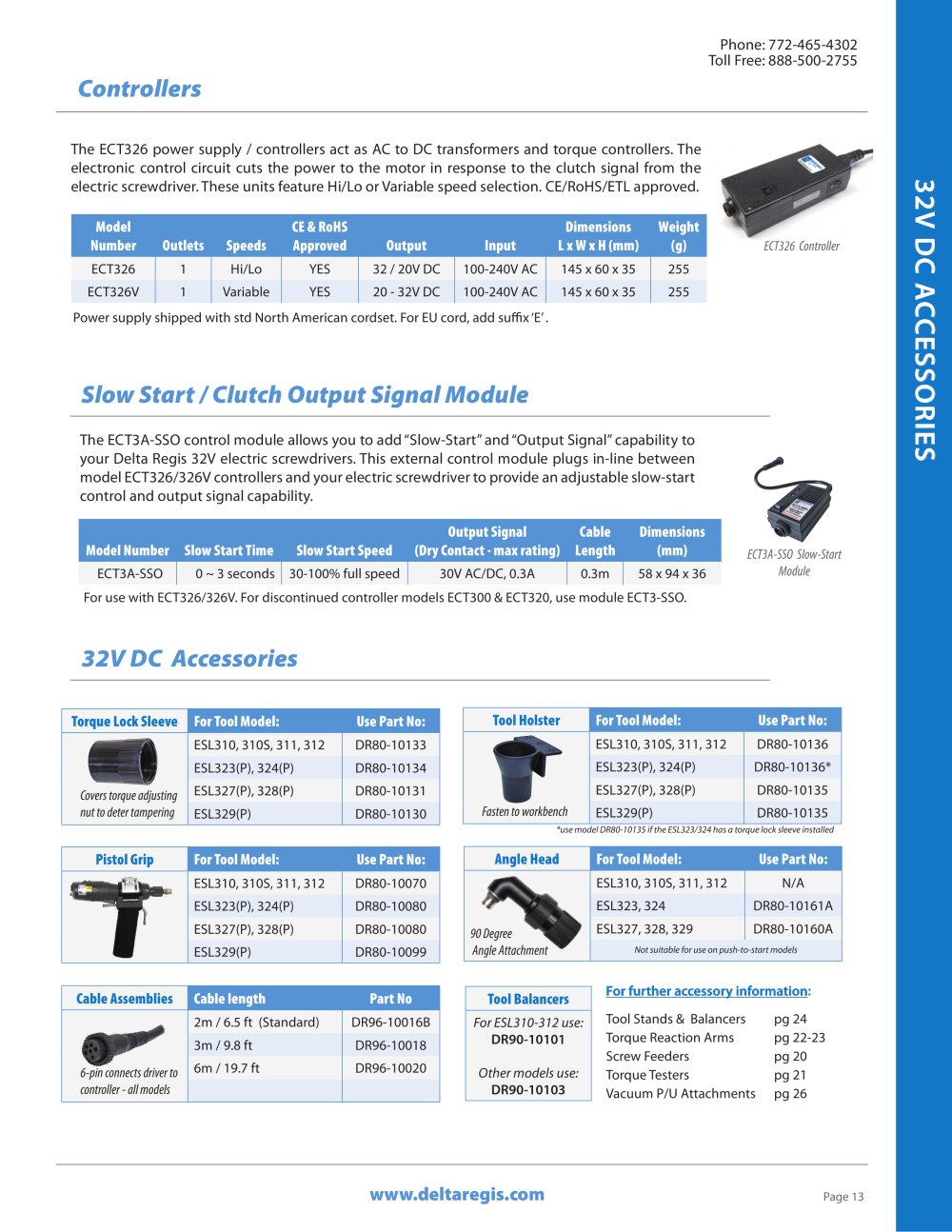

Controllers32V DC ACCESSORIES www.deltaregis.com Phone: 772-465-4302 Toll Free: 888-500-2755 Model Number Outlets Speeds CE & RoHS Approved Output Input Dimensions L x W x H (mm) Weight (g) ECT326 1 Hi/Lo YES 32 / 20V DC 100-240V AC 145 x 60 x 35 255 ECT326V 1 Variable YES 20 - 32V DC 100-240V AC 145 x 60 x 35 255 The ECT326 power supply / controllers act as AC to DC transformers and torque controllers. The electronic control circuit cuts the power to the motor in response to the clutch signal from the electric screwdriver. These units feature Hi/Lo or Variable speed selection. CE/RoHS/ETL approved. The ECT3A-SSO control module allows you to add “Slow-Start” and “Output Signal” capability to your Delta Regis 32V electric screwdrivers. This external control module plugs in-line between model ECT326/326V controllers and your electric screwdriver to provide an adjustable slow-start control and output signal capability. Model Number Slow Start Time Slow Start Speed Output Signal (Dry Contact - max rating) Cable Length Dimensions (mm) ECT3A-SSO 0 ~ 3 seconds 30-100% full speed 30V AC/DC, 0.3A 0.3m 58 x 94 x 36 ECT3A-SSO Slow-Start Module 32V DC Accessories Torque Lock Sleeve For Tool Model: Use Part No: Covers torque adjusting nut to deter tampering ESL310, 310S, 311, 312 DR80-10133 ESL323(P), 324(P) DR80-10134 ESL327(P), 328(P) DR80-10131 ESL329(P) DR80-10130 Angle Head For Tool Model: Use Part No: 90 Degree Angle Attachment ESL310, 310S, 311, 312 N/A ESL323, 324 DR80-10161A ESL327, 328, 329 DR80-10160A Not suitable for use on push-to-start models Tool Holster For Tool Model: Use Part No: Fasten to workbench ESL310, 310S, 311, 312 DR80-10136 ESL323(P), 324(P) DR80-10136* ESL327(P), 328(P) DR80-10135 ESL329(P) DR80-10135 Cable Assemblies Cable length Part No 6-pin connects driver to controller - all models 2m / 6.5 ft (Standard) DR96-10016B 3m / 9.8 ft DR96-10018 6m / 19.7 ft DR96-10020 *use model DR80-10135 if the ESL323/324 has a torque lock sleeve installed Pistol Grip For Tool Model: Use Part No: ESL310, 310S, 311, 312 DR80-10070 ESL323(P), 324(P) DR80-10080 ESL327(P), 328(P) DR80-10080 ESL329(P) DR80-10099For further accessory information: Tool Stands & Balancers pg 24 Torque Reaction Arms pg 22-23 Screw Feeders pg 20 Torque Testers pg 21 Vacuum P/U Attachments pg 26 Tool Balancers For ESL310-312 use: DR90-10101 Other models use: DR90-10103 Power supply shipped with std North American cordset. For EU cord, add suffix ‘E’ . For use with ECT326/326V. For discontinued controller models ECT300 & ECT320, use module ECT3-SSO. ECT326 Controller Slow Start / Clutch Output Signal Module Page 13
