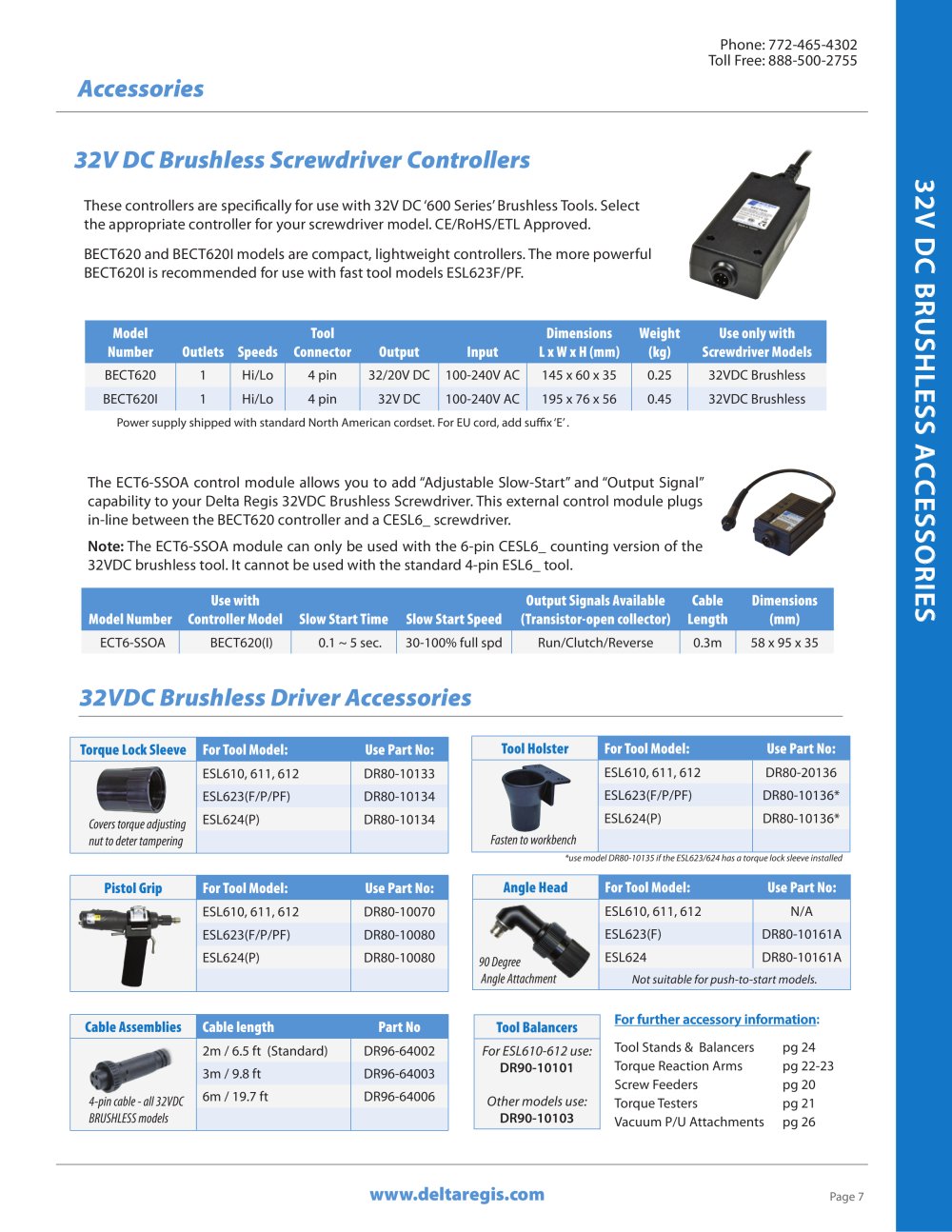

32V DC BRUSHLESS ACCESSORIES Accessories www.deltaregis.com Phone: 772-465-4302 Toll Free: 888-500-2755 Page 7 32VDC Brushless Driver Accessories These controllers are specifically for use with 32V DC ‘600 Series’ Brushless Tools. Select the appropriate controller for your screwdriver model. CE/RoHS/ETL Approved. BECT620 and BECT620I models are compact, lightweight controllers. The more powerful BECT620I is recommended for use with fast tool models ESL623F/PF. Model Number Outlets Speeds Tool Connector Output Input Dimensions L x W x H (mm) Weight (kg) Use only with Screwdriver Models BECT620 1 Hi/Lo 4 pin 32/20V DC 100-240V AC 145 x 60 x 35 0.25 32VDC Brushless BECT620I 1 Hi/Lo 4 pin 32V DC 100-240V AC 195 x 76 x 56 0.45 32VDC Brushless Power supply shipped with standard North American cordset. For EU cord, add suffix ‘E’ . 32V DC Brushless Screwdriver Controllers Torque Lock Sleeve For Tool Model: Use Part No: Covers torque adjusting nut to deter tampering ESL610, 611, 612 DR80-10133 ESL623(F/P/PF) DR80-10134 ESL624(P) DR80-10134 Angle Head For Tool Model: Use Part No: 90 Degree Angle Attachment ESL610, 611, 612 N/A ESL623(F) DR80-10161A ESL624 DR80-10161A Not suitable for push-to-start models. Tool Holster For Tool Model: Use Part No: Fasten to workbench ESL610, 611, 612 DR80-20136 ESL623(F/P/PF) DR80-10136* ESL624(P) DR80-10136* *use model DR80-10135 if the ESL623/624 has a torque lock sleeve installed Pistol Grip For Tool Model: Use Part No: ESL610, 611, 612 DR80-10070 ESL623(F/P/PF) DR80-10080 ESL624(P) DR80-10080For further accessory information: Tool Stands & Balancers pg 24 Torque Reaction Arms pg 22-23 Screw Feeders pg 20 Torque Testers pg 21 Vacuum P/U Attachments pg 26 Tool Balancers For ESL610-612 use: DR90-10101 Other models use: DR90-10103 Cable Assemblies Cable length Part No 4-pin cable - all 32VDC BRUSHLESS models 2m / 6.5 ft (Standard) DR96-64002 3m / 9.8 ft DR96-64003 6m / 19.7 ft DR96-64006 The ECT6-SSOA control module allows you to add “Adjustable Slow-Start” and “Output Signal” capability to your Delta Regis 32VDC Brushless Screwdriver. This external control module plugs in-line between the BECT620 controller and a CESL6_ screwdriver. Note: The ECT6-SSOA module can only be used with the 6-pin CESL6_ counting version of the 32VDC brushless tool. It cannot be used with the standard 4-pin ESL6_ tool. Model Number Use with Controller Model Slow Start Time Slow Start Speed Output Signals Available (Transistor-open collector) Cable Length Dimensions (mm) ECT6-SSOA BECT620(I) 0.1 ~ 5 sec. 30-100% full spd Run/Clutch/Reverse 0.3m 58 x 95 x 35
