| ASSEMBLY TOOLS TORQUE MEASUREMENT SYSTEMS | ||||||||||||||||||||||||||

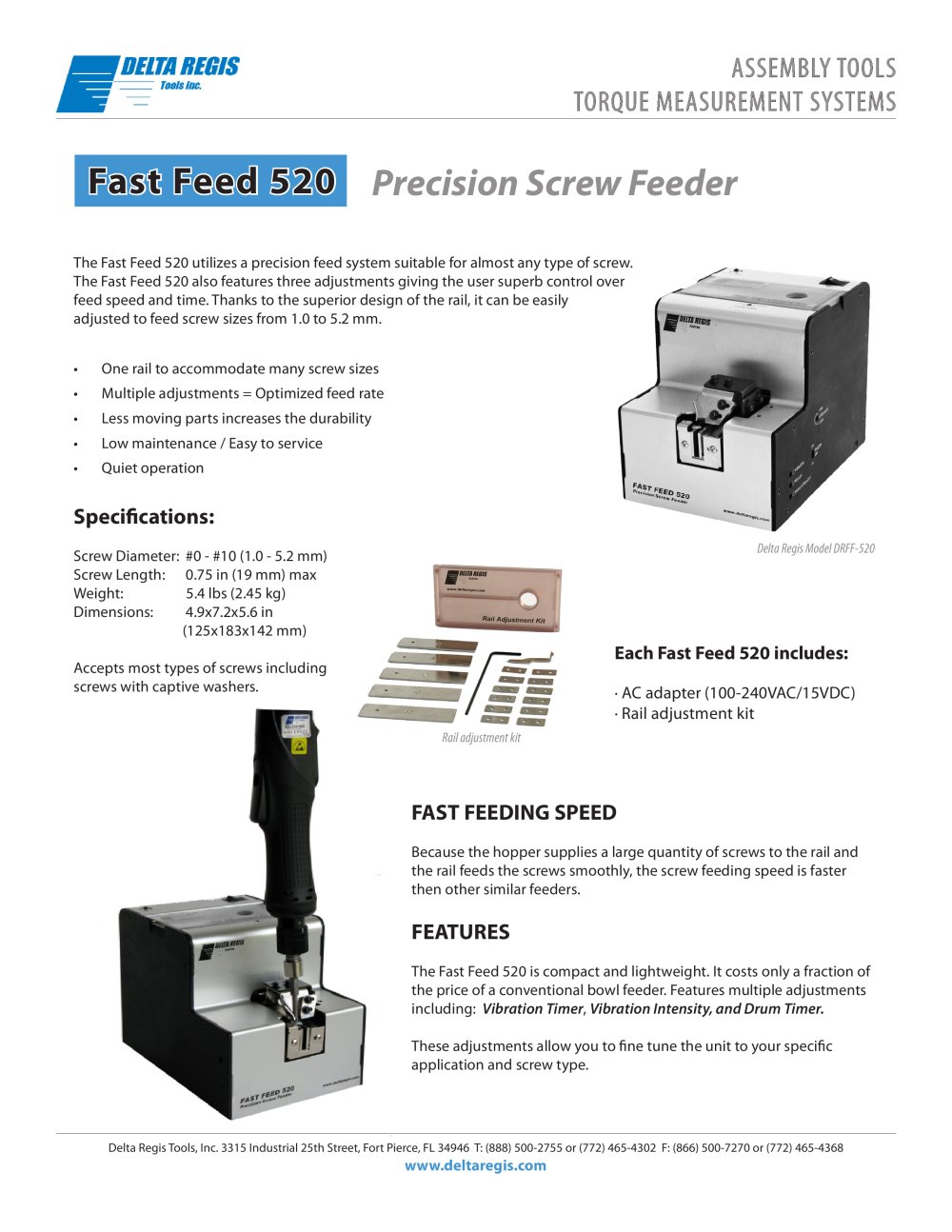

| Precision Screw Feeder | ||||||||||||||||||||||||||
| ast | ||||||||||||||||||||||||||
| The Fast Feed 520 utilizes a precision feed system suitable for almost any type of screw. The Fast Feed 520 also features three adjustments giving the user superb control over feed speed and time. Thanks to the superior design of the rail, it can be easily * adjusted to feed screw sizes from 1.0 to 5.2 mm. | ||||||||||||||||||||||||||
| One rail to accommodate many screw sizes Multiple adjustments = Optimized feed rate Less moving parts increases the durability Low maintenance / Easy to service Quiet operation | ||||||||||||||||||||||||||
| Specifications: | ||||||||||||||||||||||||||
| Delta Regis Model DRFF-520 | ||||||||||||||||||||||||||
| Screw Diameter: #0 - #10 (1.0 - 5.2 mm) Screw Length: 0.75 in (19 mm) max Weight: 5.4 lbs (2.45 kg) Dimensions: 4.9x7.2x5.6 in (125x183x142 mm) Accepts most types of screws including screws with captive washers. | ||||||||||||||||||||||||||
| Each Fast Feed 520 includes: • AC adapter (100-240VAC/15VDC) • Rail adjustment kit | ||||||||||||||||||||||||||
| Rail adjustment kit | ||||||||||||||||||||||||||
| FAST FEEDING SPEED Because the hopper supplies a large quantity of screws to the rail and the rail feeds the screws smoothly, the screw feeding speed is faster then other similar feeders. FEATURES The Fast Feed 520 is compact and lightweight. It costs only a fraction of the price of a conventional bowl feeder. Features multiple adjustments including: Vibration Timer, Vibration Intensity, and Drum Timer. These adjustments allow you to fine tune the unit to your specific application and screw type. | ||||||||||||||||||||||||||
