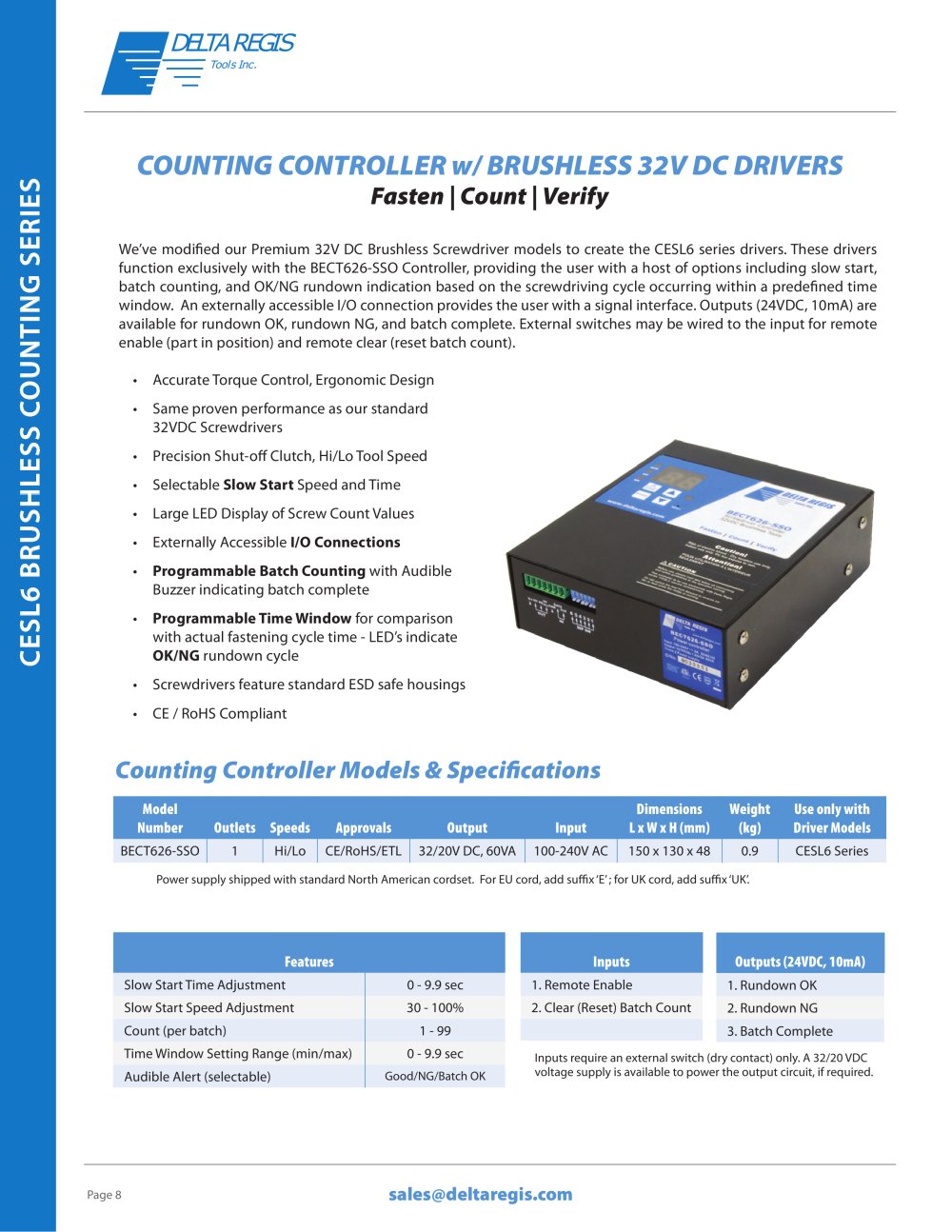

COUNTING CONTROLLER w/ BRUSHLESS 32V DC DRIVERS Fasten | Count | VerifyCESL6 BRUSHLESS COUNTING SERIES DELTA REGISTools Inc. sales@deltaregis.com We’ve modified our Premium 32V DC Brushless Screwdriver models to create the CESL6 series drivers. These drivers function exclusively with the BECT626-SSO Controller, providing the user with a host of options including slow start, batch counting, and OK/NG rundown indication based on the screwdriving cycle occurring within a predefined time window. An externally accessible I/O connection provides the user with a signal interface. Outputs (24VDC, 10mA) are available for rundown OK, rundown NG, and batch complete. External switches may be wired to the input for remote enable (part in position) and remote clear (reset batch count). • Accurate Torque Control, Ergonomic Design • Same proven performance as our standard 32VDC Screwdrivers • Precision Shut-off Clutch, Hi/Lo Tool Speed • Selectable Slow Start Speed and Time • Large LED Display of Screw Count Values • Externally Accessible I/O Connections • Programmable Batch Counting with Audible Buzzer indicating batch complete • Programmable Time Window for comparison with actual fastening cycle time - LED’s indicate OK/NG rundown cycle • Screwdrivers feature standard ESD safe housings • CE / RoHS Compliant Model Number Outlets Speeds Approvals Output Input Dimensions L x W x H (mm) Weight (kg) Use only with Driver Models BECT626-SSO 1 Hi/Lo CE/RoHS/ETL 32/20V DC, 60VA 100-240V AC 150 x 130 x 48 0.9 CESL6 Series Power supply shipped with standard North American cordset. For EU cord, add suffix ‘E’ ; for UK cord, add suffix ‘UK’. Counting Controller Models & Specifications Page 8 Features Slow Start Time Adjustment 0 - 9.9 sec Slow Start Speed Adjustment 30 - 100% Count (per batch) 1 - 99 Time Window Setting Range (min/max) 0 - 9.9 sec Audible Alert (selectable) Good/NG/Batch OK Inputs 1. Remote Enable 2. Clear (Reset) Batch Count Outputs (24VDC, 10mA) 1. Rundown OK 2. Rundown NG 3. Batch Complete Inputs require an external switch (dry contact) only. A 32/20 VDC voltage supply is available to power the output circuit, if required.
