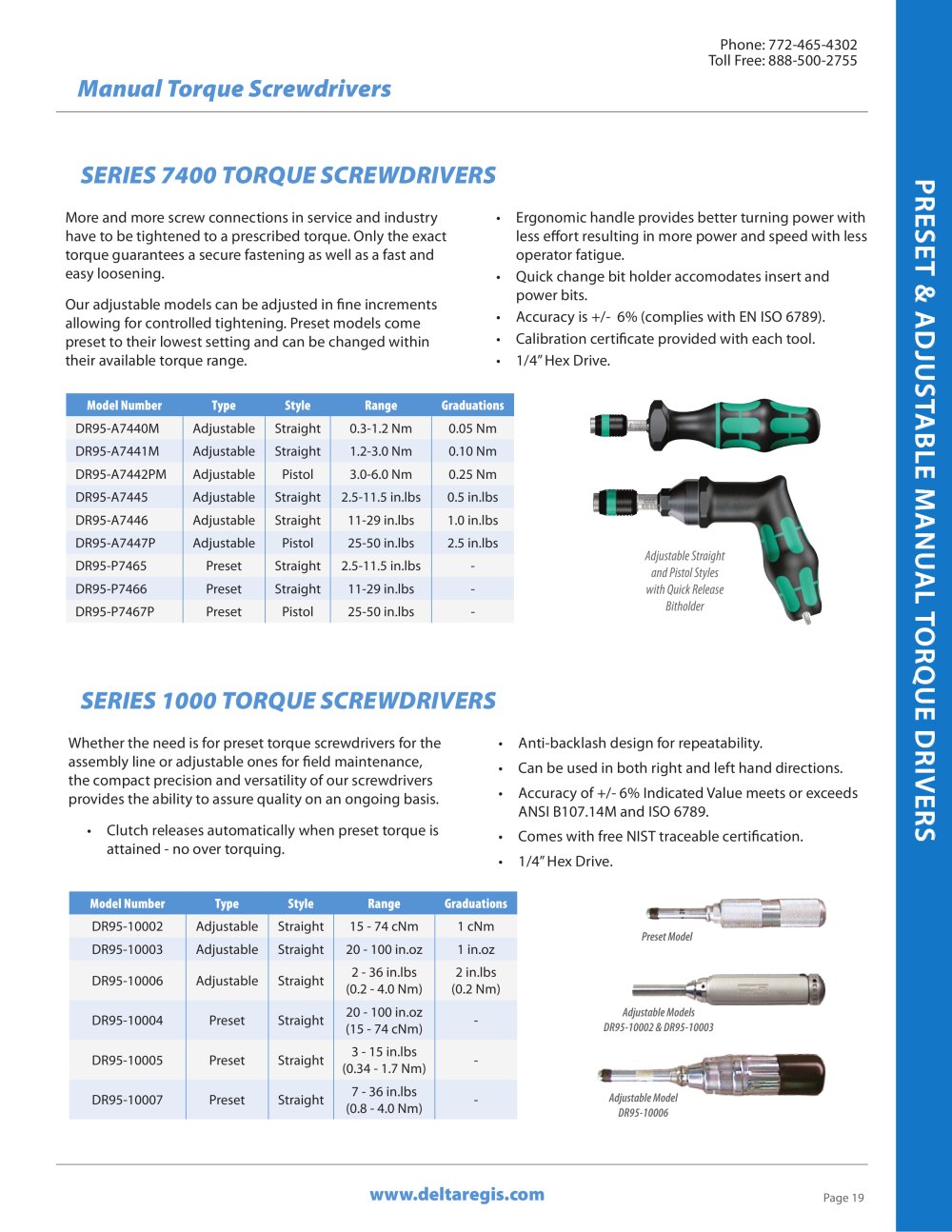

Manual Torque Screwdrivers SERIES 1000 TORQUE SCREWDRIVERSPRESET & ADJUSTABLE MANUAL TORQUE DRIVERS www.deltaregis.com Phone: 772-465-4302 Toll Free: 888-500-2755 Adjustable Straight and Pistol Styles with Quick Release Bitholder Whether the need is for preset torque screwdrivers for the assembly line or adjustable ones for field maintenance, the compact precision and versatility of our screwdrivers provides the ability to assure quality on an ongoing basis. • Clutch releases automatically when preset torque is attained - no over torquing. • Anti-backlash design for repeatability. • Can be used in both right and left hand directions. • Accuracy of +/- 6% Indicated Value meets or exceeds ANSI B107.14M and ISO 6789. • Comes with free NIST traceable certification. • 1/4” Hex Drive. Model Number Type Style Range Graduations DR95-10002 Adjustable Straight 15 - 74 cNm 1 cNm DR95-10003 Adjustable Straight 20 - 100 in.oz 1 in.oz DR95-10006 Adjustable Straight 2 - 36 in.lbs (0.2 - 4.0 Nm) 2 in.lbs (0.2 Nm) DR95-10004 Preset Straight 20 - 100 in.oz (15 - 74 cNm) - DR95-10005 Preset Straight 3 - 15 in.lbs (0.34 - 1.7 Nm) - DR95-10007 Preset Straight 7 - 36 in.lbs (0.8 - 4.0 Nm) - Preset Model Adjustable Model DR95-10006 Adjustable Models DR95-10002 & DR95-10003 Model Number Type Style Range Graduations DR95-A7440M Adjustable Straight 0.3-1.2 Nm 0.05 Nm DR95-A7441M Adjustable Straight 1.2-3.0 Nm 0.10 Nm DR95-A7442PM Adjustable Pistol 3.0-6.0 Nm 0.25 Nm DR95-A7445 Adjustable Straight 2.5-11.5 in.lbs 0.5 in.lbs DR95-A7446 Adjustable Straight 11-29 in.lbs 1.0 in.lbs DR95-A7447P Adjustable Pistol 25-50 in.lbs 2.5 in.lbs DR95-P7465 Preset Straight 2.5-11.5 in.lbs - DR95-P7466 Preset Straight 11-29 in.lbs - DR95-P7467P Preset Pistol 25-50 in.lbs - More and more screw connections in service and industry have to be tightened to a prescribed torque. Only the exact torque guarantees a secure fastening as well as a fast and easy loosening. Our adjustable models can be adjusted in fine increments allowing for controlled tightening. Preset models come preset to their lowest setting and can be changed within their available torque range. • Ergonomic handle provides better turning power with less effort resulting in more power and speed with less operator fatigue. • Quick change bit holder accomodates insert and power bits. • Accuracy is +/- 6% (complies with EN ISO 6789). • Calibration certificate provided with each tool. • 1/4” Hex Drive. SERIES 7400 TORQUE SCREWDRIVERS Page 19
