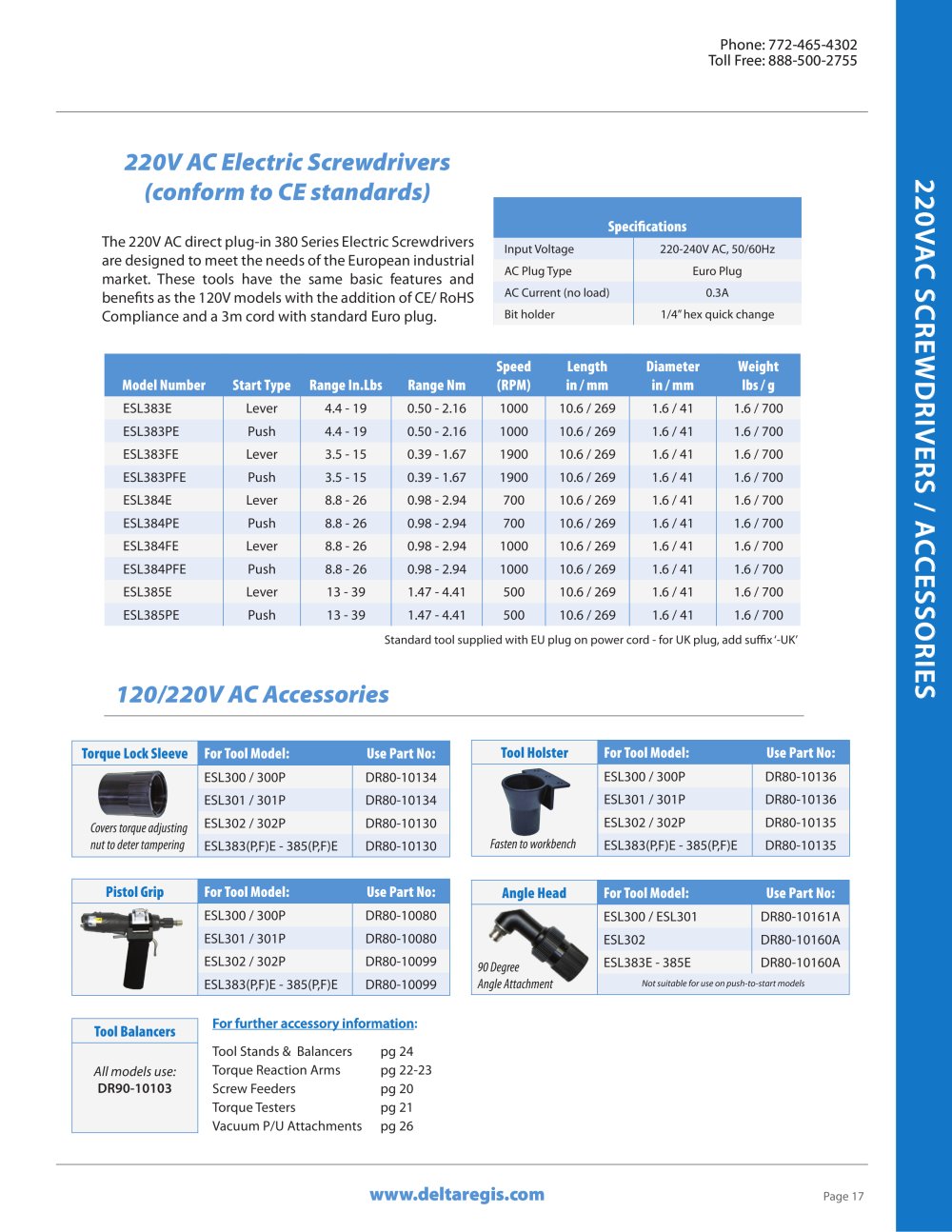

120VAC ACCESSORIES www.deltaregis.com Phone: 772-465-4302 Toll Free: 888-500-2755 Page 17220VAC SCREWDRIVERS / ACCESSORIES Model Number Start Type Range In.Lbs Range Nm Speed (RPM) Length in / mm Diameter in / mm Weight lbs / g ESL383E Lever 4.4 - 19 0.50 - 2.16 1000 10.6 / 269 1.6 / 41 1.6 / 700 ESL383PE Push 4.4 - 19 0.50 - 2.16 1000 10.6 / 269 1.6 / 41 1.6 / 700 ESL383FE Lever 3.5 - 15 0.39 - 1.67 1900 10.6 / 269 1.6 / 41 1.6 / 700 ESL383PFE Push 3.5 - 15 0.39 - 1.67 1900 10.6 / 269 1.6 / 41 1.6 / 700 ESL384E Lever 8.8 - 26 0.98 - 2.94 700 10.6 / 269 1.6 / 41 1.6 / 700 ESL384PE Push 8.8 - 26 0.98 - 2.94 700 10.6 / 269 1.6 / 41 1.6 / 700 ESL384FE Lever 8.8 - 26 0.98 - 2.94 1000 10.6 / 269 1.6 / 41 1.6 / 700 ESL384PFE Push 8.8 - 26 0.98 - 2.94 1000 10.6 / 269 1.6 / 41 1.6 / 700 ESL385E Lever 13 - 39 1.47 - 4.41 500 10.6 / 269 1.6 / 41 1.6 / 700 ESL385PE Push 13 - 39 1.47 - 4.41 500 10.6 / 269 1.6 / 41 1.6 / 700 Specifications Input Voltage 220-240V AC, 50/60Hz AC Plug Type Euro Plug AC Current (no load) 0.3A Bit holder 1/4” hex quick change 220V AC Electric Screwdrivers (conform to CE standards) Tool Holster For Tool Model: Use Part No: Fasten to workbench ESL300 / 300P DR80-10136 ESL301 / 301P DR80-10136 ESL302 / 302P DR80-10135 ESL383(P,F)E - 385(P,F)E DR80-10135 Angle Head For Tool Model: Use Part No: 90 Degree Angle Attachment ESL300 / ESL301 DR80-10161A ESL302 DR80-10160A ESL383E - 385E DR80-10160A Not suitable for use on push-to-start models Pistol Grip For Tool Model: Use Part No: ESL300 / 300P DR80-10080 ESL301 / 301P DR80-10080 ESL302 / 302P DR80-10099 ESL383(P,F)E - 385(P,F)E DR80-10099For further accessory information: Tool Stands & Balancers pg 24 Torque Reaction Arms pg 22-23 Screw Feeders pg 20 Torque Testers pg 21 Vacuum P/U Attachments pg 26 Tool Balancers All models use: DR90-10103 120/220V AC Accessories The 220V AC direct plug-in 380 Series Electric Screwdrivers are designed to meet the needs of the European industrial market. These tools have the same basic features and benefits as the 120V models with the addition of CE/ RoHS Compliance and a 3m cord with standard Euro plug. Standard tool supplied with EU plug on power cord - for UK plug, add suffix ‘-UK’ Torque Lock Sleeve For Tool Model: Use Part No: Covers torque adjusting nut to deter tampering ESL300 / 300P DR80-10134 ESL301 / 301P DR80-10134 ESL302 / 302P DR80-10130 ESL383(P,F)E - 385(P,F)E DR80-10130
