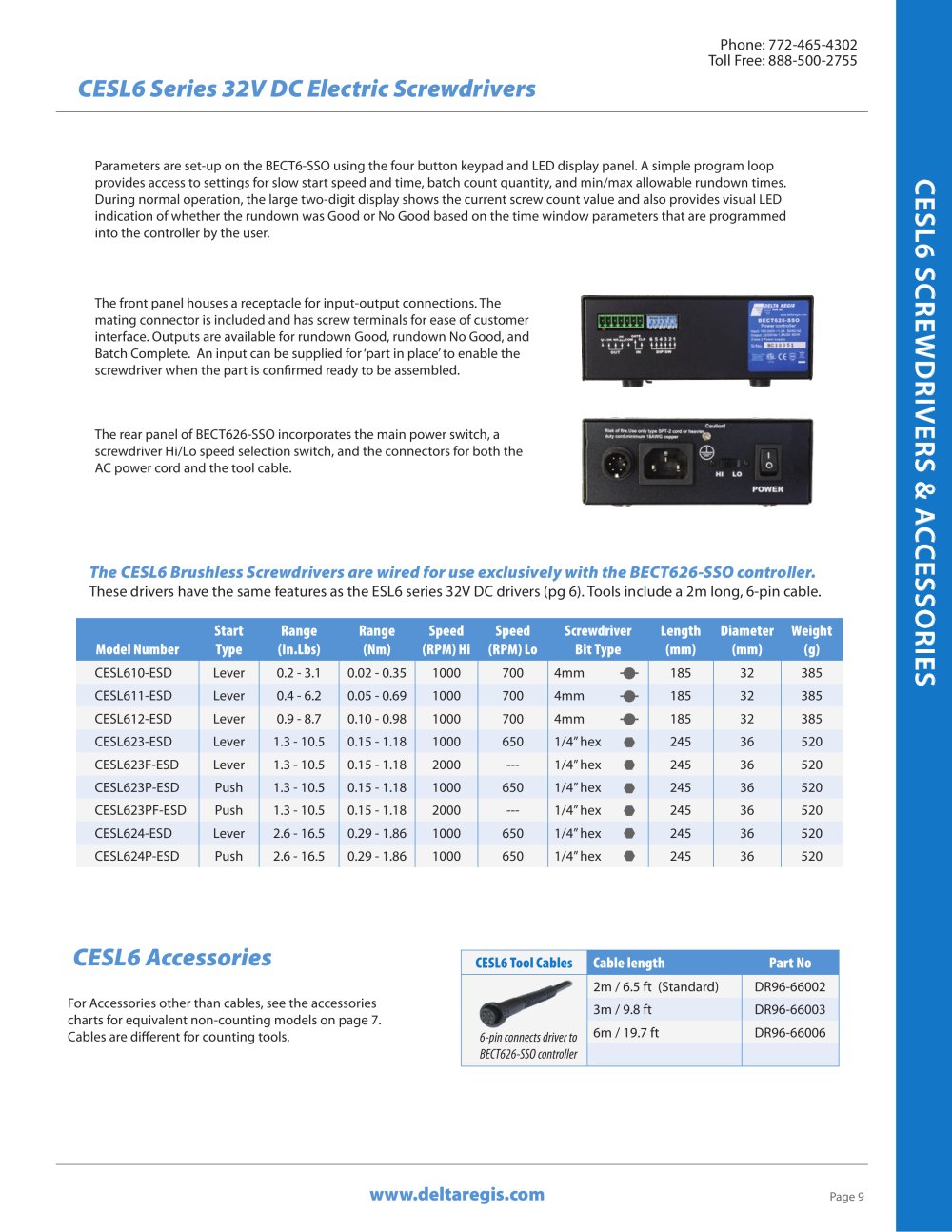

Model Number Start Type Range (In.Lbs) Range (Nm) Speed (RPM) Hi Speed (RPM) Lo Screwdriver Bit Type Length (mm) Diameter (mm) Weight (g) CESL610-ESD Lever 0.2 - 3.1 0.02 - 0.35 1000 700 4mm 185 32 385 CESL611-ESD Lever 0.4 - 6.2 0.05 - 0.69 1000 700 4mm 185 32 385 CESL612-ESD Lever 0.9 - 8.7 0.10 - 0.98 1000 700 4mm 185 32 385 CESL623-ESD Lever 1.3 - 10.5 0.15 - 1.18 1000 650 1/4” hex 245 36 520 CESL623F-ESD Lever 1.3 - 10.5 0.15 - 1.18 2000 --- 1/4” hex 245 36 520 CESL623P-ESD Push 1.3 - 10.5 0.15 - 1.18 1000 650 1/4” hex 245 36 520 CESL623PF-ESD Push 1.3 - 10.5 0.15 - 1.18 2000 --- 1/4” hex 245 36 520 CESL624-ESD Lever 2.6 - 16.5 0.29 - 1.86 1000 650 1/4” hex 245 36 520 CESL624P-ESD Push 2.6 - 16.5 0.29 - 1.86 1000 650 1/4” hex 245 36 520 CESL6 Series 32V DC Electric ScrewdriversCESL6 SCREWDRIVERS & ACCESSORIES www.deltaregis.com Phone: 772-465-4302 Toll Free: 888-500-2755 Page 9 CESL6 Accessories CESL6 Tool Cables Cable length Part No 6-pin connects driver to BECT626-SSO controller 2m / 6.5 ft (Standard) DR96-66002 3m / 9.8 ft DR96-66003 6m / 19.7 ft DR96-66006 For Accessories other than cables, see the accessories charts for equivalent non-counting models on page 7. Cables are different for counting tools. The CESL6 Brushless Screwdrivers are wired for use exclusively with the BECT626-SSO controller. These drivers have the same features as the ESL6 series 32V DC drivers (pg 6). Tools include a 2m long, 6-pin cable. The rear panel of BECT626-SSO incorporates the main power switch, a screwdriver Hi/Lo speed selection switch, and the connectors for both the AC power cord and the tool cable. The front panel houses a receptacle for input-output connections. The mating connector is included and has screw terminals for ease of customer interface. Outputs are available for rundown Good, rundown No Good, and Batch Complete. An input can be supplied for ‘part in place’ to enable the screwdriver when the part is confirmed ready to be assembled. Parameters are set-up on the BECT6-SSO using the four button keypad and LED display panel. A simple program loop provides access to settings for slow start speed and time, batch count quantity, and min/max allowable rundown times. During normal operation, the large two-digit display shows the current screw count value and also provides visual LED indication of whether the rundown was Good or No Good based on the time window parameters that are programmed into the controller by the user.
