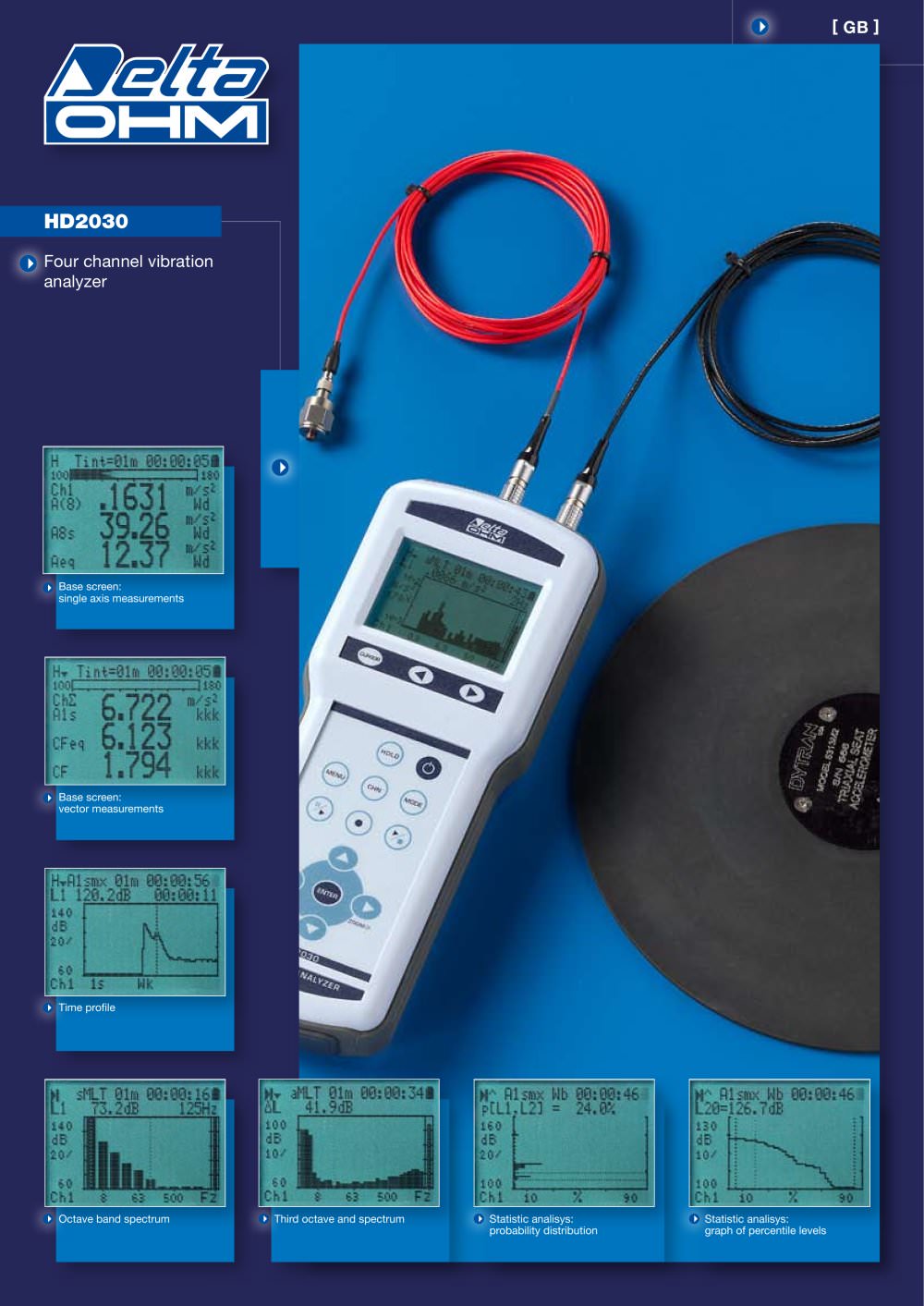

[ GB ] Statistic analisys: probability distribution Statistic analisys: graph of percentile levels Octave band spectrum Third octave and spectrum Time profile Base screen: vector measurements Base screen: single axis measurements HD2030 Four channel vibration analyzer
Open the catalog to page 1[ GB ] [ GB ] Four channel vibration analyzer HD2030 is a portable vibration analyzer performing spectral and statistical analysis on four channels simultaneously. The instrument measures all parameters required by current regulations concerning workers protection from vibration related risks and is able to measure vibrations transmitted to both hand-arm and whole body. Main features HD2030 has been designed combining maximum flexibility and easy of use with the possibility to update the instrument according to the evolution of regulations concerning vibrations. The user can directly update...
Open the catalog to page 2system through the seat of transport vehicles, vibrations transmitted to whole body system by vibrating floors or seats at the workplace, • vibrations transmitted to whole body system by buildings with vibrations or impacts. The HD2030 is a vibration analyzer suitable for the following applications: • Vibration spectral analysis by octave o third octave bands, • Statistic analysis with percentile calculation from L1 to L99, • Evaluation of vibration attenuation of anti-vibration gloves, seats and materials, Structural verification of buildings. Technical standards HD2030 vibration analyzer...
Open the catalog to page 3• Output bias voltage 10VDC • Mechanical specifications Weight: 4gr Dimensions: (height x width x depth) 12.5mm x 9.15mm x 9.15mm Mounting: 10-32 tapped hole in base (screw included) Connector: lateral 4 pin SMA type Material: titanium alloy Isolation: case grounded Model HD5313M2 • Type: Low profile tri-axial accelerometer, with integrated electronics (LIVMTM), contained within a rubber circular pad • Sensitivity 100mV/g • Maximum vibration ±50g • Frequency response 0.5 Hz ÷ 3 kHz (-5% / +5%) • Resonant frequency 25 kHz • Linearity 1% F.S. • Transverse sensitivity 5% max • Maximum shock...
Open the catalog to page 4• Linearity 2% F.S. • Transverse sensitivity 5% max • Maximum shock 2000g • Temperature range -50°C ÷ 120°C • Thermal sensitivity 0.12%/°C • Output bias voltage 9VDC ÷ 12VDC • Mechanical specifications Weight: 10gr Dimensions: (hex x height) 12.7mm(0.5”) x 23.1mm Mounting: 10-32 x 3.8mm deep with tapped hole in base (screw included) Connector: top mounted micro-coaxial 10-32 UNF-2A Material: titanium alloy Isolation case to ground: 10Mohm minimum Model HD3200B5T • Type: Accelerometer with integrated electronics (LIVMTM) • Sensitivity 1mV/g • Maximum vibration ±5000g • Frequency response 0.5...
Open the catalog to page 5HD6202: double threaded mounting screw 10-32 UNF-2A and M5 X 0.8 HD6203: double threaded mounting screw 10-32 UNF-2A and M6 X 1 HD6239: vibration probe. HD6286: Adhesive mounting plate for magnets. Used for accelerometer mounting on non-metallic surfaces. HD6284: Insulated magnetic base HD6226: Adesive mounting base. Tapped hole 10-32 UNF HD6245: Insulated adhesive mounting base, integrated screw 10-32 UNF HD6220: Ground isolation stud, 10-32 UNF-2A tapped hole for accelerometer fastening and 10-32 UNF-2A stud. HD2030AC3: adapter to be held between the hand and the handle. The accelerometer...
Open the catalog to page 6Delta Ohm srl - Via G. Marconi, 5 - 35030 Caselle di Selvazzano (Pd) - Italy Tel. 0039 0498977150 r.a. Fax 0039 049635596 - E-mail: deltaohm@tin.it Web Site: www.deltaohm.com RoHS 2002/95/EC 01 09.08 Manufacture of portable and bench top instruments Current and voltage loop transmitters Temperature - Humidity - Pressure Air speed - Light - Acoustics pH - Conductivity - Dissolved Oxygen - Turbidity Elements for weather stations - Thermal Microclimate SIT CENTRE N°124 Temperature - Humidity - Pressure - Air speed Photometry/Radiometry - Acoustics CE CONFORMITY • Safety: EN61000-4-2, EN61010-1...
